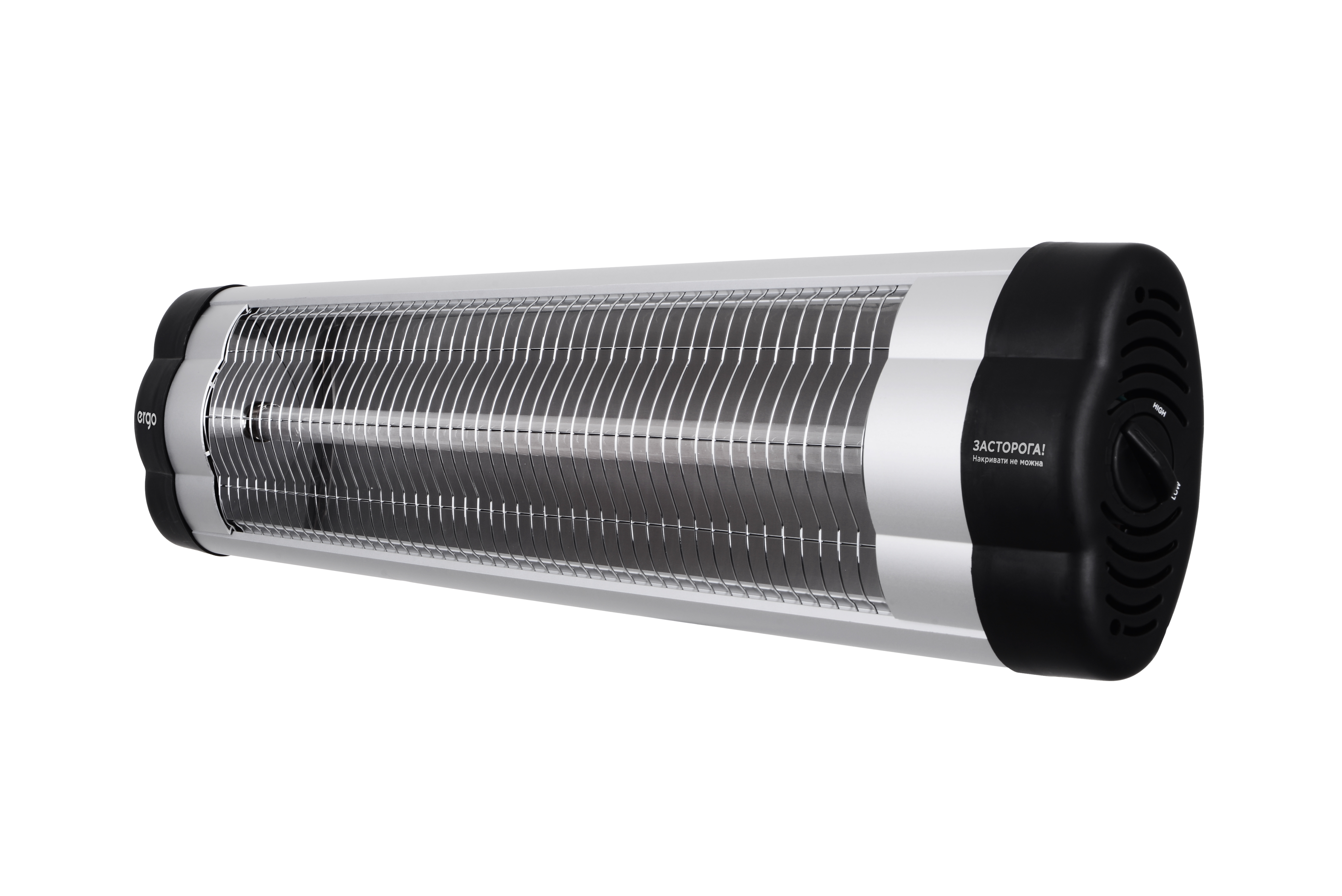

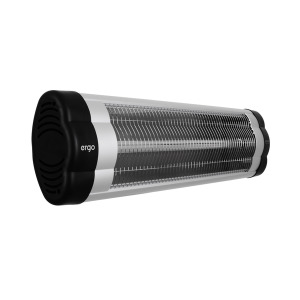

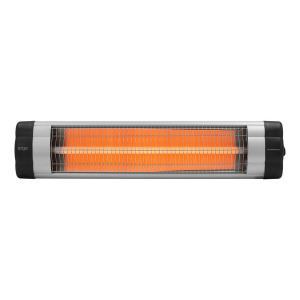

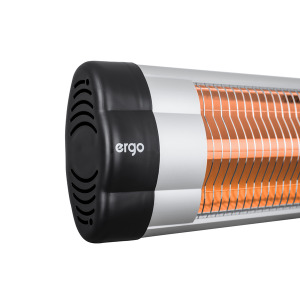

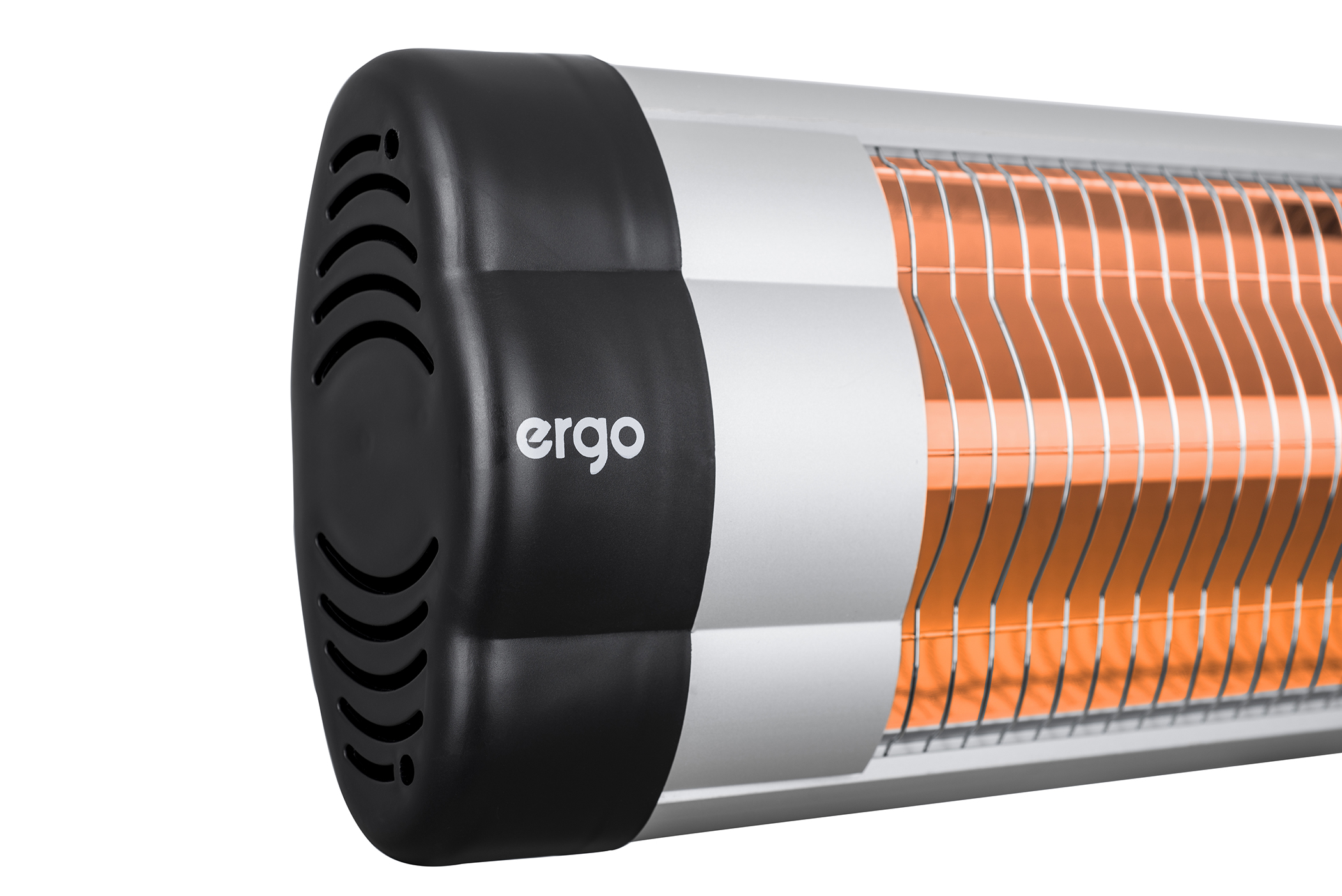

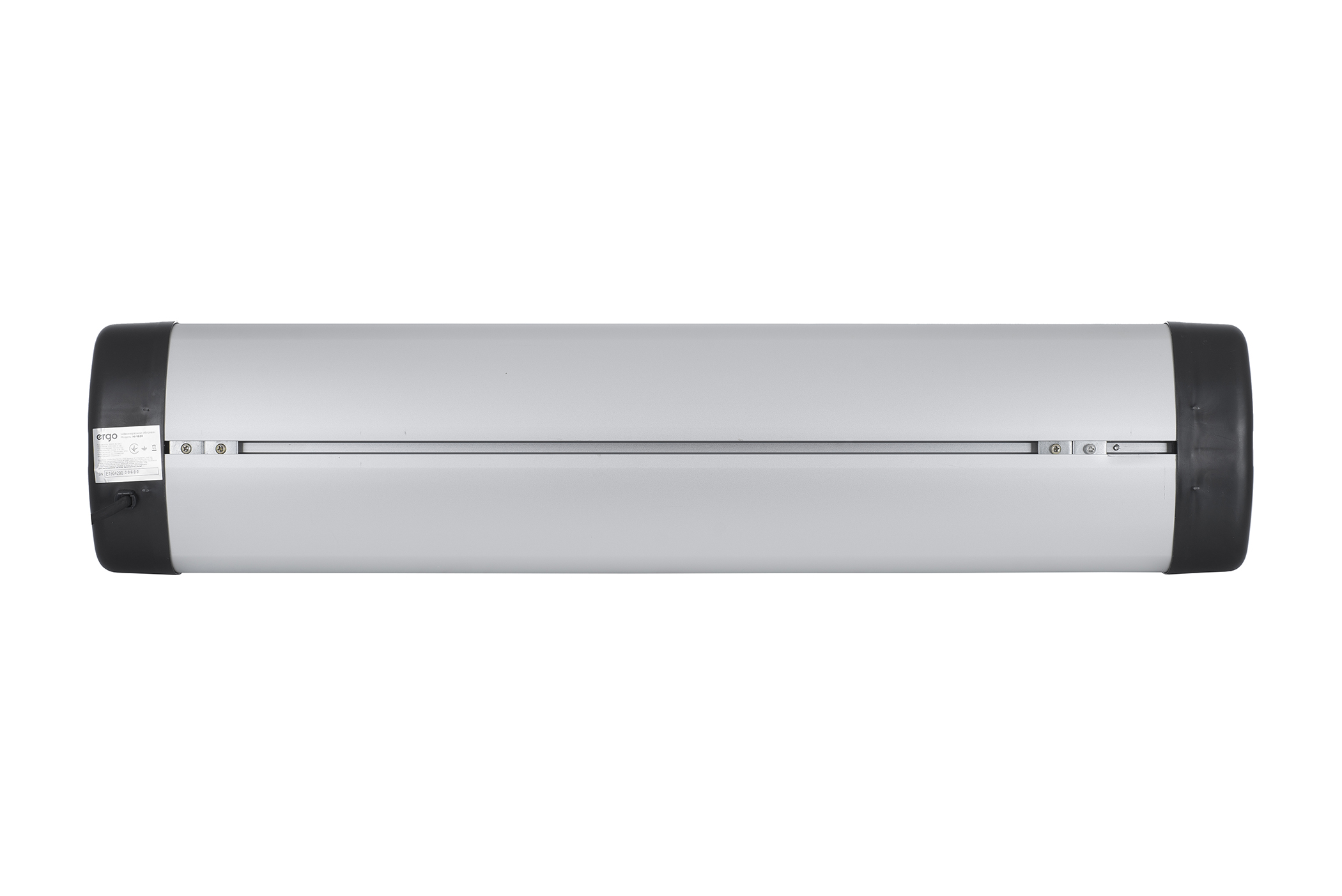

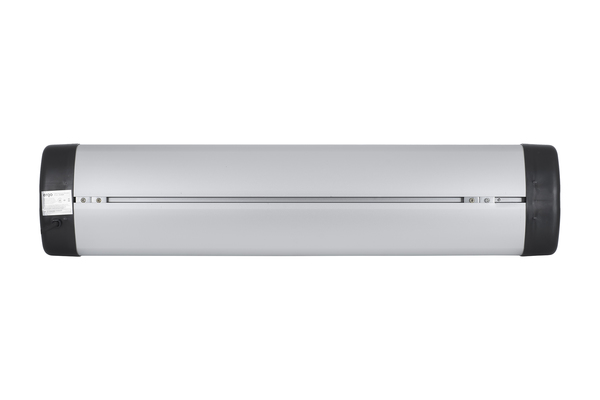

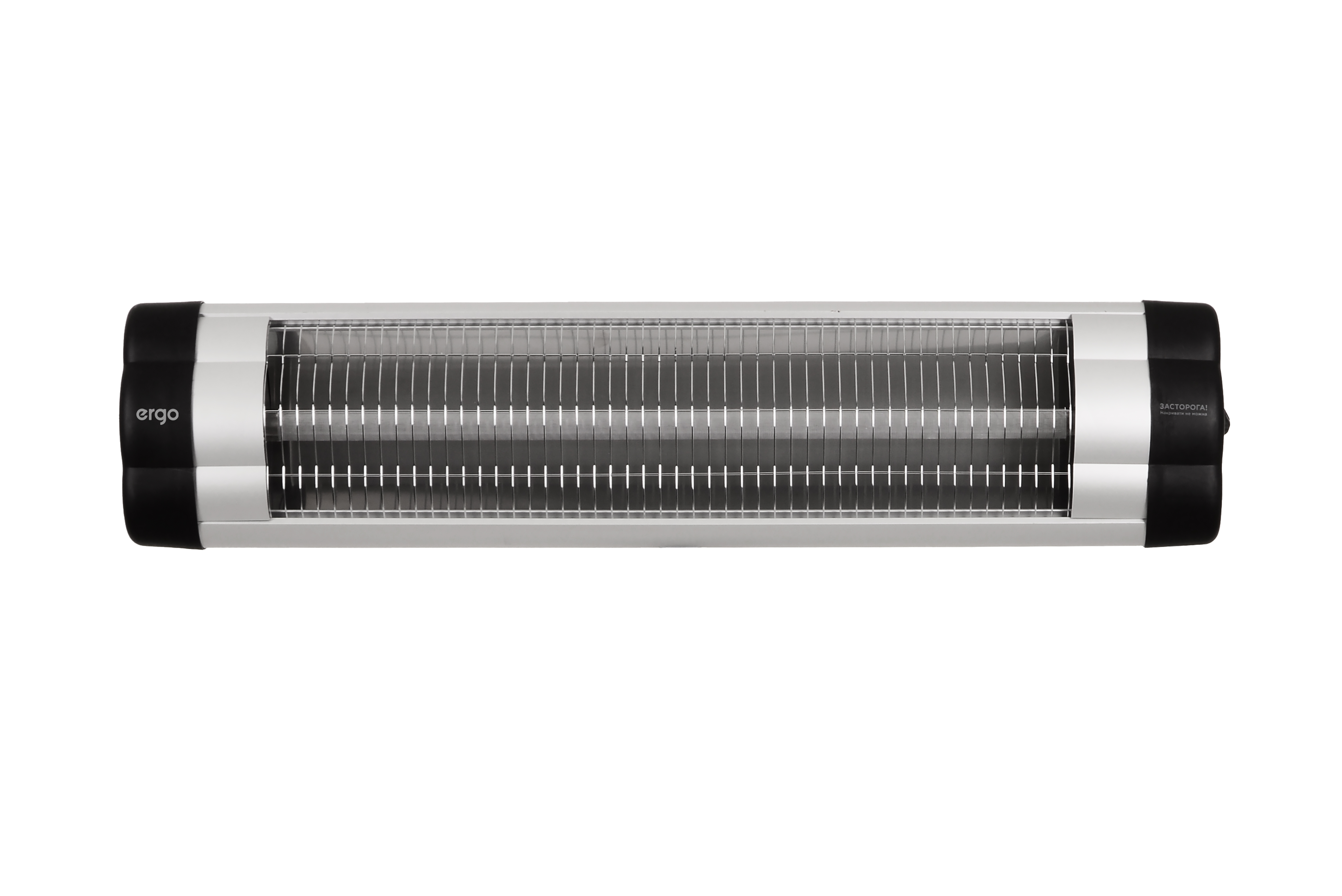

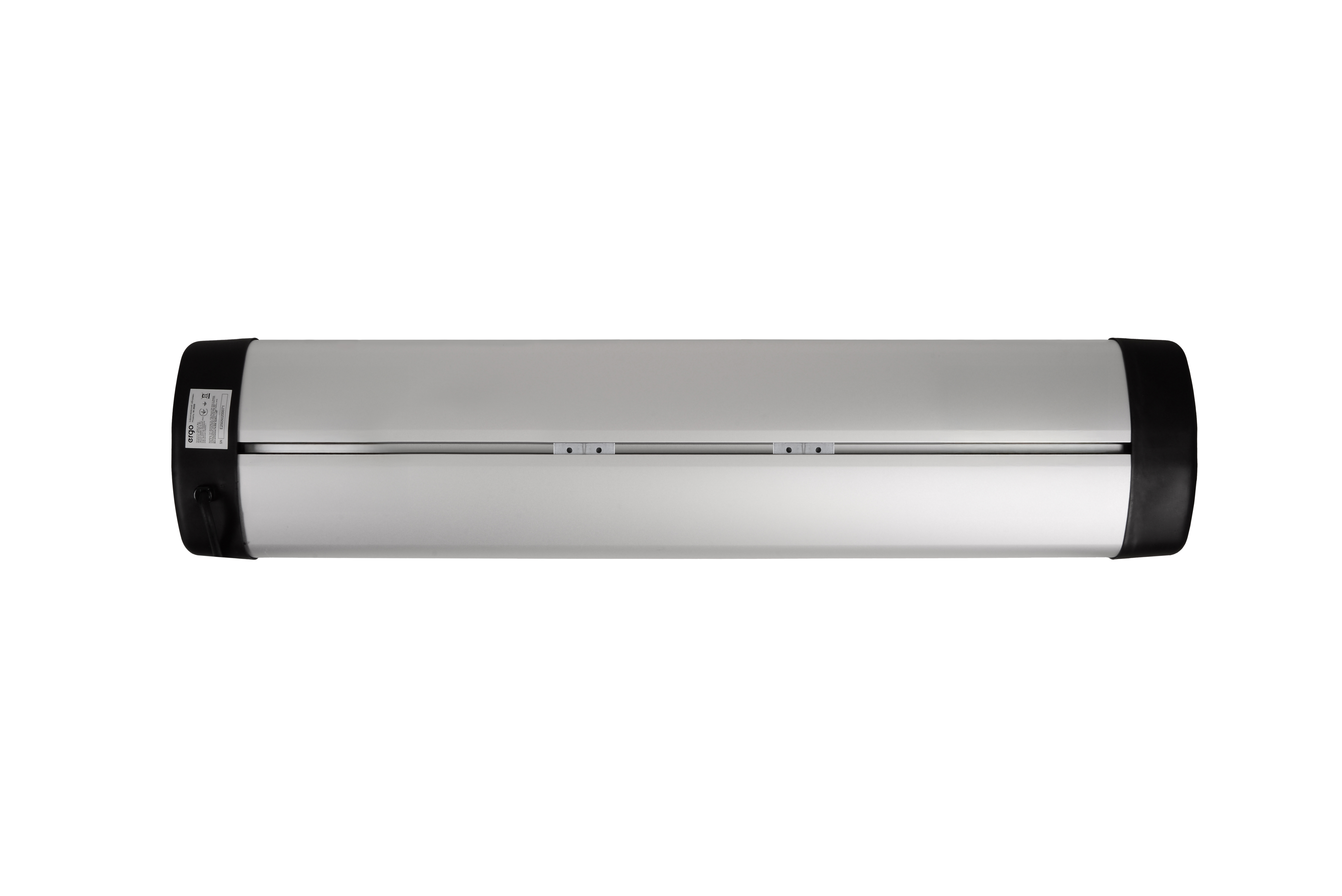

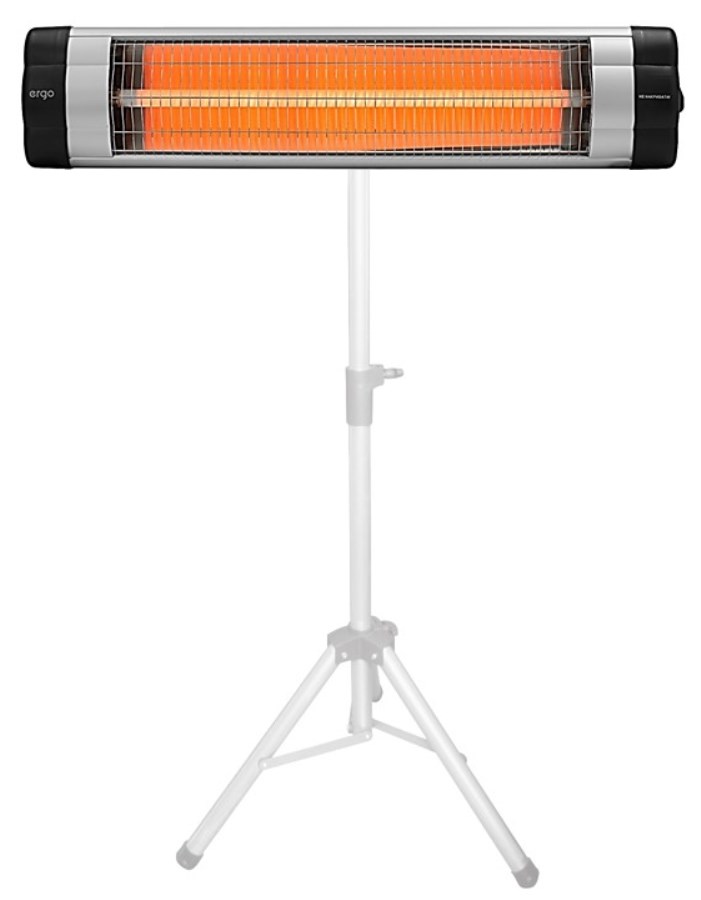

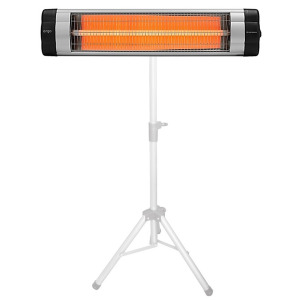

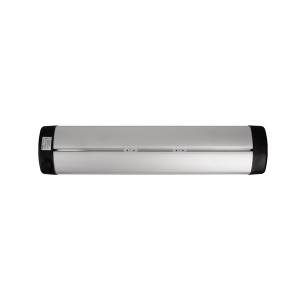

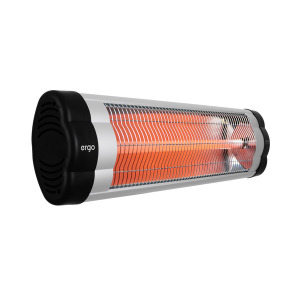

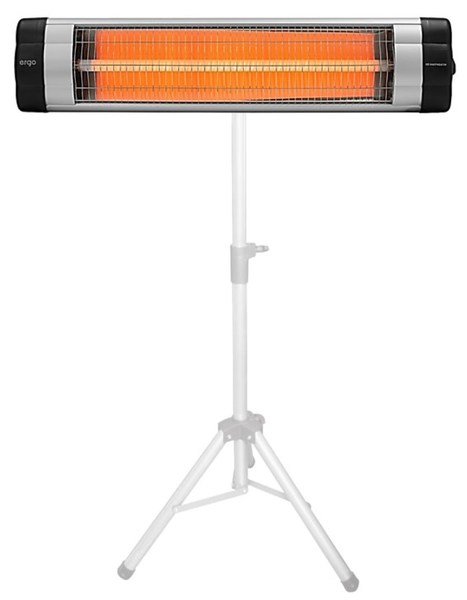

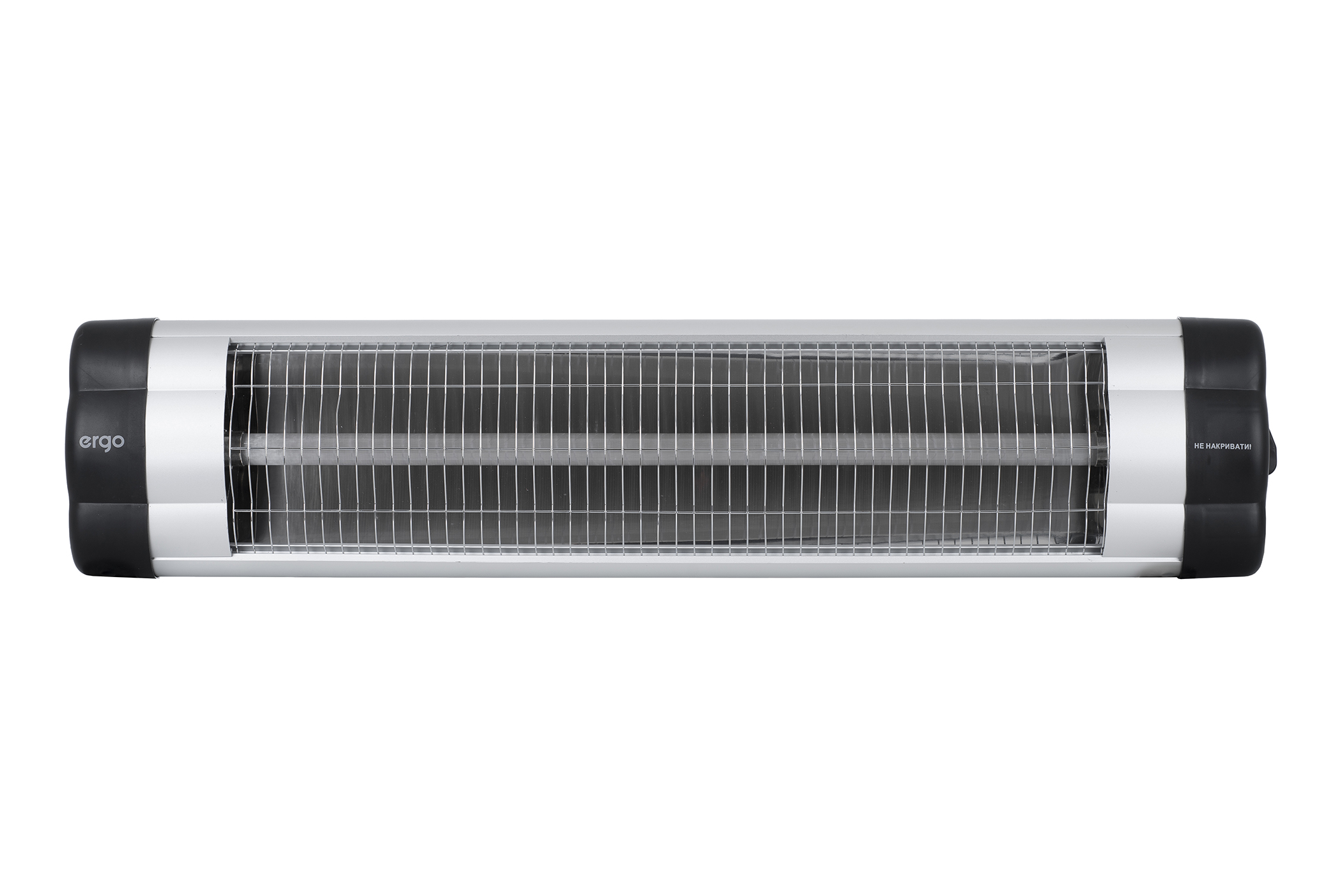

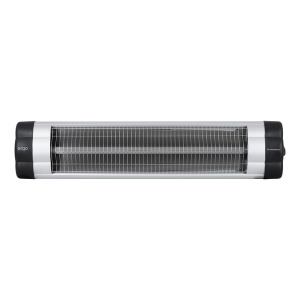

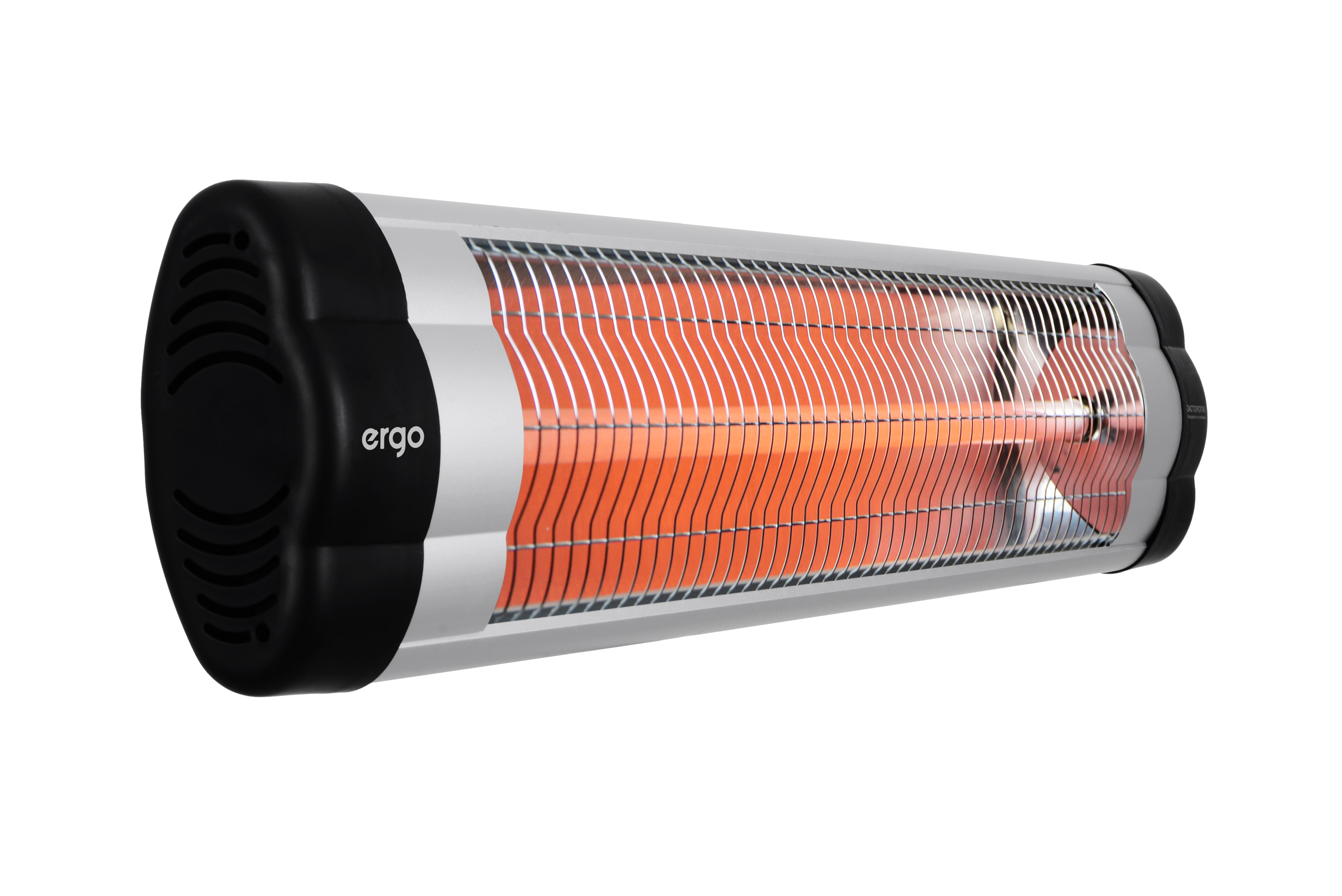

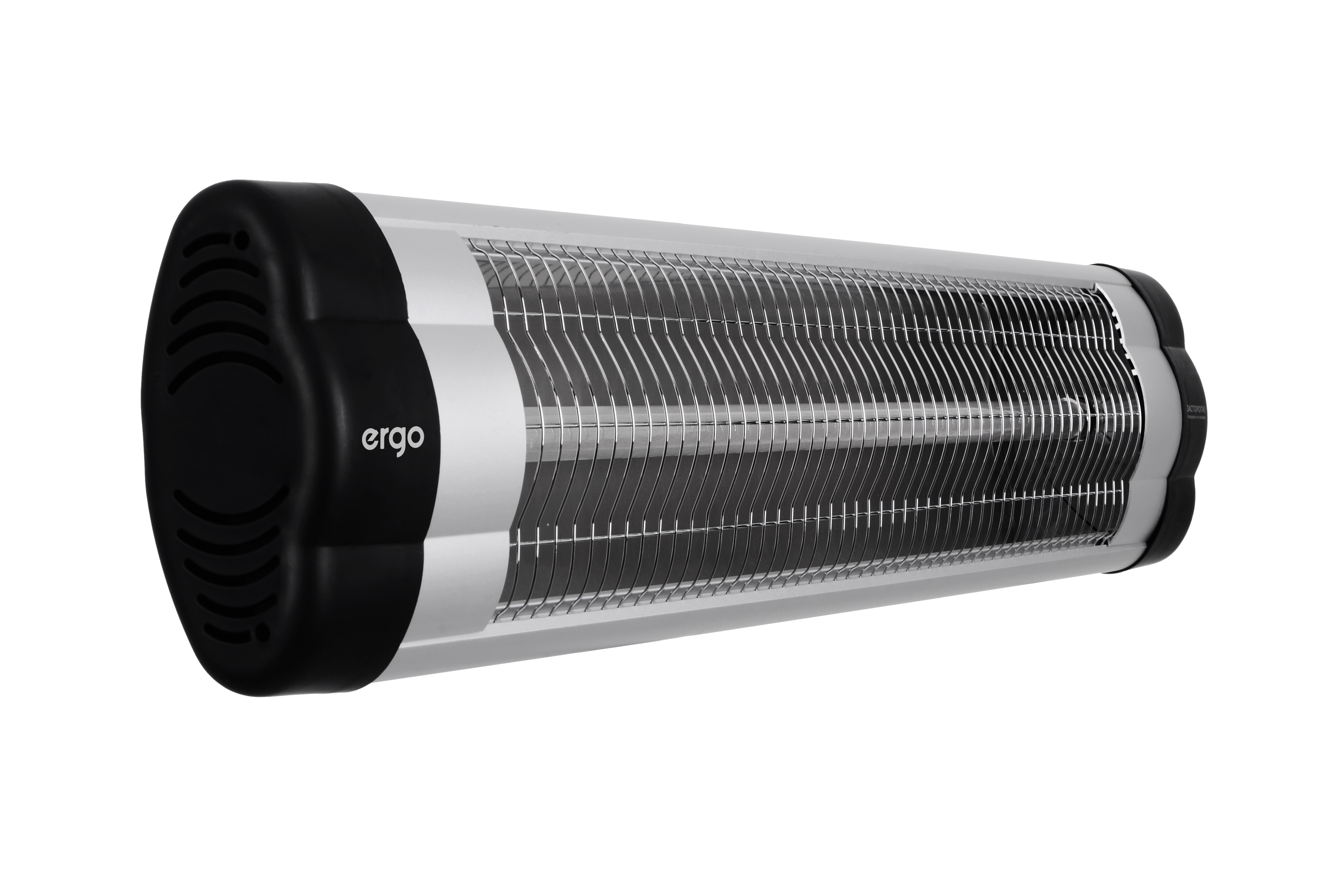

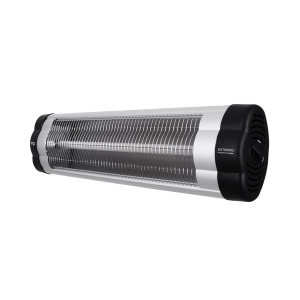

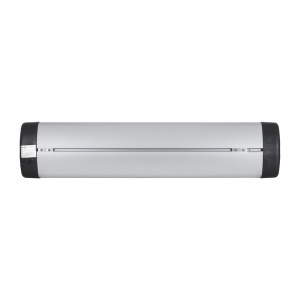

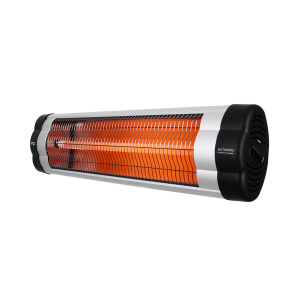

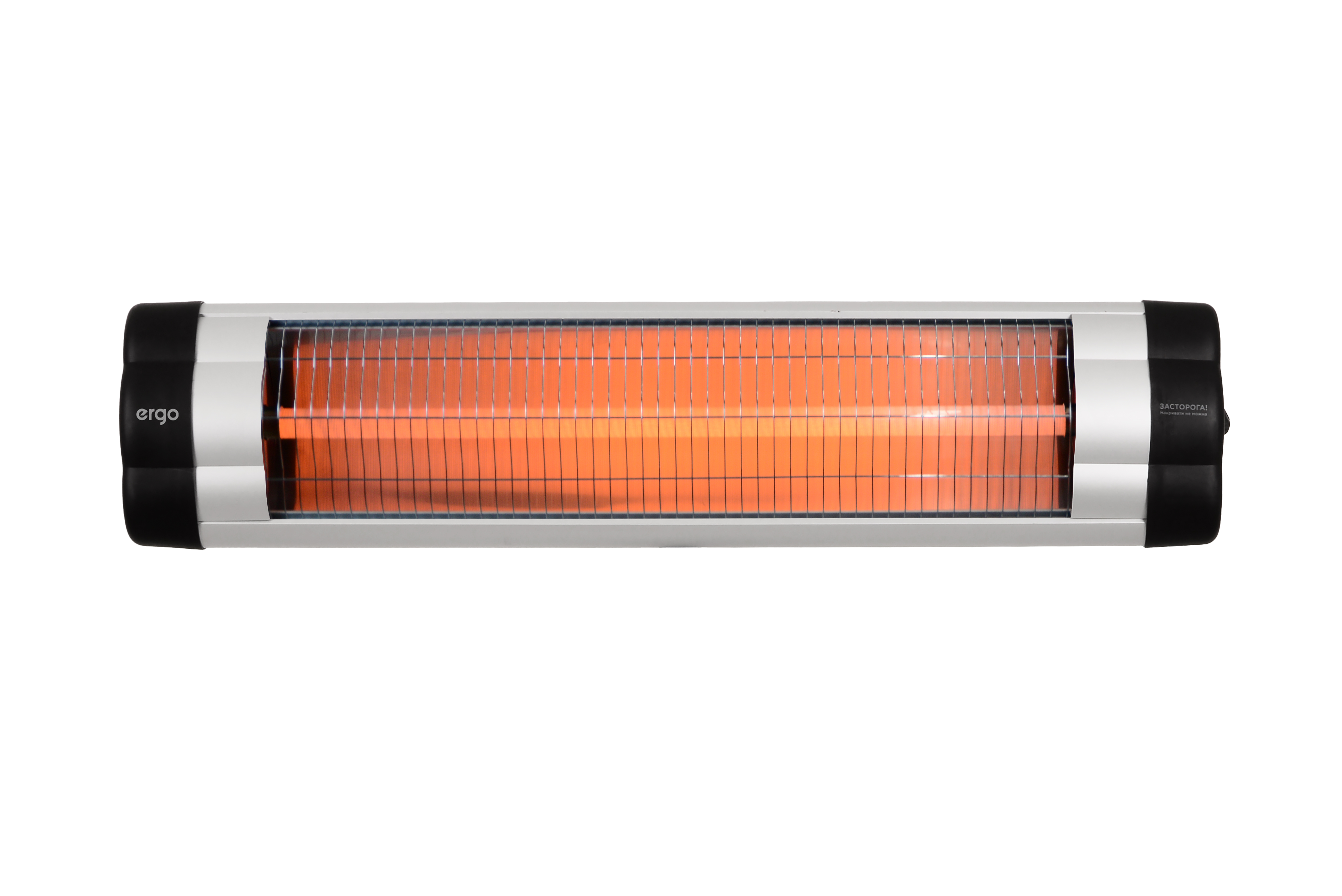

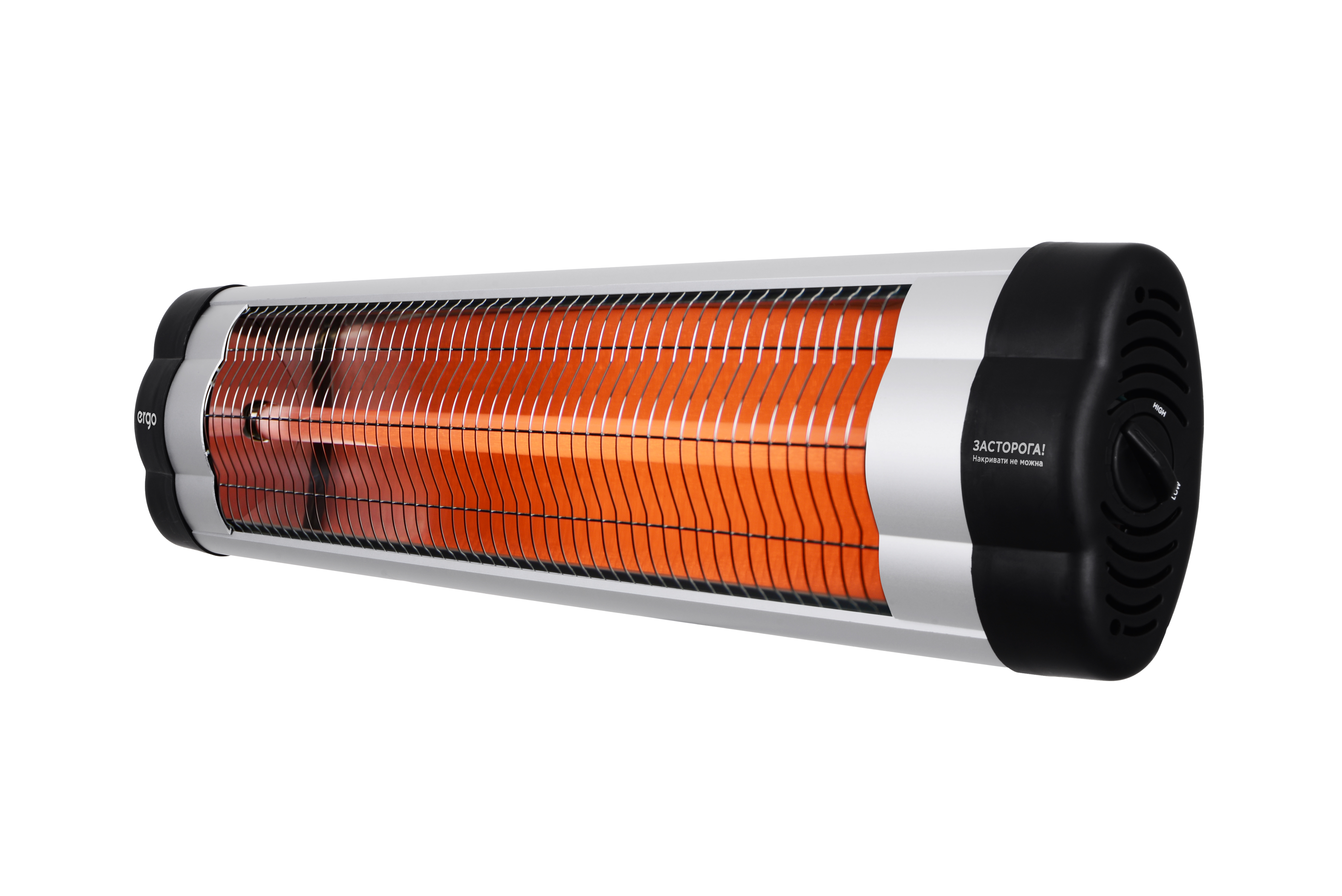

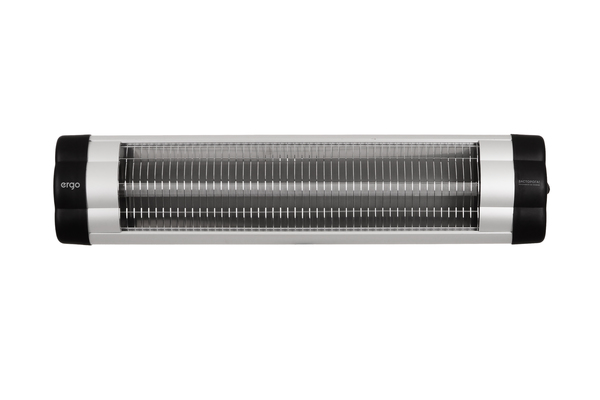

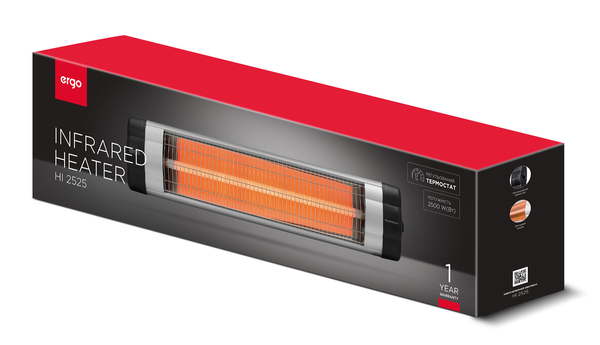

ERGO HI 2525
| Heater type | Infrared |
| TM | ERGO |
| Model | ERGO HI 2520 SS |
| Color | silver with black inserts |
| Recommended space area* | up to 25 sq.m. |
| Recommended open space area | up to 17 sq.m. |
| Arease of usage | Garages/Industrial facilities/Terraces/Home-office |

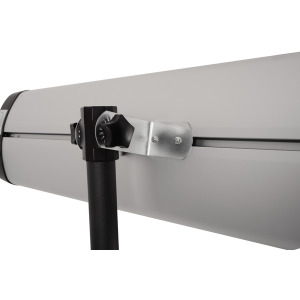

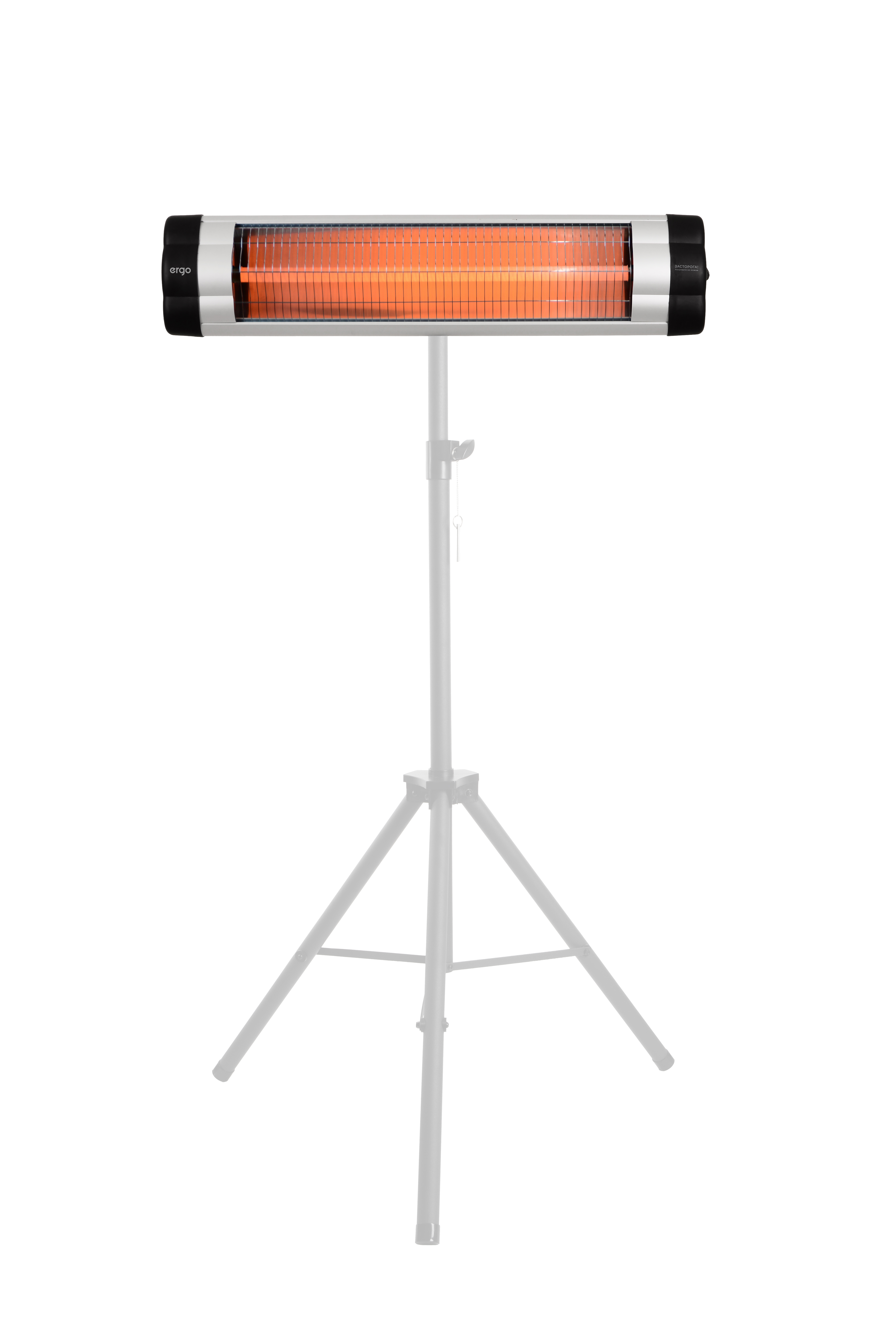

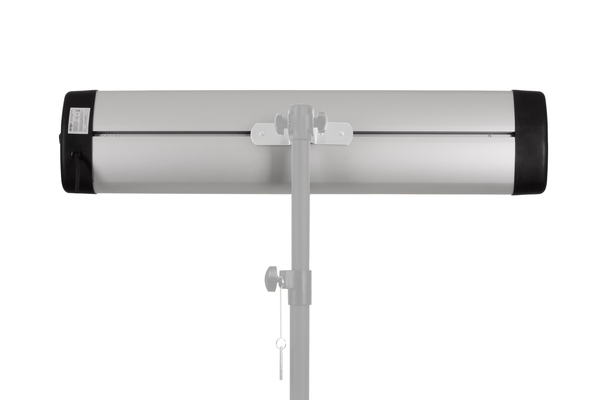

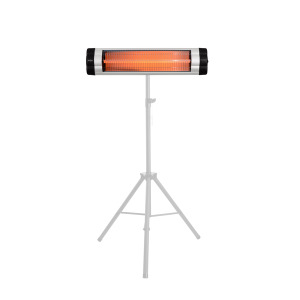

| Installation method | Desktop/На стойке |
| Installation method | На стойке |
| Operational parameters | |
| Maximum power consumption | 2500 |
| Modes of operation | 2000 |
| Voltage / frequency of the network, V / Hz | 220-240 / 50 |
| Rated current, A | 9 |
| Design features | |

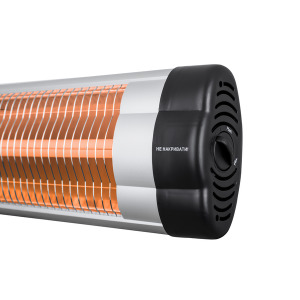

| Heating element | Quartz |

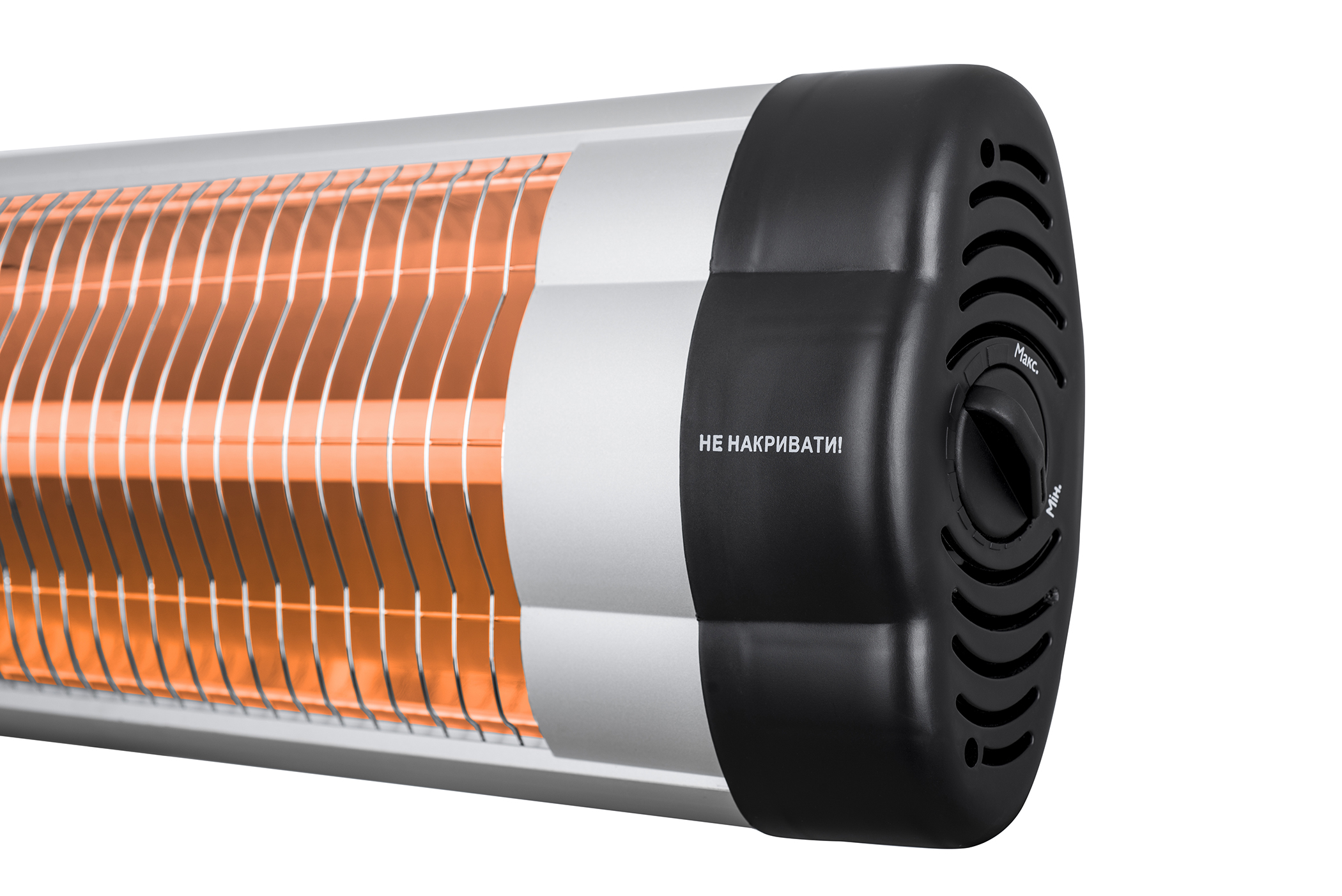

| Thermostat | Mechanical |
| Display of operating modes | No |
| Electronic thermometer | No |
| Control via the Internet | No |
| Remote control | No |
| Touch control panel | No |
| Number of lamps | 1 |
| Power cable length, mm | 2000 |
| Housing material | metal |
| Other features | |
| Other design features | Front protection grill |
| Security | |
| Degree of housing protection | IP10 |
| Overheat protection | Yes |
| Electrical protection class** | I |
| Staffing | |
| Wheels / support | No |
| Floor stand | No |

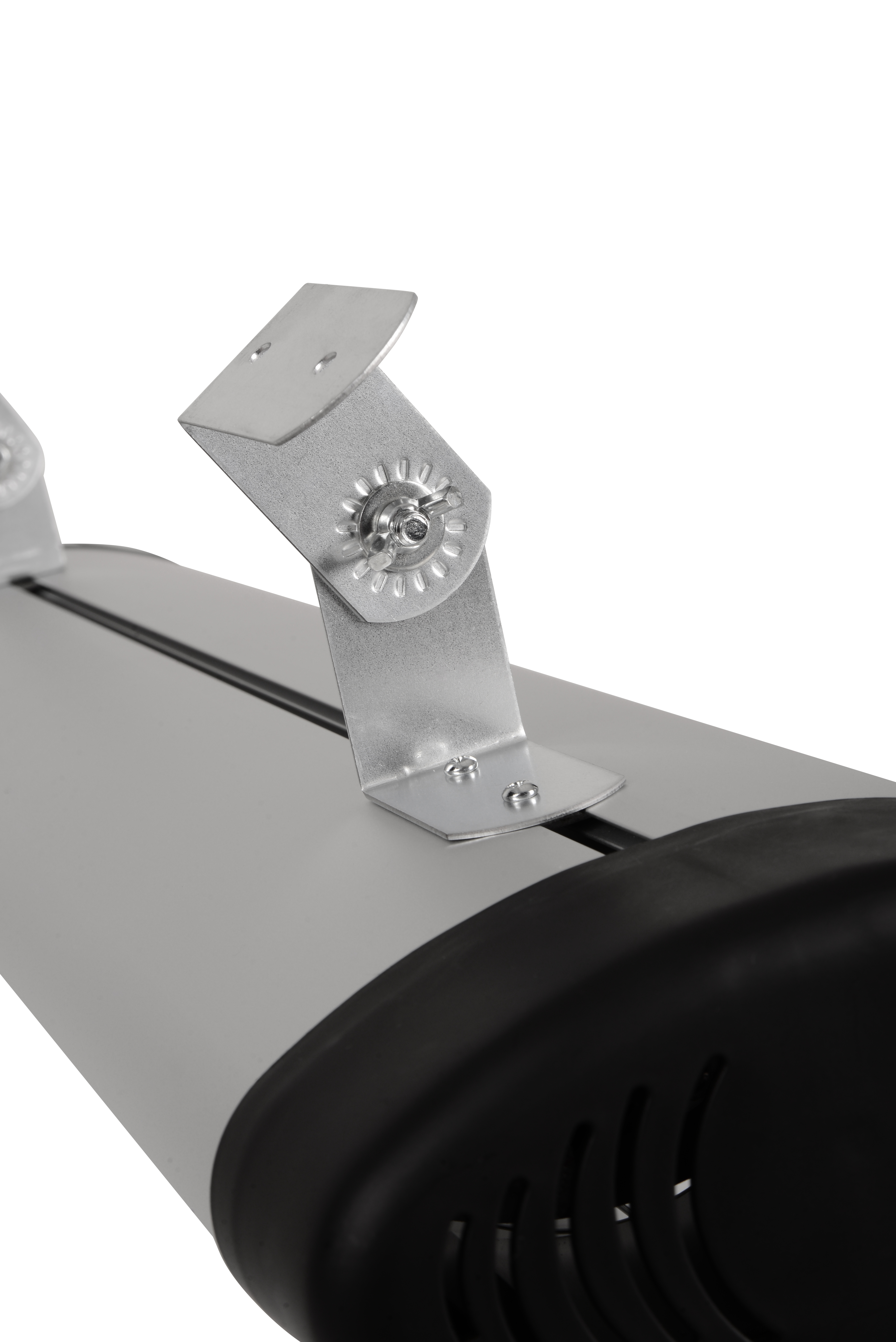

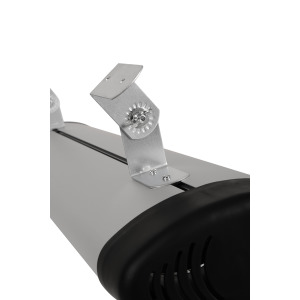

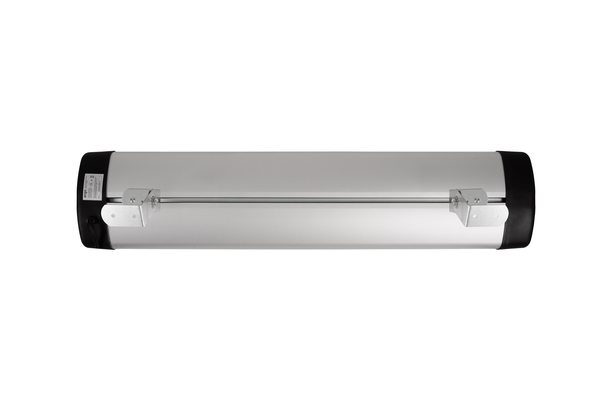

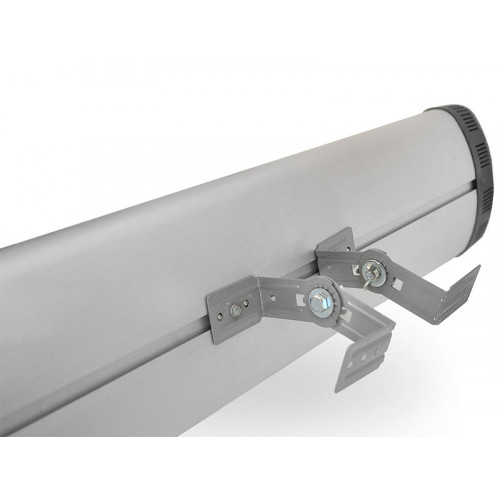

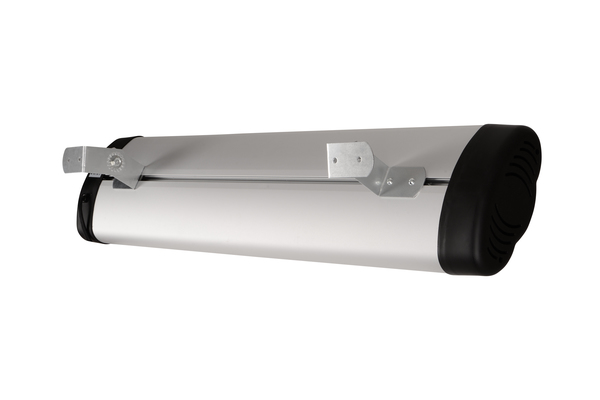

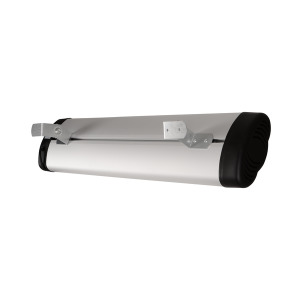

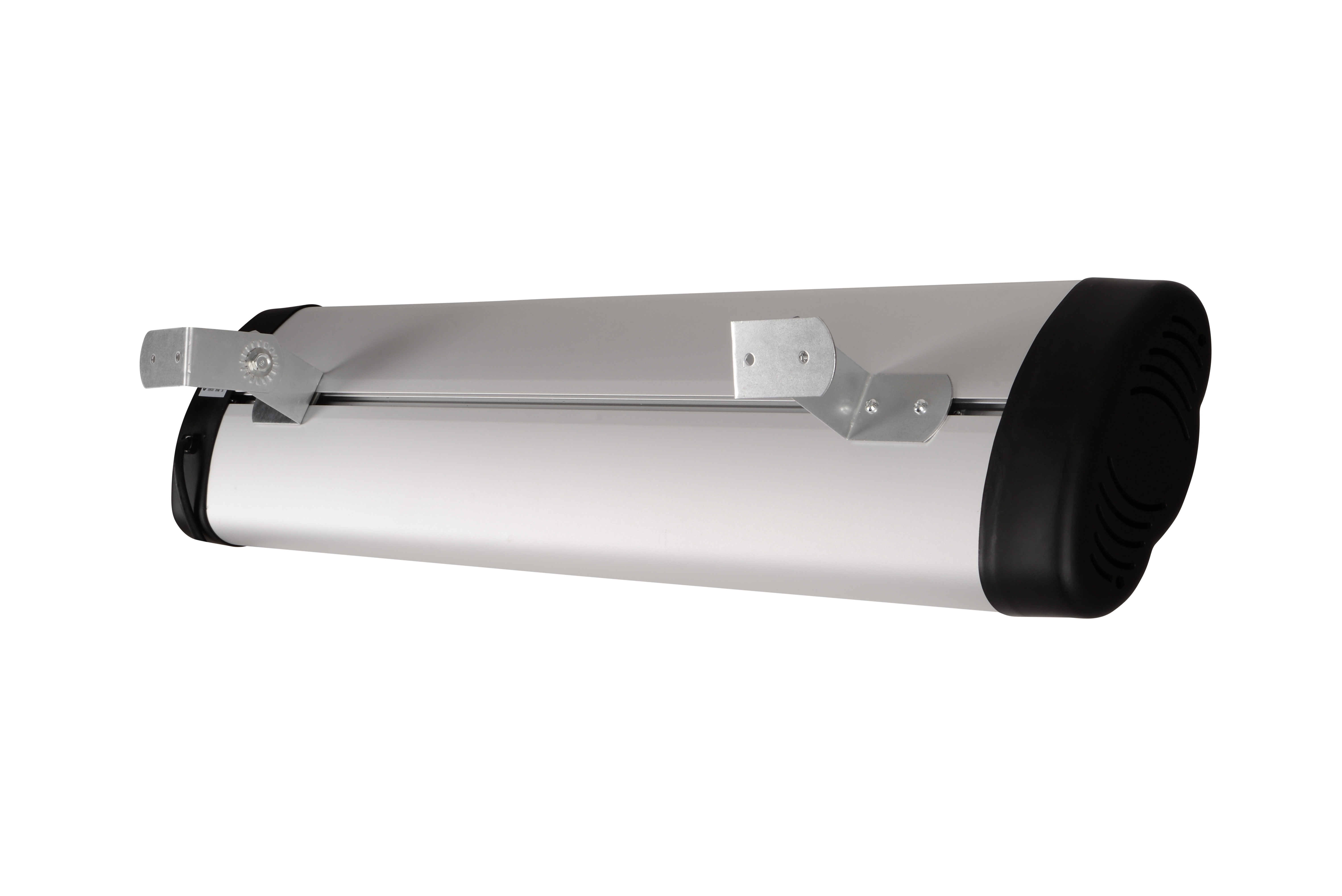

| Wall mount | Yes |
| Ceiling mount | No |

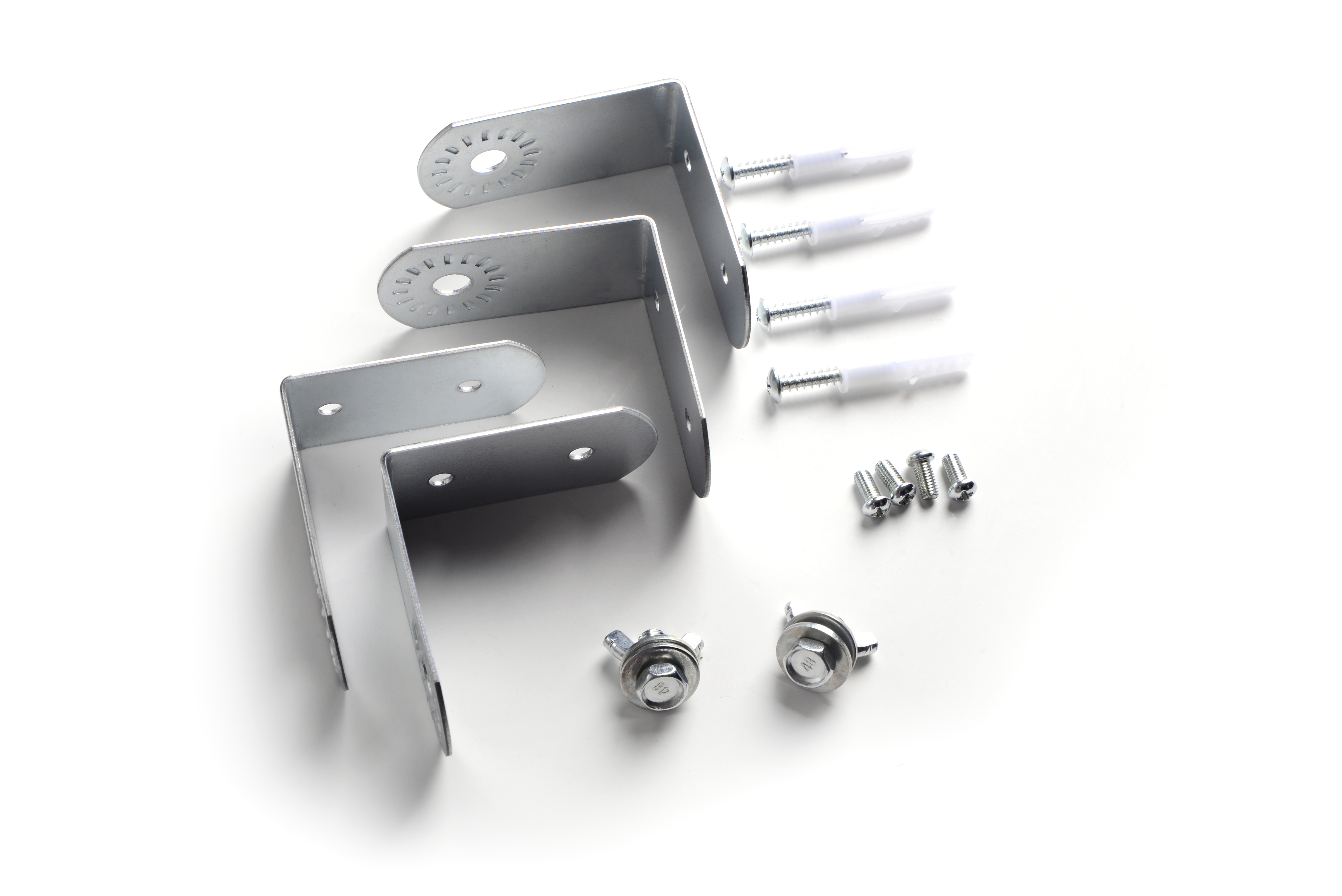

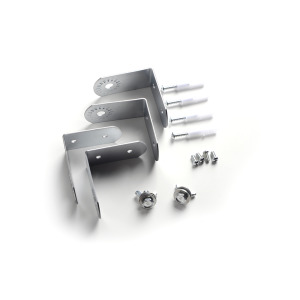

| Set of fasteners | Yes |
| Руководство по эксплуатации и гарантийный талон | Yes |
| Weight-dimensional parameters | |
| Dimensions (H x D x W), mm | 190 х 870 х 110 |

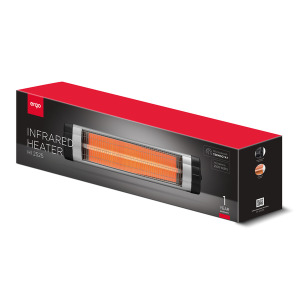

| Package Dimensions (H х D х W), мм | 235 х 915 х 145 |
| Net weight, kg | 2,90 |
| Gross weight, kg | 3,50 |
| Manufacturer country | China |
| Barcode | 6900071193240 |
| Warranty | |
| Warranty | 12 months |
| 3565303.pdf (1.52 кб) | User manual ERGO HI 2525 |
