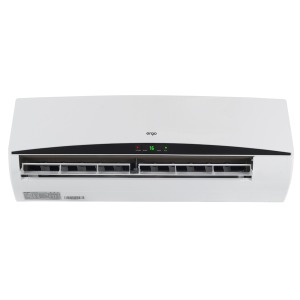

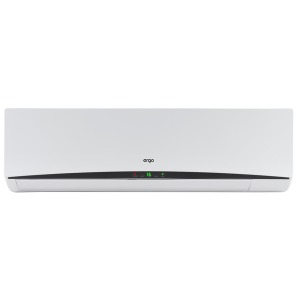

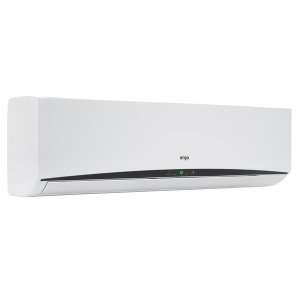

Air conditioner ERGO AC-1207CH

  • Type: split system
  • Thermal power: 3660 W
  • Heating Area: 35 m2


Wall split systems ERGO of the STANDART series have a laconic design and a modern set of options:

  • Hydrophilic coating of vapor plates - TITANGOLD technology improves heat exchange and provides rapid removal of condensate from the inner block - a conducive environment for the development of mold and bacteria, and titanium dioxide, which is a part of the coating, prevents the proliferation of pathogenic microorganisms;
  • Intelligent control in the "Auto" mode - automatic change of operating modes depends on changes of the room temperature;
  • Comfort sleep mode for 8 hours;
  • 24-hour timer for switching on and off;
  • Automatic anti-icing system for an external block;
  • Function of memorizing the angle of inclination of the jalousie;
  • Delayed start-up of the fan in order to avoid cold air blowing in the "Heating" mode;
  • "Turbo" mode allows you to reach the pre-set temperature for the shortest possible time;
  • LED display on the indoor unit panel;
  • Self-diagnosis of malfunctions of the air conditioner: in case of an error, the air conditioner automatically turns off to prevent further damage, and the display shows the error code;
  • Six-layer anti-corrosion coating;
  • Ozone-safe freon R410A.
Air conditioner type Split-system
Indoor units type Wall
Model AC-1217CH
Productivity (cooling/heating), BTU/h 12500/12500 BTU / h
Compressor control ON-OFF
Recommended space area* up to 35 sq.m.
Operational parameters
Cooling power, W 3500 W
Heater power, W 3660 W
Cooling energy efficiency ratio EER 2.75
Heating energy efficiency ratio COP 2.85
Indoor block noise level (max / w / min / silent), dB(A) 45/43/41 dB (A)
Sound pressure, outdoor unit, (max), dB(A) 55 dB(A)
Dehydration, l/h 1.2 л/ч
Air flow, indoor unit, (max), m³/h 550 m3/h
Operating temperature range for outdoor unit (cooling / heating), °C +17…+43 / -7…+24 °C
Voltage supply 220-240 V, 50 Hz, 1 f
Rated cooling capacity, W 1230 / 1280 W
Rated current cooling, A 5,8 / 5,8 А
Maximum power consumption, W 1660
Maximal current consumption, A 7.7 А
Modes of operation, functions, technical features
TURBO cooling / heating mode Yes
Ventilation Yes
Heating Yes
Air dryer Yes
Automatic mode Yes
Night mode Yes
Auto restart function Yes
Defrost system Yes
The function of memorizing the angle of inclination of the louver Yes
Self-diagnosis function Yes
Anti-dust washable filter Yes
Temperature range setting, °C 16 ... 30 °C
Weight-dimensional parameters
Indoor block dimensions (H x W x D), mm 770 x 180 х 240
Indoor unit in packing (W x D x H), мм 855 × 255 х 305 mm
External unit (W x D x H), mm 700 x 256 х 552 mm
External unit in the package (W x D x H), mm 803 x 361 x 600 mm
Weight of the indoor unit NETTO, kg 7.0 / 10.0 kg
Weight of the external unit NETTO, kg 27.0 / 31.0 kg
Equipment Remote control, remote control stand, remote control battery kit, stand holder, operating instructions, drain hose for indoor unit, outdoor unit for 4 units, mounting plate, insulation tape, drainage drain for outdoor unit
Manufacturer country China
Characteristics for installers
Compressor type Rotary
TM of the compressor manufacturer RECHI
Type of refrigerant R410A
Refueling with refrigerant, g 670 g
Design pressure (inlet / outlet) 1.9 - 4.5 MPa
Drainage Pipe, mm (inch) 16.0 mm(0.63 inches)
2315432.pdf (16,04 мб) User Manual ERGO AC-1207CH
