Air conditioner ERGO AC-1217CH

  • Type: split system
  • Thermal power: 3660 W
  • Heating Area: 35 m2

WITH CARE OF YOUR HEALTH

Thanks to the modern air purification technology, the split systems ERGO will provide comfort and a healthy environment. Conditioners of this series have in complete set:

  • "Cold Plasma" - the advanced technology of air purification from bacteria, dust viruses, pollen of plants and particles of tobacco smoke;
  • Hydrophilic coating of vapor plates - TITANGOLD technology improves heat exchange and provides rapid removal of condensate from the inner block - a conducive environment for the development of mold and bacteria, and titanium dioxide, which is a part of the coating, prevents the proliferation of pathogenic microorganisms;
  • A comfortable sleep mode for 8 hours;
  • Mode of decrease in humidity without lowering the temperature;
  • Delay in starting the fan to avoid blown by cold air in the "Heating" mode; Automatic restart function with remembering settings;
  • Function of remembering the angle of the slope of the jalousie;
  • Automatic anti-icing system for an external block;
  • Self-diagnosis of air conditioner: in the event of an error, the air conditioner will automatically be switched off to prevent further damage, and the error code will appear on the display of internal unit;
  • 24-hour timer for switching on and off;
  • "Turbo" mode allows you to reach the pre-set temperature for the shortest possible time;
  • LED display on the indoor unit panel;
  • Ozone-friendly freon R410A.
Air conditioner type Split-system
Indoor units type Wall
Model AC-1217CH
Productivity (cooling/heating), BTU/h 12500 / 12500 BTU / h
Compressor control ON-OFF
Recommended space area* up to 35 sq.m.
Operational parameters
Cooling power, W 3520 W
Heater power, W 3660 W
Cooling energy efficiency ratio EER 2.75
Heating energy efficiency ratio COP 2.88
Indoor block noise level (max / w / min / silent), dB(A) 39 / 36 / 34 dB(A)
Sound pressure, outdoor unit, (max), dB(A) 55 dB (A)
Dehydration, l/h 1.5 l / h
Air flow, indoor unit, (max), m³/h 530 / 430 / 370 m3 / h
Operating temperature range for outdoor unit (cooling / heating), °C +17…+43 / -7…+24 °C
Voltage supply 198 ~ 264 V, 50 Hz, 1 f
Rated cooling capacity, W 1280 / 1270 W
Rated current cooling, A 5,8 / 5,8 А
Maximum power consumption, W 1660
Maximal current consumption, A 7.5 А
Modes of operation, functions, technical features
TURBO cooling / heating mode Yes
Ventilation Yes
Heating Yes
Air dryer Yes
Automatic mode Yes
Night mode Yes
Auto restart function Yes
Defrost system Yes
The function of memorizing the angle of inclination of the louver Yes
Self-diagnosis function Yes
Anti-dust washable filter Yes
Temperature range setting, °C 16 ... 30 °C
Weight-dimensional parameters
Indoor block dimensions (H x W x D), mm 770 x 240 x 180
Indoor unit in packing (W x D x H), мм 855 × 305 × 255 mm
External unit (W x D x H), mm 700 x 552 x 256 mm
External unit in the package (W x D x H), mm 803 x 598 x 325 mm
Weight of the indoor unit NETTO, kg 8.0 / 10.0 кг
Weight of the external unit NETTO, kg 30.0 / 34.0 кг

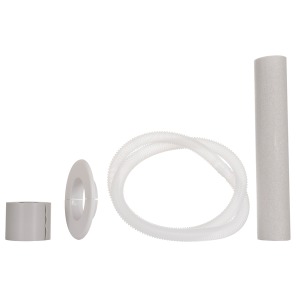

Equipment Remote control, remote control stand, remote control battery kit, stand holder, operating instructions, drain hose for indoor unit, outdoor unit for 4 units, mounting plate, insulation tape, drainage drain for outdoor unit
Manufacturer country China
Characteristics for installers
Compressor type Rotary
TM of the compressor manufacturer RECHI
Type of refrigerant R410A
Refueling with refrigerant, g 670 g
Design pressure (inlet / outlet) 1.9 - 4.5 MPa
2315474.pdf (16,04 мб) User Manual ERGO AC-1217CH
