Air conditioner type |
Split-system |
Indoor units type |
Wall |
Model |
ERGO AC-1817CH |
Productivity (cooling/heating), BTU/h |
18000/18000 BTU / h |
Compressor control |
ON-OFF |
Recommended space area* |
up to 50 sq.m. |
Cooling power, W |
5280 W |
Heater power, W |
5420 W |
Cooling energy efficiency ratio EER |
2.86 |
Heating energy efficiency ratio COP |
2.85 |
Indoor block noise level (max / w / min / silent), dB(A) |
45/43/42 dB (A) |
Sound pressure, outdoor unit, (max), dB(A) |
58 dB (A) |
Dehydration, l/h |
2 l / h |
Air flow, indoor unit, (max), m³/h |
730 m3/ h |
Operating temperature range for outdoor unit (cooling / heating), °C |
+17…+43 / -7…+24 °C |
Voltage supply |
198~264 W, 50 Hz, 1 f |
Rated cooling capacity, W |
220-240 V, 50 Hz, 1 f |
Rated current cooling, A |
8.5 / 8.6 А |
Maximum power consumption, W |
2440 W |
Maximal current consumption, A |
11.5 А |
TURBO cooling / heating mode |
Yes |
Ventilation |
Yes |
Heating |
Yes |
Air dryer |
Yes |
Automatic mode |
Yes |
Night mode |
Yes |
Auto restart function |
Yes |
Defrost system |
Yes |
The function of memorizing the angle of inclination of the louver |
Yes |
Self-diagnosis function |
Yes |
Anti-dust washable filter |
Yes |
Temperature range setting, °C |
16 ... 30 °C |
Indoor block dimensions (H x W x D), mm |
900 x 202 х 280 |
Indoor unit in packing (W x D x H), мм |
985 × 298 х 365 mm |

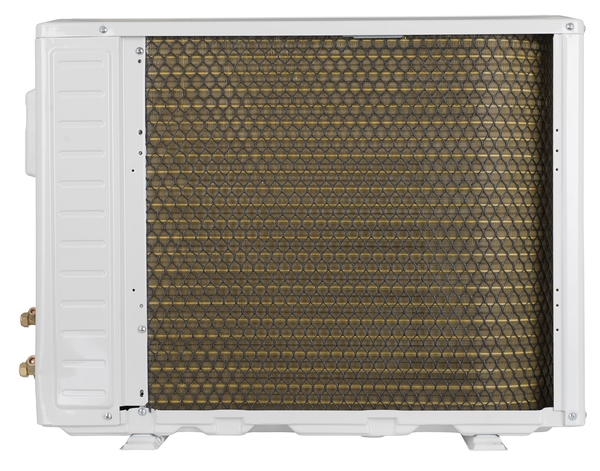

External unit (W x D x H), mm |
760 x 256 х 552 mm |
External unit in the package (W x D x H), mm |
863 x 361 x 590 mm |
Weight of the indoor unit NETTO, kg |
10.0 / 13.0 kg |
Weight of the external unit NETTO, kg |
40.0 / 45.0 kg |
Equipment |

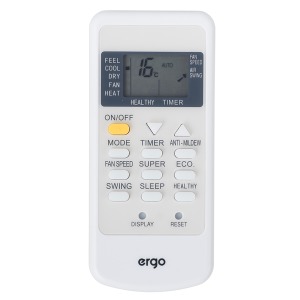

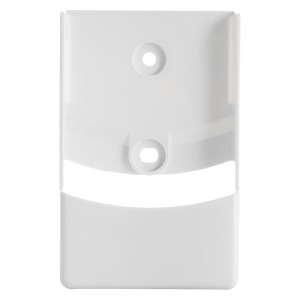

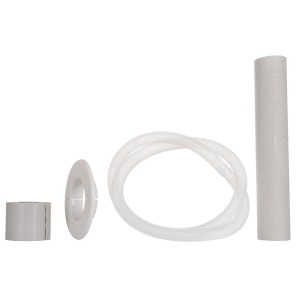

Remote control, remote control stand, remote control battery kit, stand holder, operating instructions, drain hose for indoor unit, outdoor unit for 4 units, mounting plate, insulation tape, drainage drain for outdoor unit |
Manufacturer country |
China |
Compressor type |
Rotary |
TM of the compressor manufacturer |
RECHI |
Type of refrigerant |
R410A |
Refueling with refrigerant, g |
980 g |
Design pressure (inlet / outlet) |
1.9 - 4.5 MPa |
Drainage Pipe, mm (inch) |
16.0 мм (0.63 inches) |
Electrical interconnection, x mm sq |
3 х 1.5 + 2 х 0.75 х sq.mm |
