Air conditioner type |
Split-system |
Indoor units type |
Wall |
Model |
ACI-0907CH |
Productivity (cooling/heating), BTU/h |
9000/9500 BTU / h |
Compressor control |
INVERTER |
Recommended space area* |
up to 25 sq.m. |
Cooling power, W |
2640 (1000 ~ 3370) W |
Heater power, W |
2780 (1000 ~ 3690) W |
Cooling energy efficiency ratio EER |
2.83 |
Heating energy efficiency ratio COP |
2.86 |
Indoor block noise level (max / w / min / silent), dB(A) |
41 / 39 / 37 dB (A) |
Sound pressure, outdoor unit, (max), dB(A) |
55 dB (A) |
Dehydration, l/h |
1 l / h |
Air flow, indoor unit, (max), m³/h |
430 m3/h |
Operating temperature range for outdoor unit (cooling / heating), °C |
-15…+43 / -15…+24 °C |
Voltage supply |
165 ~ 265 V / 50 Hz / 1 f |
Rated cooling capacity, W |
930 (320 ~ 1250) / 970 (320 ~ 1350) W |
Rated current cooling, A |
4.3 (1.8 ~ 7.2) / 4.5 (1.8 ~ 8.9) A |
Maximum power consumption, W |
1350 W |
Maximal current consumption, A |
8.9 W |
TURBO cooling / heating mode |
Yes |
Ventilation |
Yes |
Heating |
Yes |
Air dryer |
Yes |
Automatic mode |
Yes |
Night mode |
Yes |
Auto restart function |
Yes |
Defrost system |
Yes |
The function of memorizing the angle of inclination of the louver |
Yes |
Self-diagnosis function |
Yes |
Anti-dust washable filter |
Yes |
Catalytic filter |
Yes |
Temperature range setting, °C |
16 ... 30 °C |
Indoor block dimensions (H x W x D), mm |
718 × 180 х 240 |
Indoor unit in packing (W x D x H), мм |
805 × 305 × 255 mm |

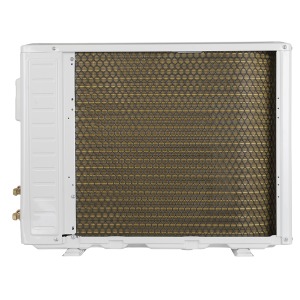

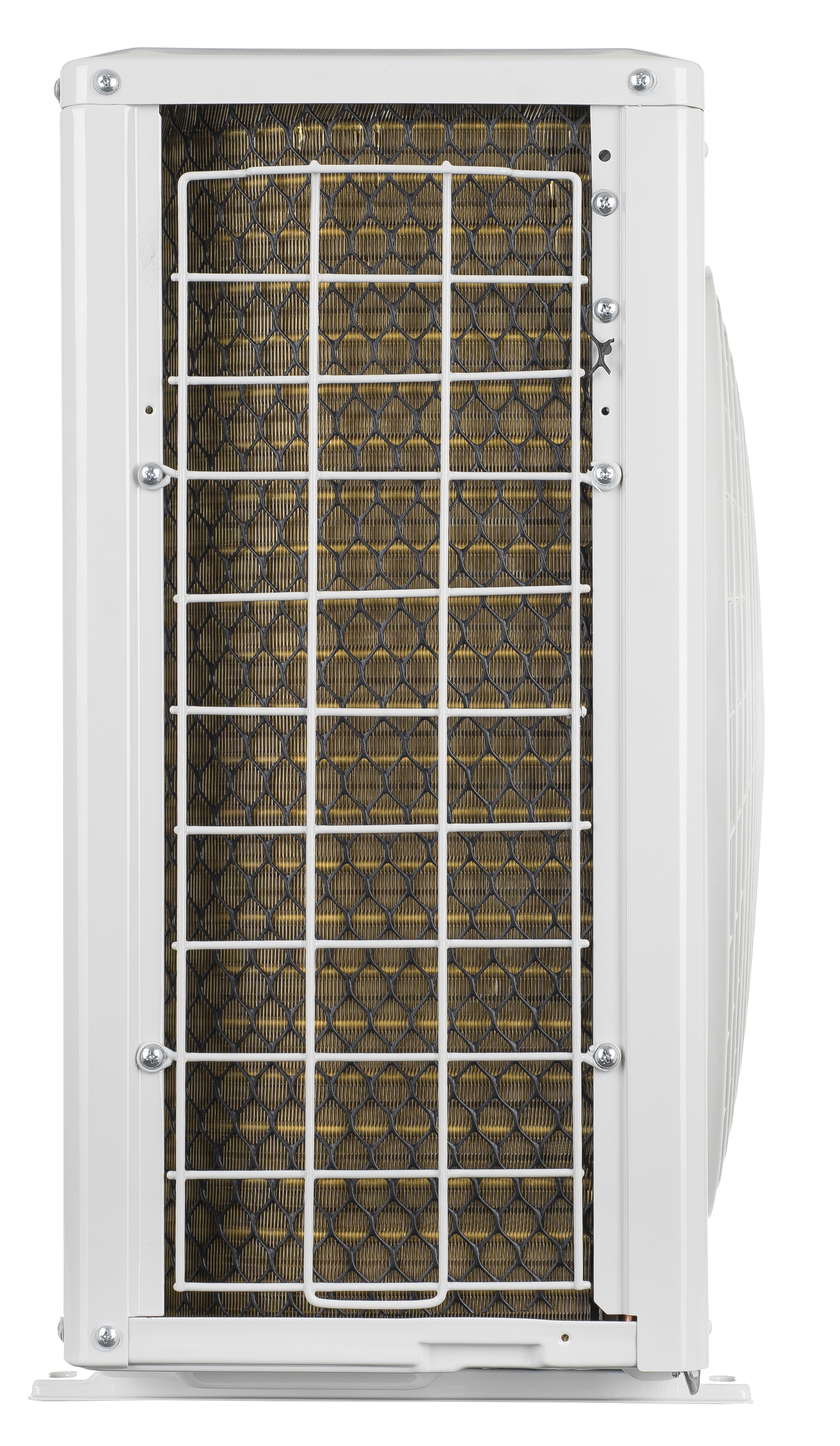

External unit (W x D x H), mm |
700 × 256 × 552 mm |
External unit in the package (W x D x H), mm |
803 × 361 × 600 mm |
Weight of the indoor unit NETTO, kg |
7.0 / 9.0 kg |
Weight of the external unit NETTO, kg |
28 / 32 kg |
Equipment |

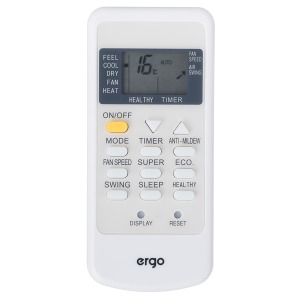

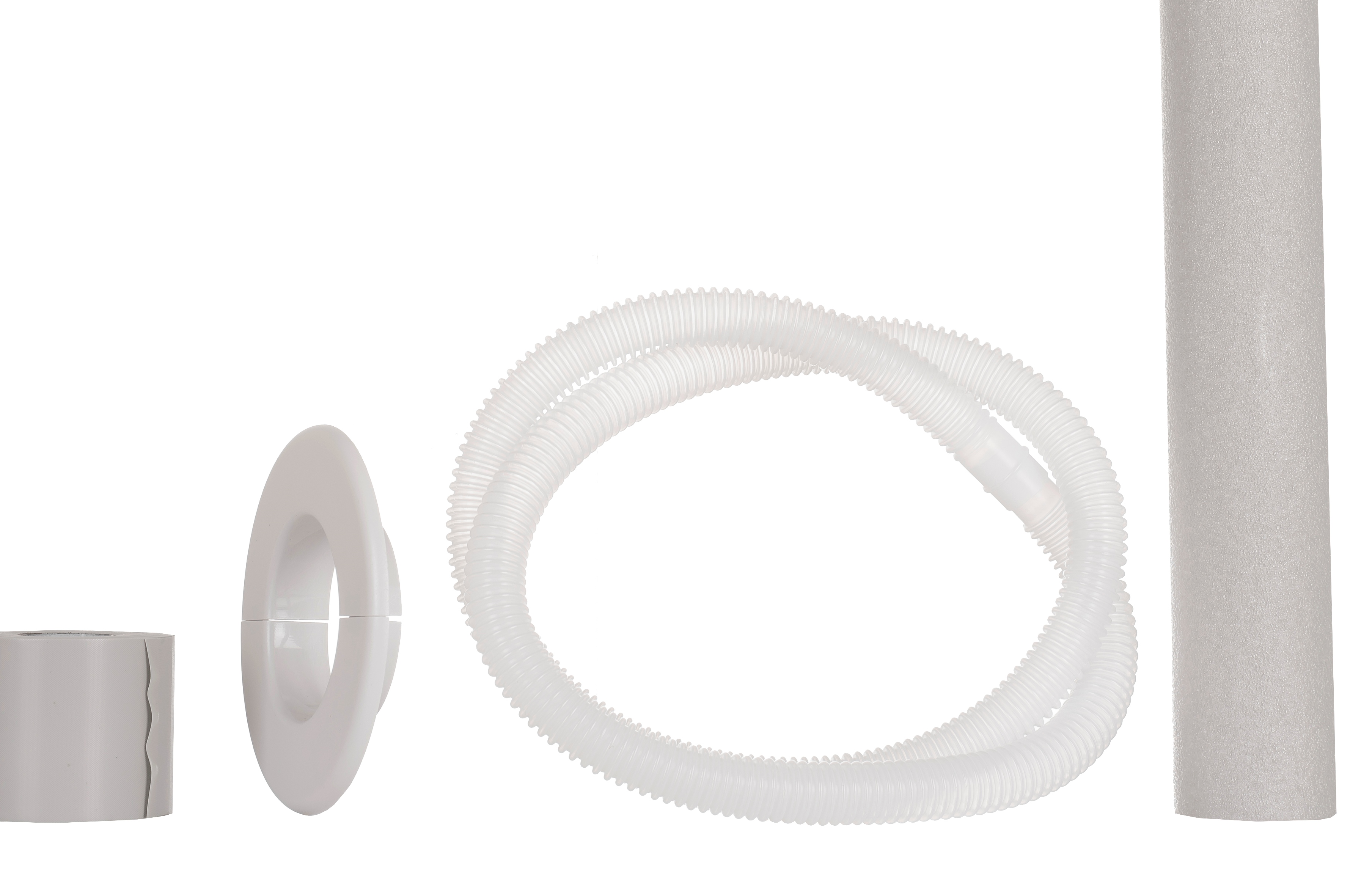

Remote control, stand for remote control, set of batteries for remote control, mount for stand, user's manual, drain hose for indoor unit, outdoor unit for 4 pieces, mounting plate, insulation tape, drainage drain for outdoor unit |
Manufacturer country |
China |
Compressor type |
Rotary |
TM of the compressor manufacturer |
RECHI |
Compressor model |
39A23MYJ-FJKE |
Type of refrigerant |
R410A |
Refueling with refrigerant, g |
520 g |
Design pressure (inlet / outlet) |
1.9 - 4.5 MPa |
Drainage Pipe, mm (inch) |
16.0 мм (0.63) |
Electrical interconnection, x mm sq |
4×1.0 |
