Air conditioner type |
Split-system |

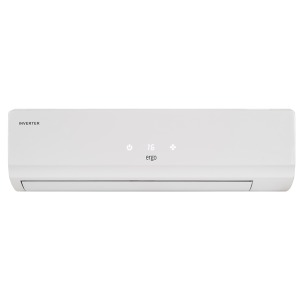

Indoor units type |
Wall |
Model |
ACI-1807CH |
Productivity (cooling/heating), BTU/h |
18000/18000 BTU / h |
Compressor control |
INVERTER |
Recommended space area* |
up to 50 sq.m. |
Cooling power, W |
5280 (1610 ~ 5860) W |
Heater power, W |
6000 (1320 ~ 7030) W |
Cooling energy efficiency ratio EER |
2.82 |
Heating energy efficiency ratio COP |
2.86 |
Indoor block noise level (max / w / min / silent), dB(A) |
42/40/38 dB (A) |
Sound pressure, outdoor unit, (max), dB(A) |
55 dB (A) |
Dehydration, l/h |
1.8 l / h |
Air flow, indoor unit, (max), m³/h |
750 m3 / h |
Operating temperature range for outdoor unit (cooling / heating), °C |
-15…+43 / -15…+24 °C |
Voltage supply |
165 ~ 265 V / 50 Hz / 1 f |
Rated cooling capacity, W |
1870 (520 ~ 2300) / 2100 (470 ~ 2450) W |
Rated current cooling, A |
8.7(2.4~10.2) / 9.7(2.1~11.1) А |
Maximum power consumption, W |
2450 W |
Maximal current consumption, A |
11.1 А |
TURBO cooling / heating mode |
Yes |
Ventilation |
Yes |
Heating |
Yes |
Air dryer |
Yes |
Automatic mode |
Yes |
Night mode |
Yes |
Auto restart function |
Yes |
Defrost system |
Yes |
The function of memorizing the angle of inclination of the louver |
Yes |
Self-diagnosis function |
Yes |
Anti-dust washable filter |
Yes |
Temperature range setting, °C |
16 ... 30 °C |
Indoor block dimensions (H x W x D), mm |
900 × 202 х 280 |
Indoor unit in packing (W x D x H), мм |
985 × 365 × 298 mm |

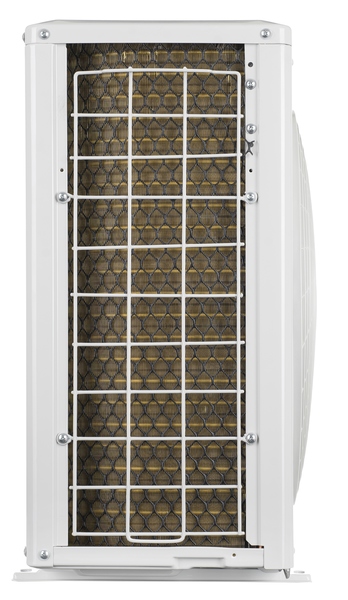

External unit (W x D x H), mm |
760 × 256 × 552 mm |
External unit in the package (W x D x H), mm |
863 × 361 × 590 mm |
Weight of the indoor unit NETTO, kg |
10 / 13 kg |
Weight of the external unit NETTO, kg |
40 / 45 kg |
Equipment |

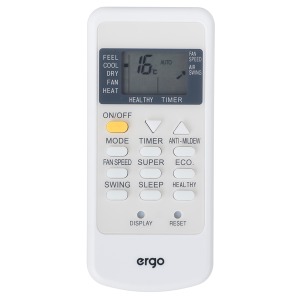

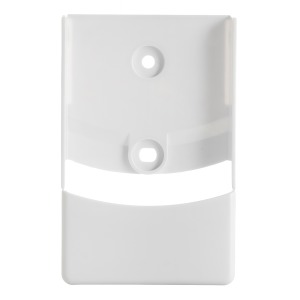

Remote control, stand for remote control, set of batteries for remote control, mount for stand, user's manual, drain hose for indoor unit, outdoor unit for 4 pieces, mounting plate, insulation tape, drainage drain for outdoor unit |
Manufacturer country |
China |
Compressor type |
Rotary |
TM of the compressor manufacturer |
HITACHI |
Compressor model |
ASD113RKPA6JT1 |
Type of refrigerant |
R410A |
Refueling with refrigerant, g |
950 g |
Design pressure (inlet / outlet) |
1.9 - 4.5 MPa |
Drainage Pipe, mm (inch) |
16.0 мм (0.63) |
Electrical interconnection, x mm sq |
4×1.5 |
