Air conditioner type |
Split-system |
Indoor units type |
Wall |
Model |
ERGO ACI-2407CH |
Productivity (cooling/heating), BTU/h |
24000 /24500 BTE/h |
Compressor control |
INVERTER |
Recommended space area* |
more than 50 sq.m. |
Cooling power, W |
7000 W |
Heater power, W |
7200 W |
Cooling energy efficiency ratio EER |
2,81 |
Heating energy efficiency ratio COP |
2,85 |
Indoor block noise level (max / w / min / silent), dB(A) |
44 / 42 / 40 dB(А) |
Sound pressure, outdoor unit, (max), dB(A) |
56 dB(А) |
Dehydration, l/h |
2.2 l / h |
Air flow, indoor unit, (max), m³/h |
780 m3/h |
Operating temperature range for outdoor unit (cooling / heating), °C |
+17…+43 / -7…+24°C |
Voltage supply |
165-265 V 50 Hz 1 f |
Rated cooling capacity, W |
2470 (620-2850) / 2520 (660-2900) W |
Rated current cooling, A |
11.3(2.8-13.2) / 11.6(3.0-14.1) А |
Maximum power consumption, W |
2900 |
Maximal current consumption, A |
15,2 А |
TURBO cooling / heating mode |
Yes |
Ventilation |
Yes |
Heating |
Yes |
Air dryer |
Yes |
Automatic mode |
Yes |
Night mode |
Yes |
Auto restart function |
Yes |
Defrost system |
Yes |
The function of memorizing the angle of inclination of the louver |
Yes |
Self-diagnosis function |
Yes |
Anti-dust washable filter |
Yes |
Temperature range setting, °C |
16 ... 30°C |
Indoor block dimensions (H x W x D), mm |
1033 × 313 × 202 |
Indoor unit in packing (W x D x H), мм |
1103 × 400 × 300 mm |

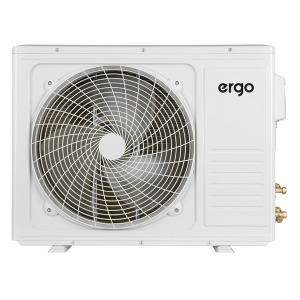

External unit (W x D x H), mm |
820 × 300 × 605 mm |
External unit in the package (W x D x H), mm |
910 × 392 × 635 mm |
Weight of the indoor unit NETTO, kg |
14/17 kg |
Weight of the external unit NETTO, kg |
38/45 kg |
Equipment |

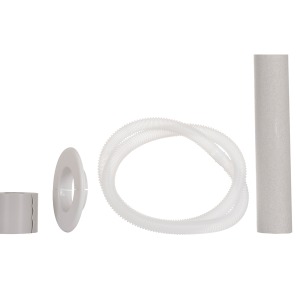

Remote control, stand for remote control, set of batteries for remote control, mount for stand, user's manual, drain hose for indoor unit, outdoor unit for 4 pieces, mounting plate, insulation tape, drainage drain for outdoor unit |
Manufacturer country |
China |
Compressor type |
Rotary |
TM of the compressor manufacturer |
GMCC |
Type of refrigerant |
R410A |
Refueling with refrigerant, g |
1700 g |
Design pressure (inlet / outlet) |
1.9 - 4.5 MPa |
Drainage Pipe, mm (inch) |
16.0 (0.63) |
Electrical interconnection, x mm sq |
4x2.5 х mm sq |
