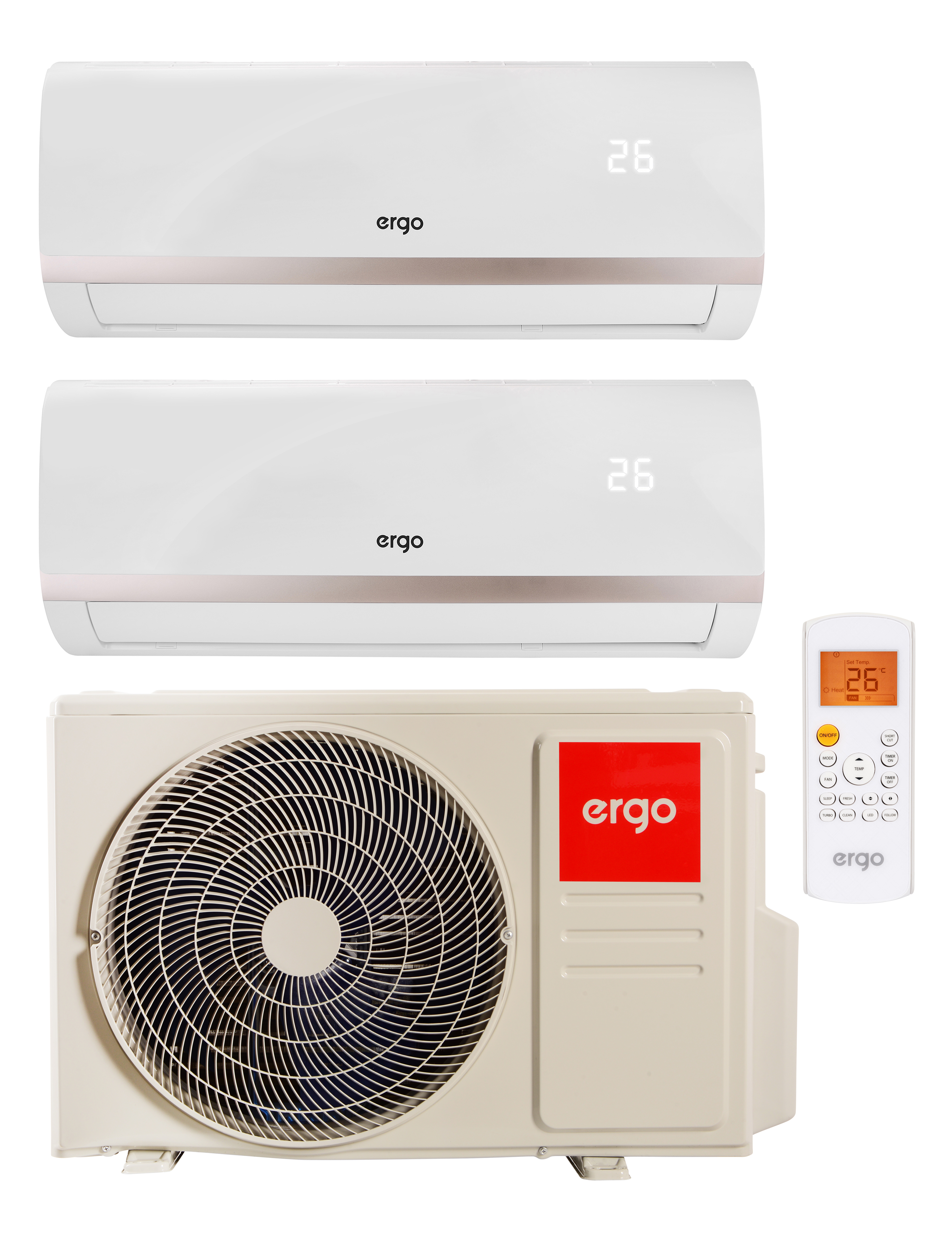

Multisplit system (kit) ERGO ACI 1835 ODU MSH (2) + ACI 0935 IDU MSW W х 2

  • Energy efficiency: A
  • Cooling area: up to 25 m²
  • Cooling capacity: 5.3 kW
  • Operating range: -15℃...+50℃
Air conditioner type Multisplit-system

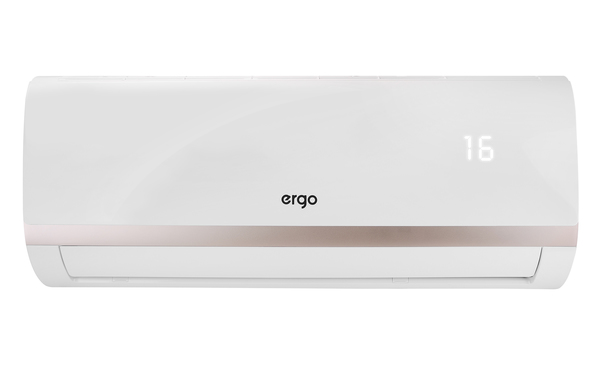

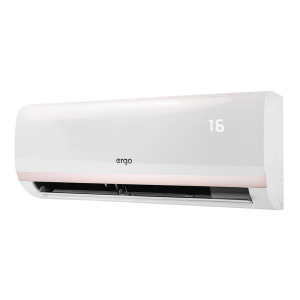

Indoor units type Wall
TM ERGO
Model ERGO ACI 1835 ODU MSH(2) + ACI 0935 IDU MSW WIFI х 2
Productivity (cooling/heating), BTU/h 18000 / 19000 (outdoor unit) 9000 / 10000 (indoor unit) x 2
Compressor control INVERTER
Recommended room area (for cooling mode) sq.m 2 х 25
Operational parameters
Cooling power, W 5300
Heater power, W 4800
Energy efficiency class (cooling) A++
Energy efficiency class (heating) A
Cooling energy efficiency ratio SEER 6.1
Heating energy efficiency ratio S.C.O.P 3.8
Heating energy efficiency ratio COP 3,71
Annual energy consumption (heating), kwh / year 1540
Indoor sound power (max / w / min / silent), dB(A) 54
Outdoor sound power, (max), dB(A) 65
Indoor block noise level (max / w / min / silent), dB(A) 40/30/26/21
Sound pressure, outdoor unit, (max), dB(A) 54
Dehydration, l/h 2 х 1.0
Air flow, indoor unit (max / avg / min) 520 / 460 / 340
Indoor fan speed, cooling, rpm 1030 / 850 / 700
Indoor fan speed, heating, rpm 1030 / 850 / 700
Operating temperature range for indoor unit (cooling / heating), °C +17…+32 / 0…+30
Operating temperature range for outdoor unit (cooling / heating), °C -15…+50 / -15…+24
Voltage supply 187-265 В / 50 Гц /1 ф
Rated cooling capacity, W 1635
Rated power consumption heating, W 1500
Rated current cooling, A 7.3
Rated current heating, A 6.6
Maximum power consumption, W 3050
Maximal current consumption, A 13
Degree of housing protection indoor unit IPХ0
Degree of housing protection outdoor unit IPХ4
Modes of operation, functions, technical features
Control via the Internet Yes
TURBO cooling / heating mode Yes
Ventilation Yes
Heating Yes
Air dryer Yes
Automatic mode Yes
Night mode Yes
Auto restart function Yes
Defrost system Yes
The function of memorizing the angle of inclination of the louver Yes
Self-diagnosis function Yes
The function of monitoring the set temperature using the temperature sensor in the remote control FOLLOW ME
Self-cleaning function Yes
Anti-dust washable filter Yes
Ionizer Yes
Hydrophilic coating of heat exchanger plates Golden Fin coating
On / Off timer 24 h

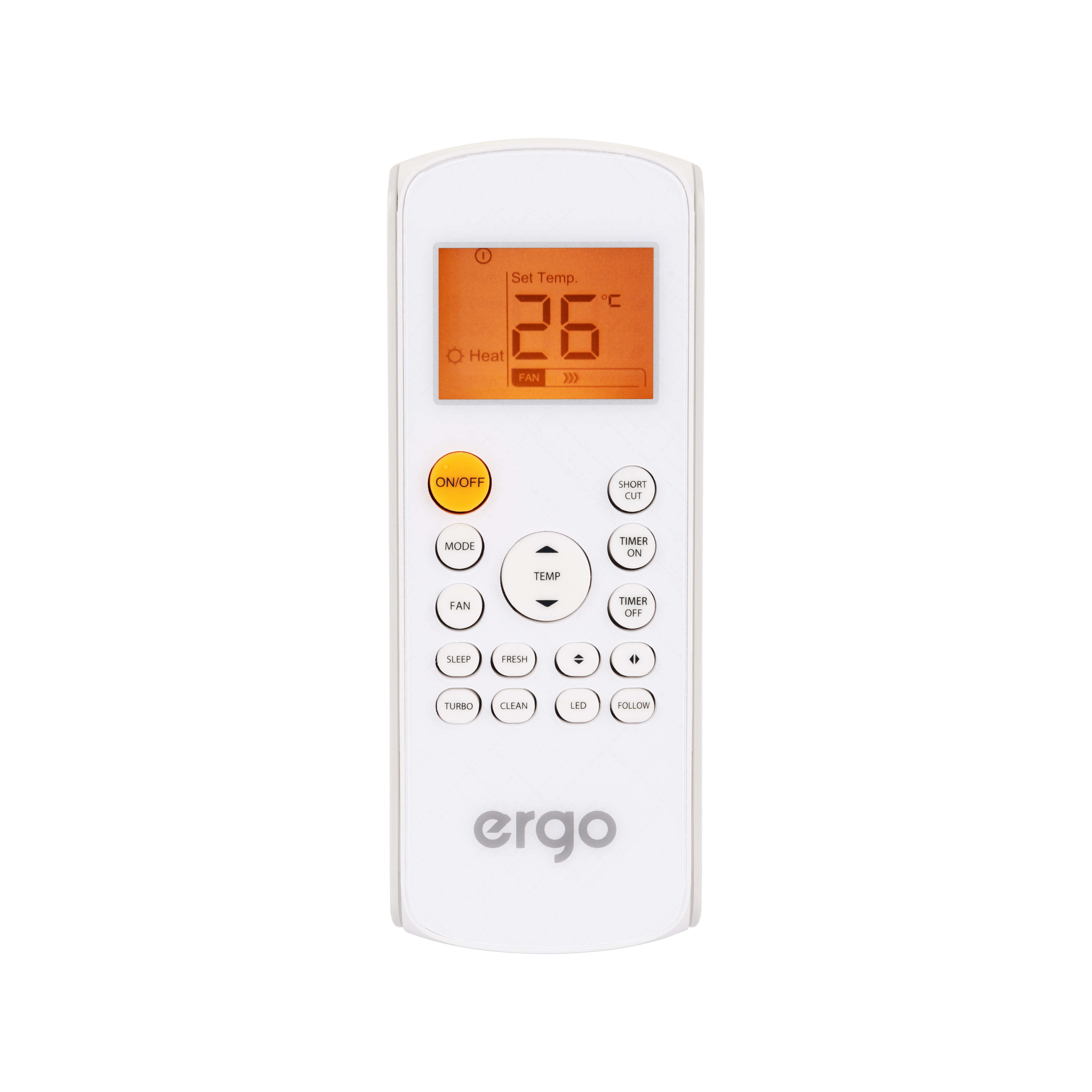

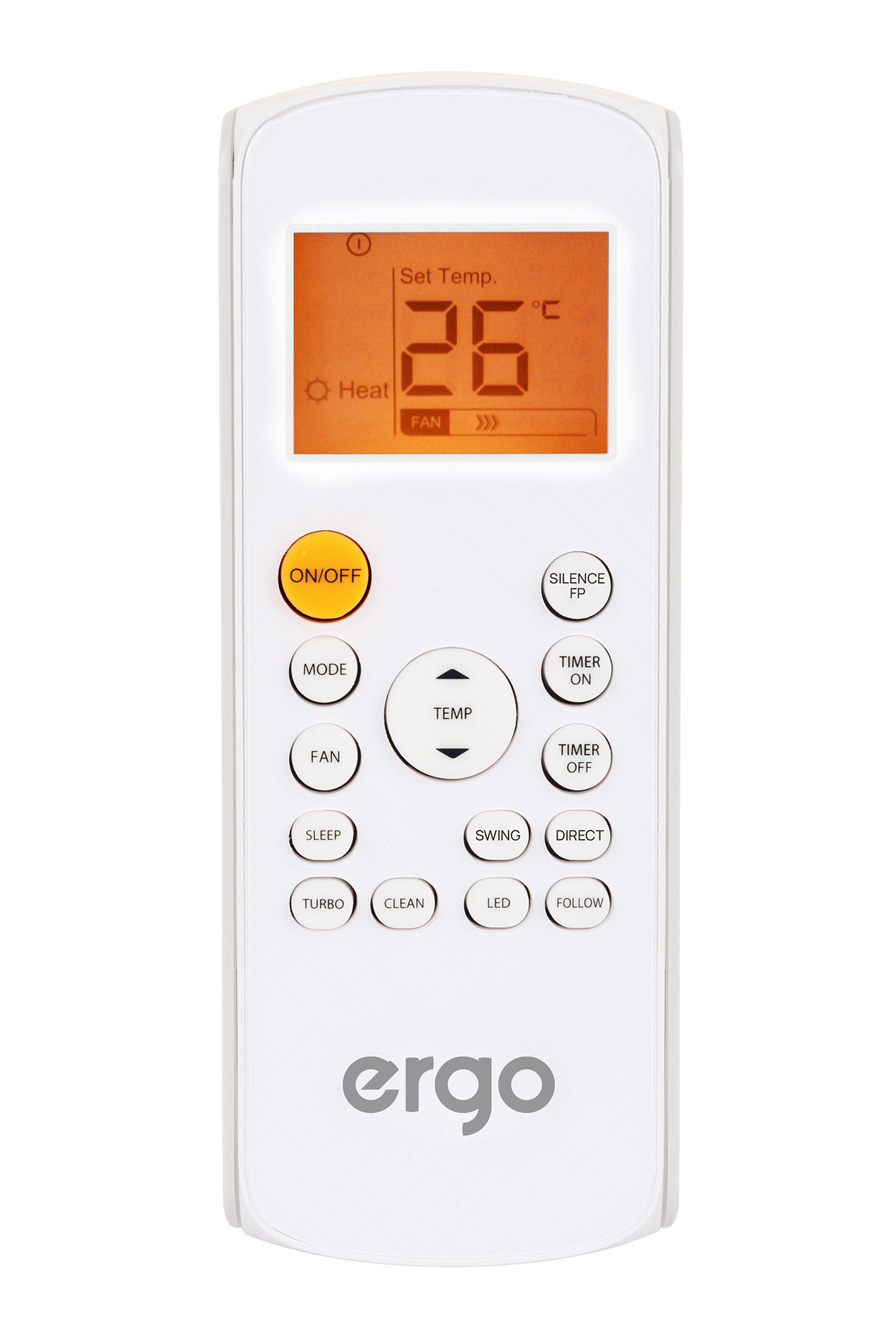

Remote control IR remote control with LCD
Control of the air supply direction (up / down) from the remote control
Control of the air supply direction (left / right) manual
Temperature range setting, °C 17 ... 30
Work at low external temperatures, °C up to 15
Display of operating modes hidden LED
Weight-dimensional parameters

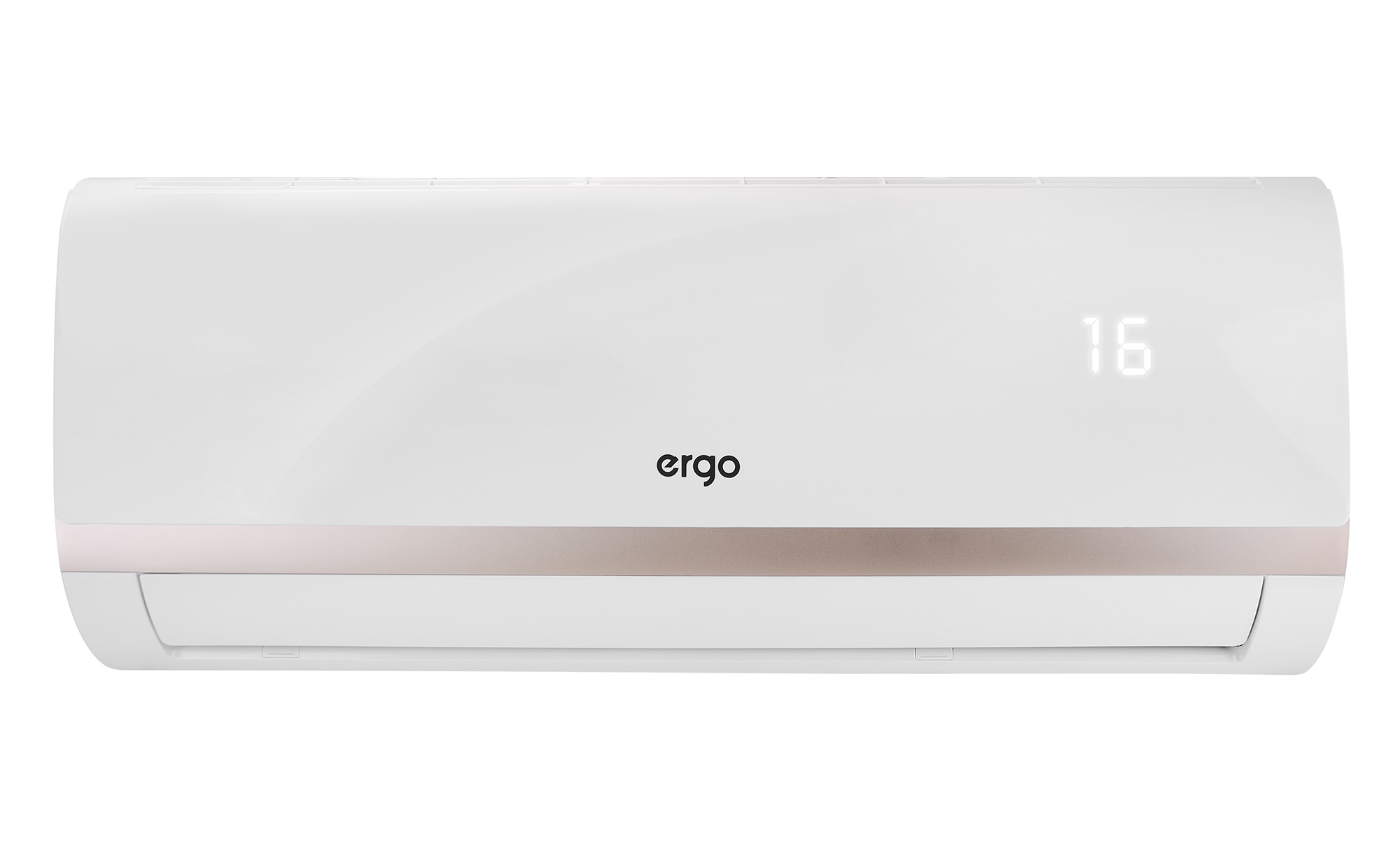

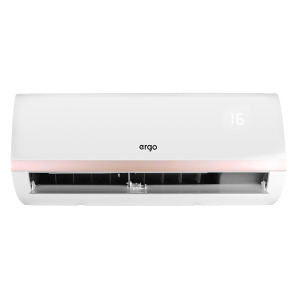

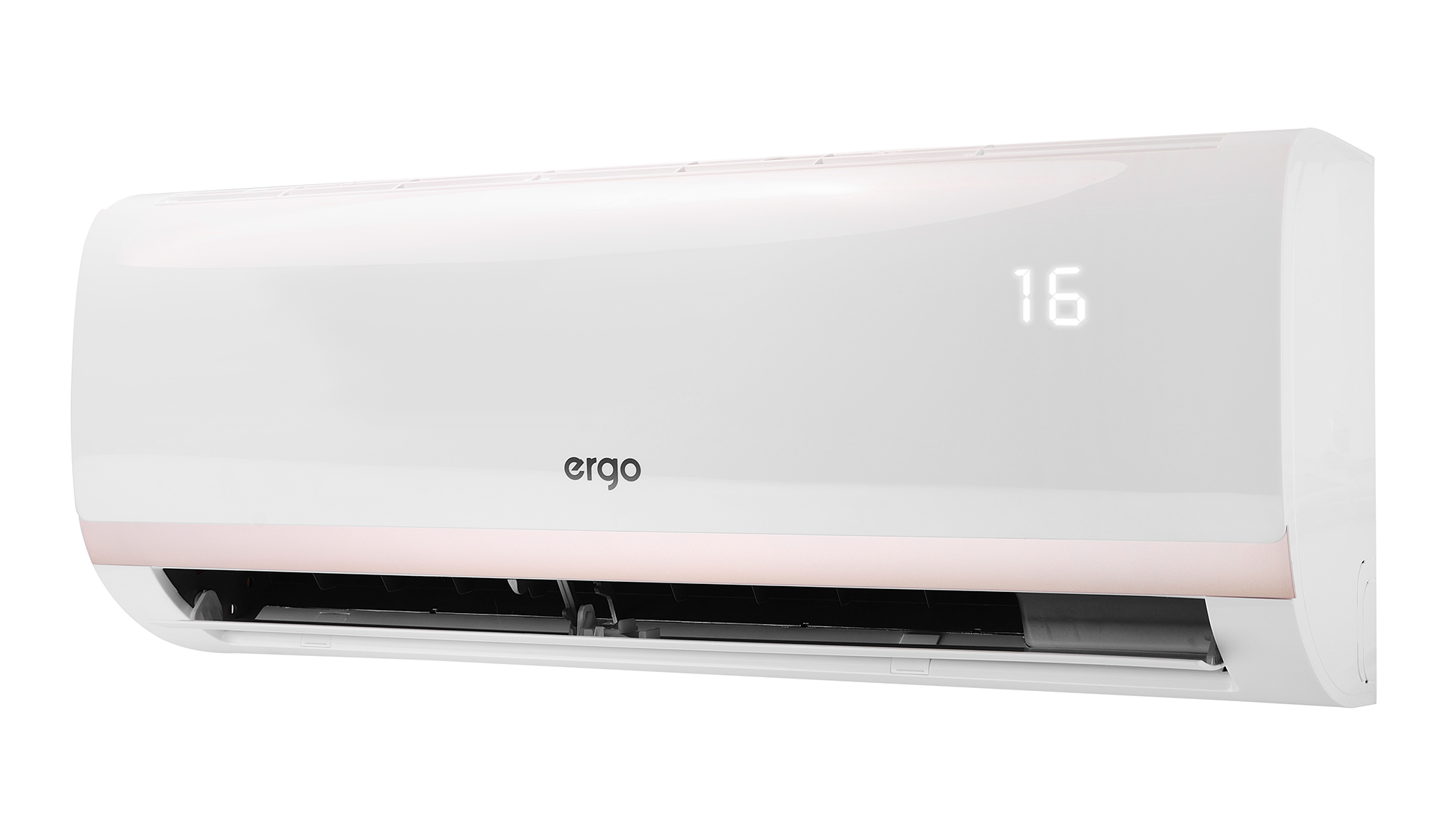

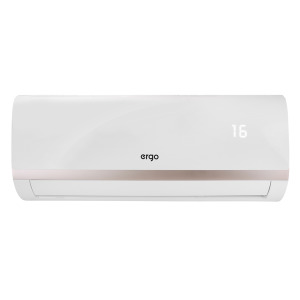

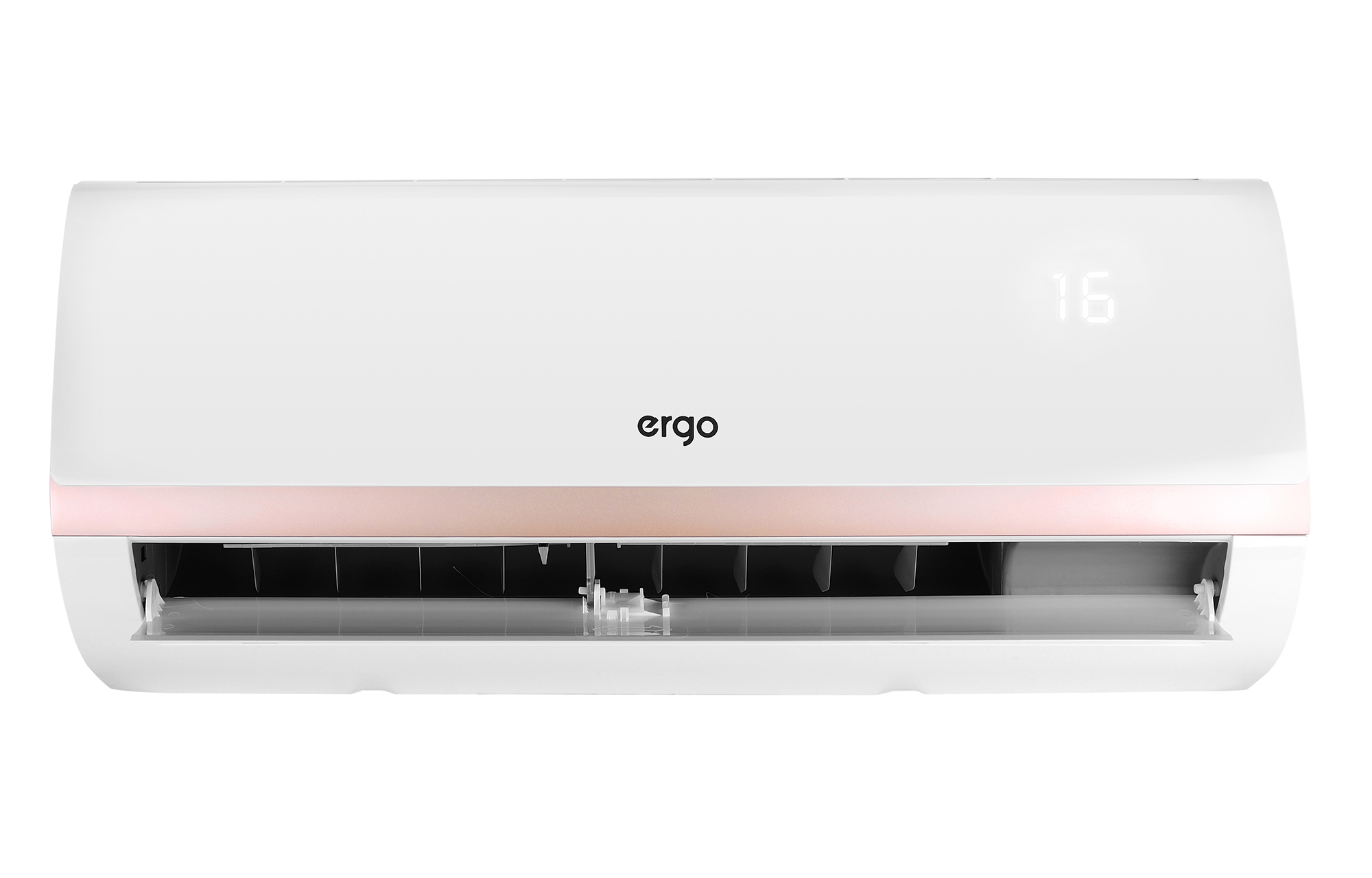

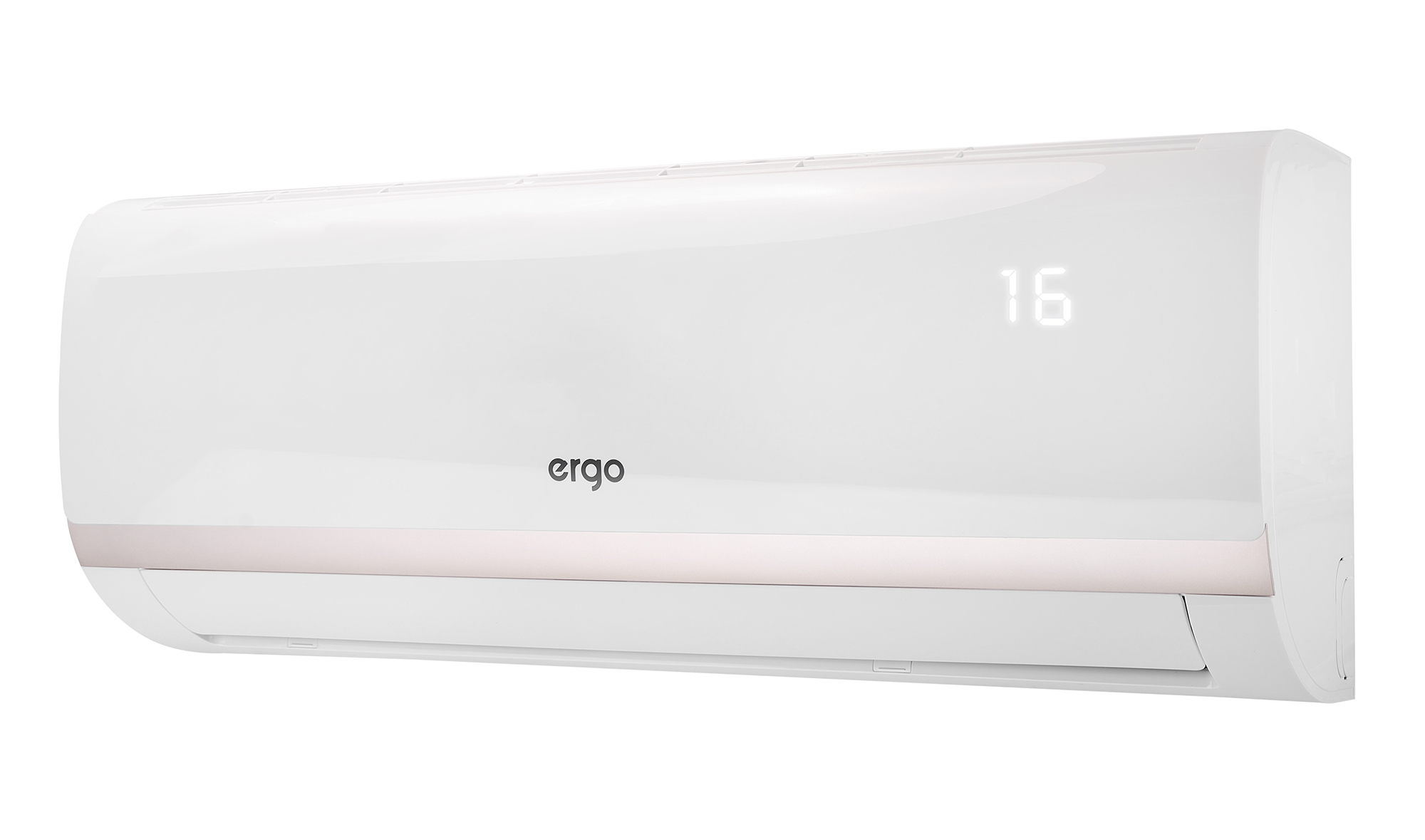

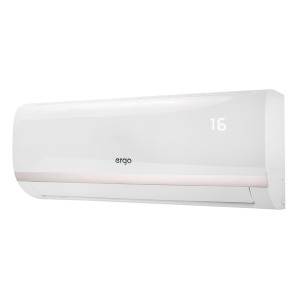

Indoor block dimensions (H x W x D), mm 805x194x285 (х2)
Indoor unit in packing (W x D x H), мм 870x270x360 (х2)

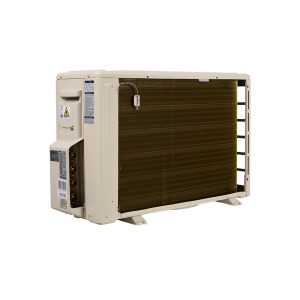

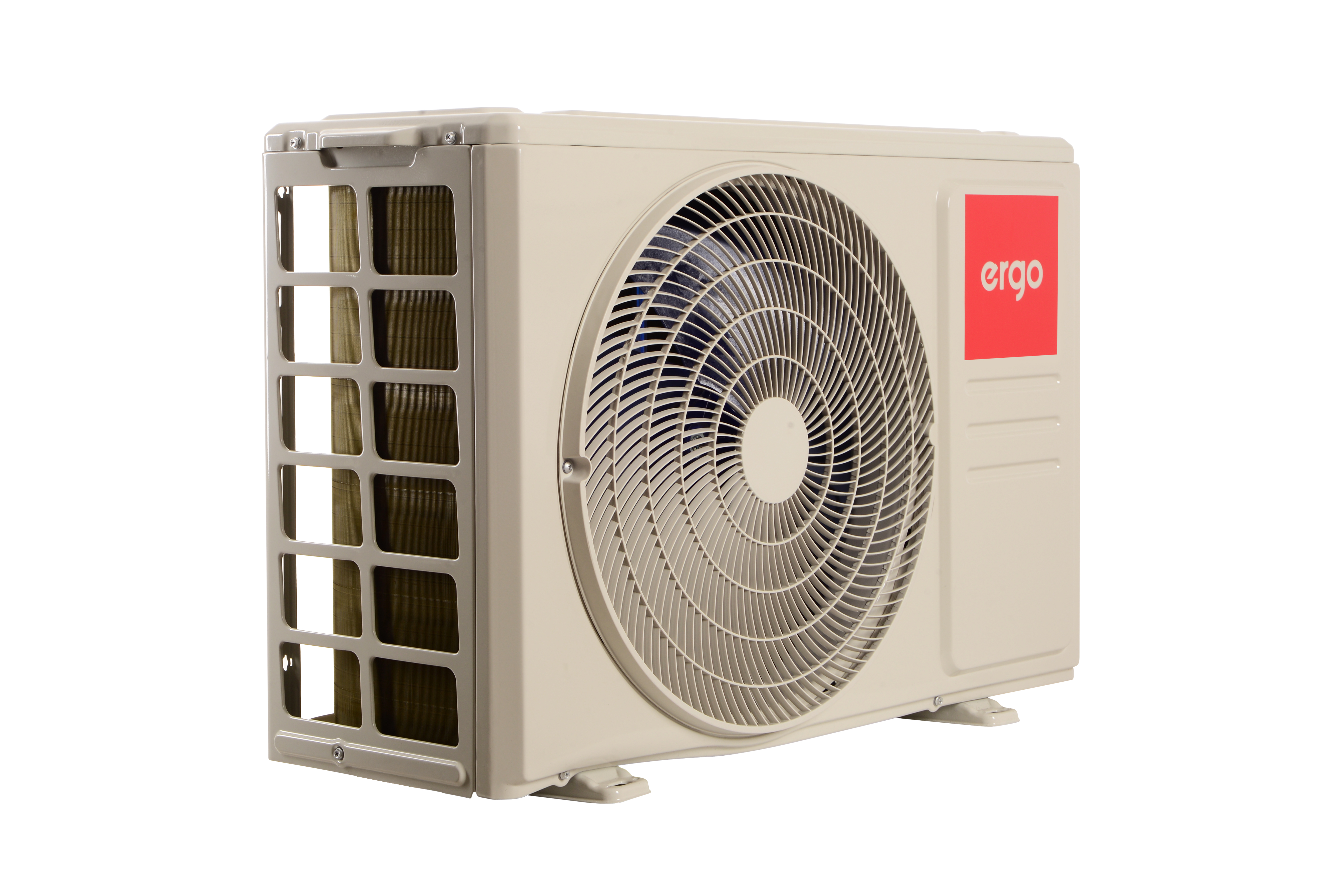

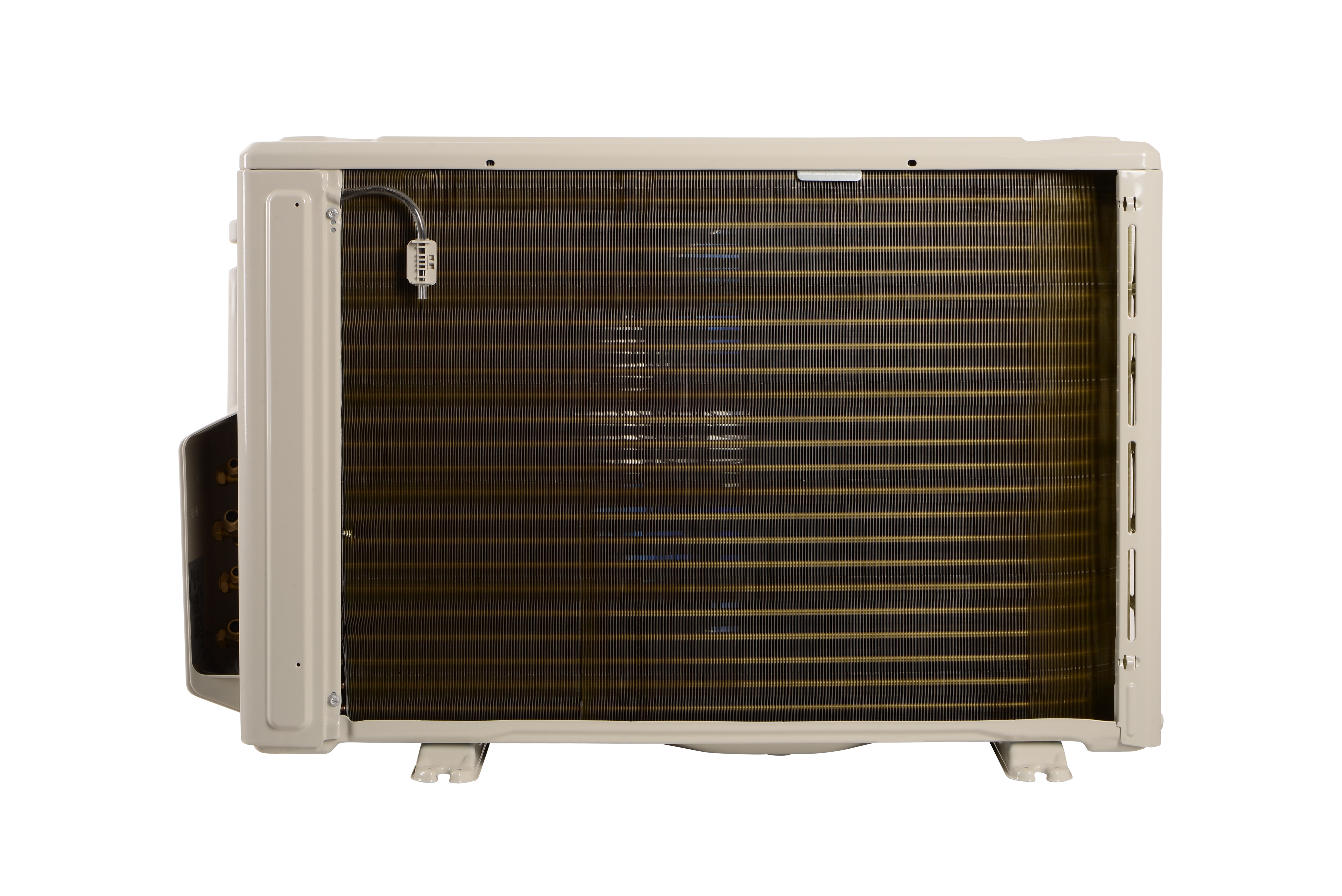

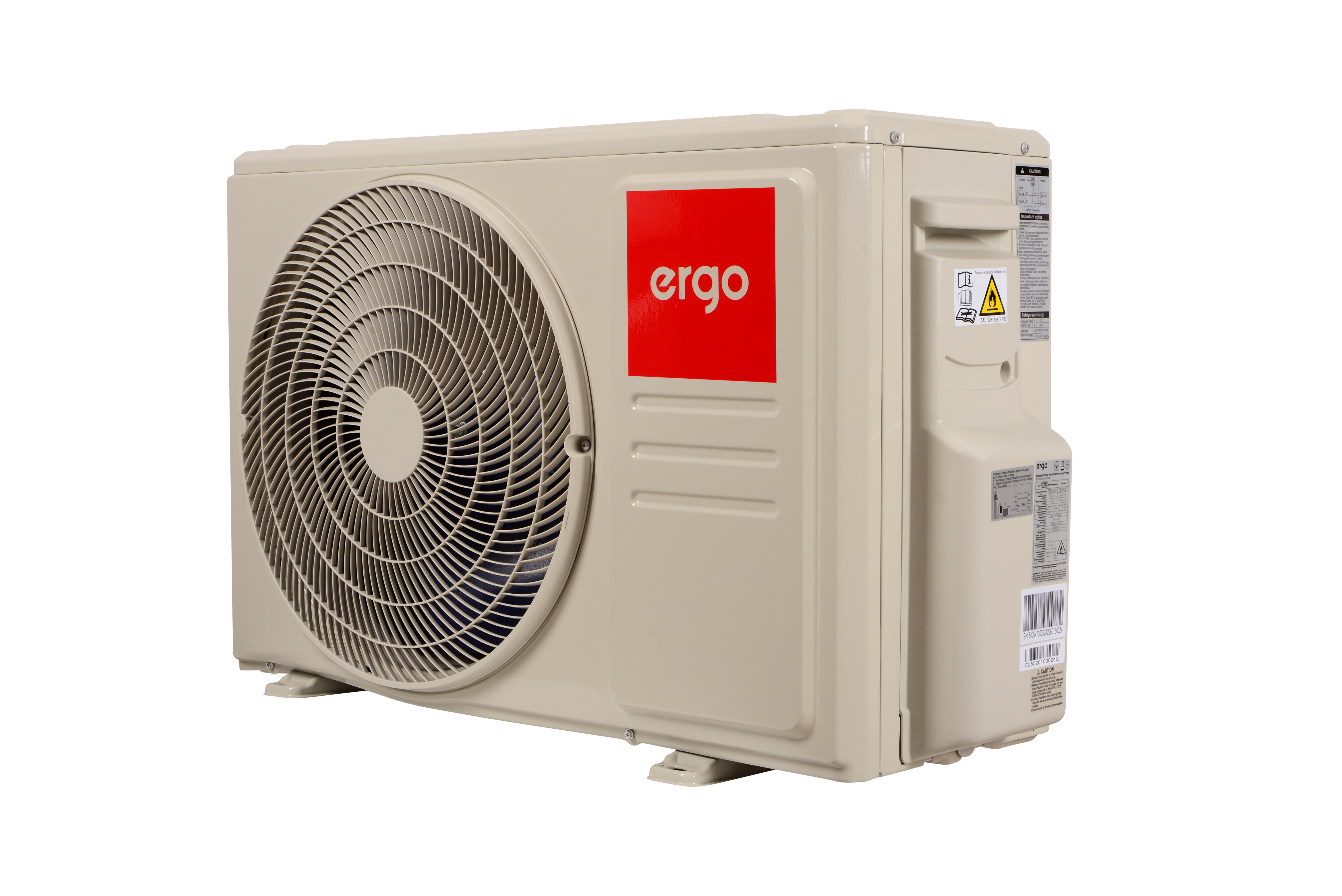

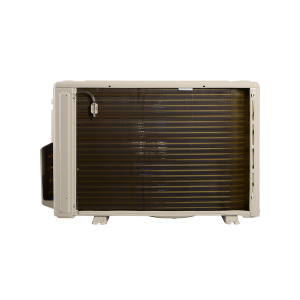

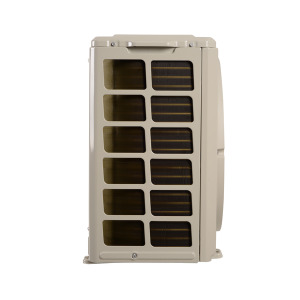

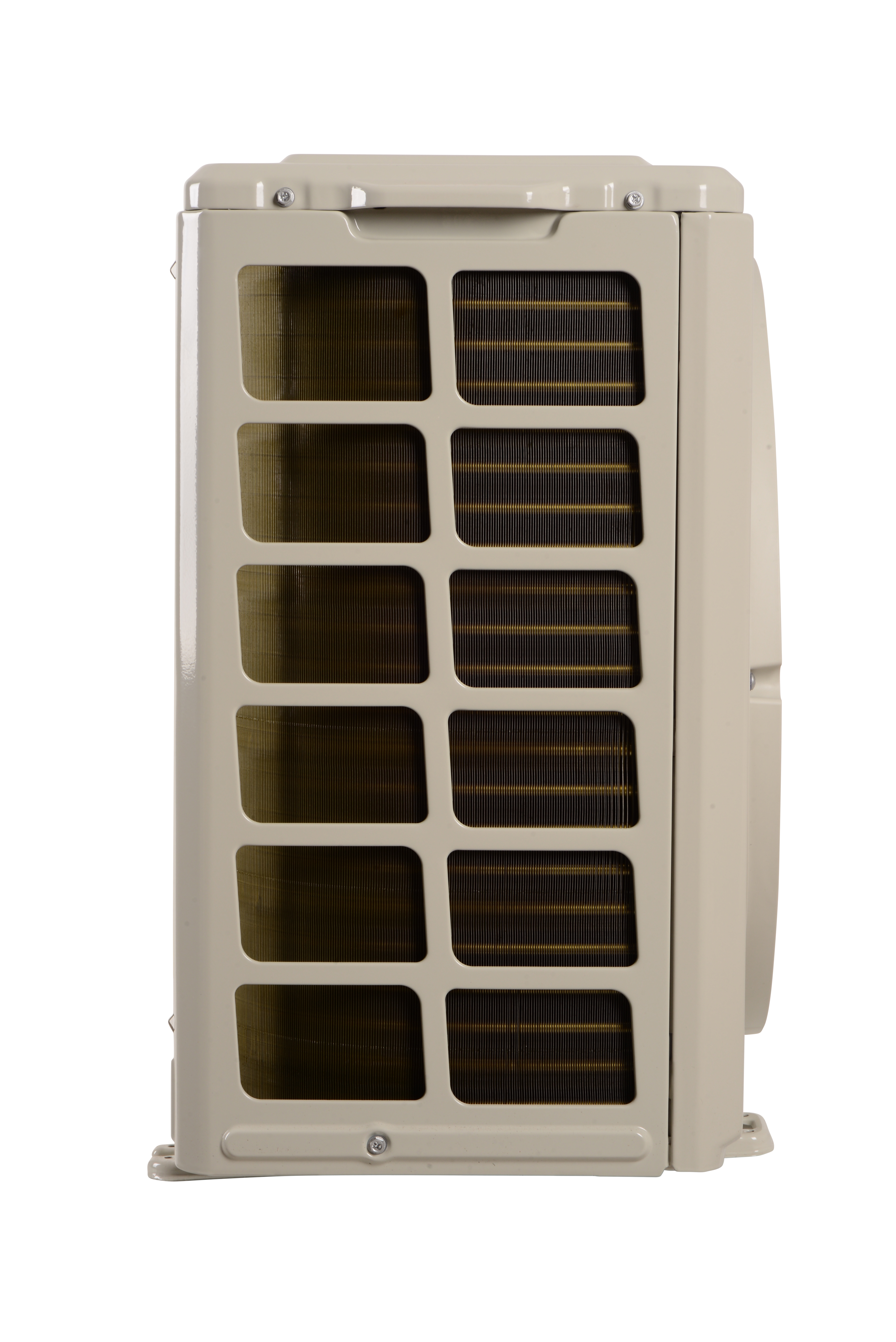

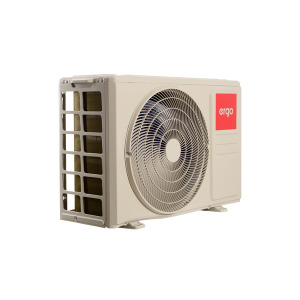

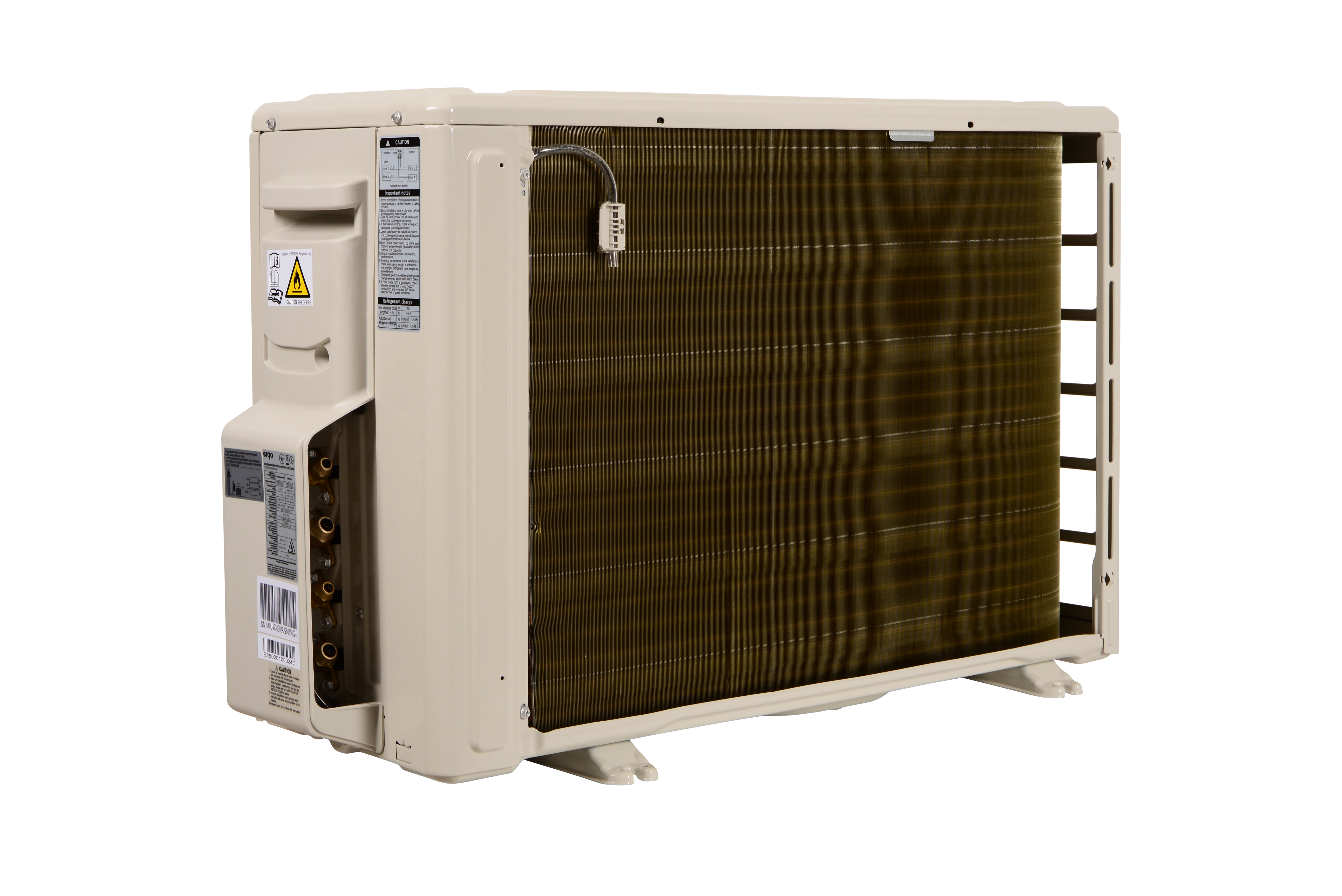

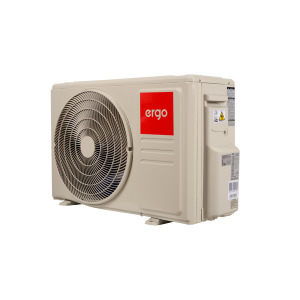

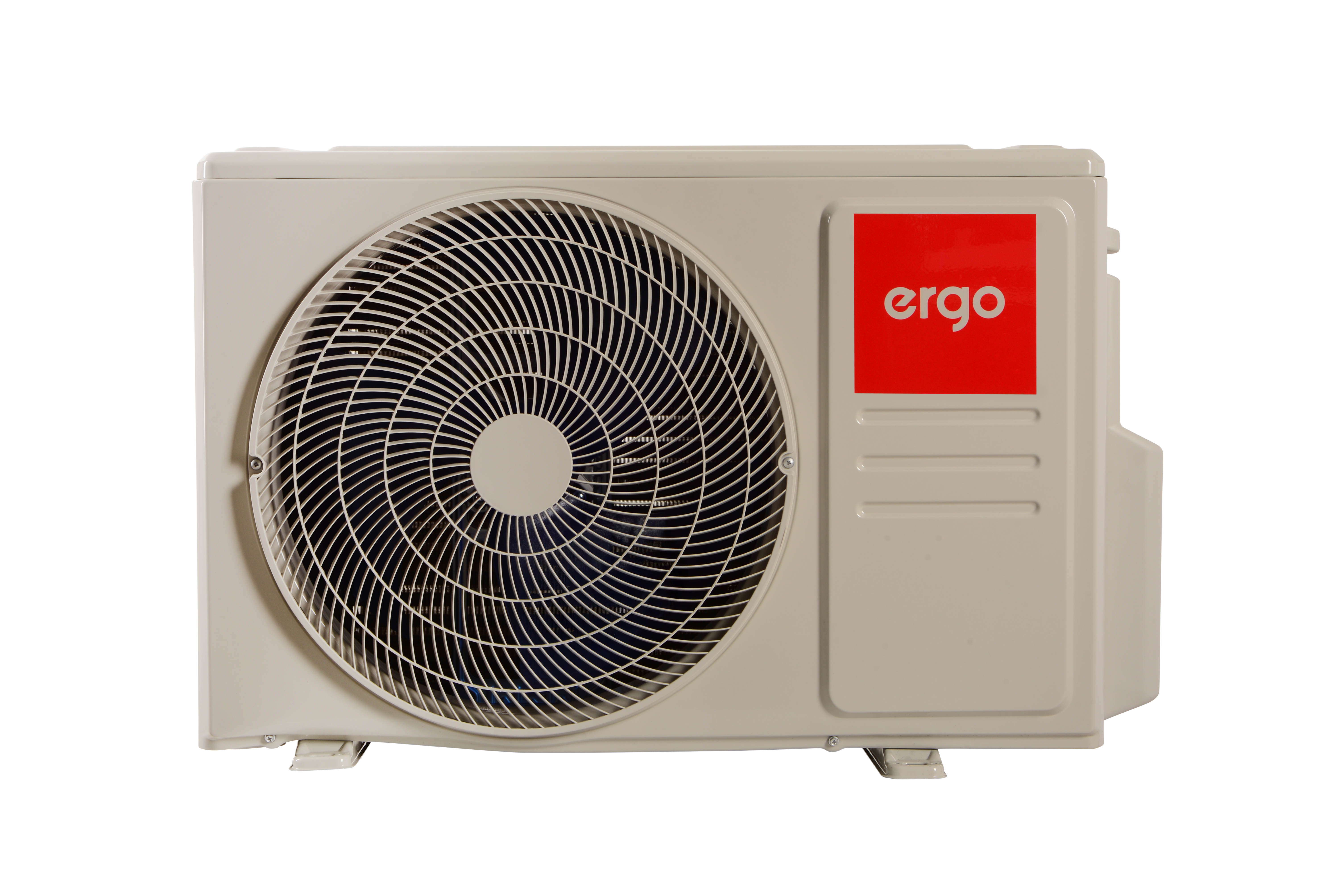

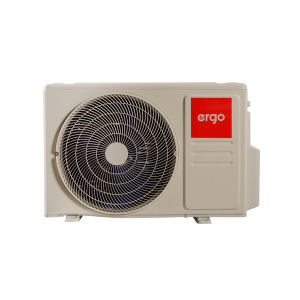

External unit (W x D x H), mm 805x330x554
External unit in the package (W x D x H), mm 915x370x615
Weight of the indoor unit NETTO, kg 7.6 (х2)
Weight of the indoor unit GROSS, kg 9.7 (х2)
Weight of the external unit NETTO, kg 35
Weight of the external unit GROSS, kg 38

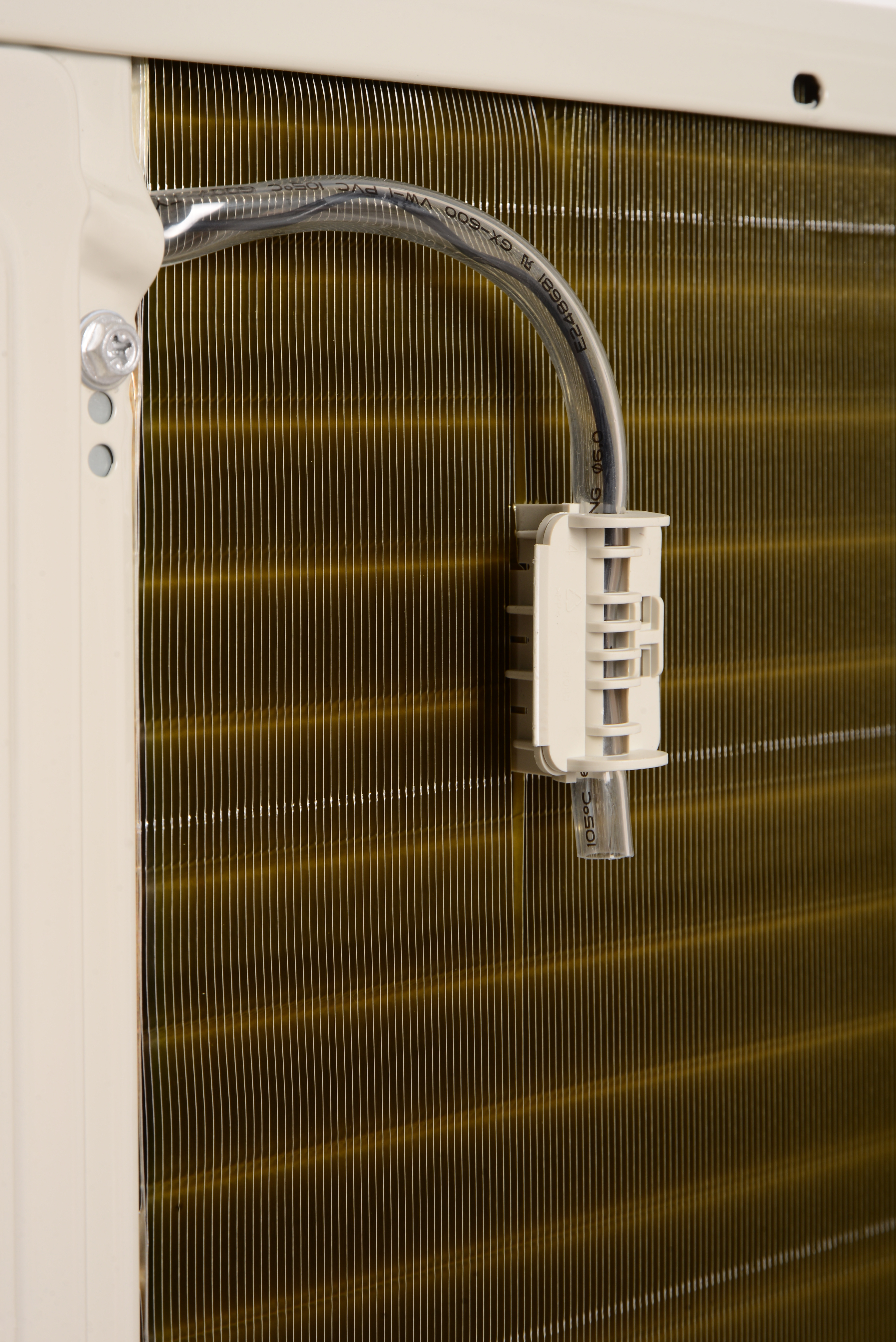

Equipment Remote control, set of 2xAAA batteries, charcoal filter x1, operating instructions, warranty card, mounting plate (fixed on the indoor unit), a set of fasteners, drainage nozzle for the crankcase of the outdoor unit.
Manufacturer country China
Warranty 36 months
Barcode 6900070758051 (внутрішній блок) / 690070758402 (зовнішній блок)
Characteristics for installers
Connecting the air conditioner to the electrical supply From the side of the indoor unit
TM of the compressor manufacturer GMCC
Type of refrigerant R32
Refueling with refrigerant, g 1250
Design pressure (inlet / outlet) 1.7 / 4.3

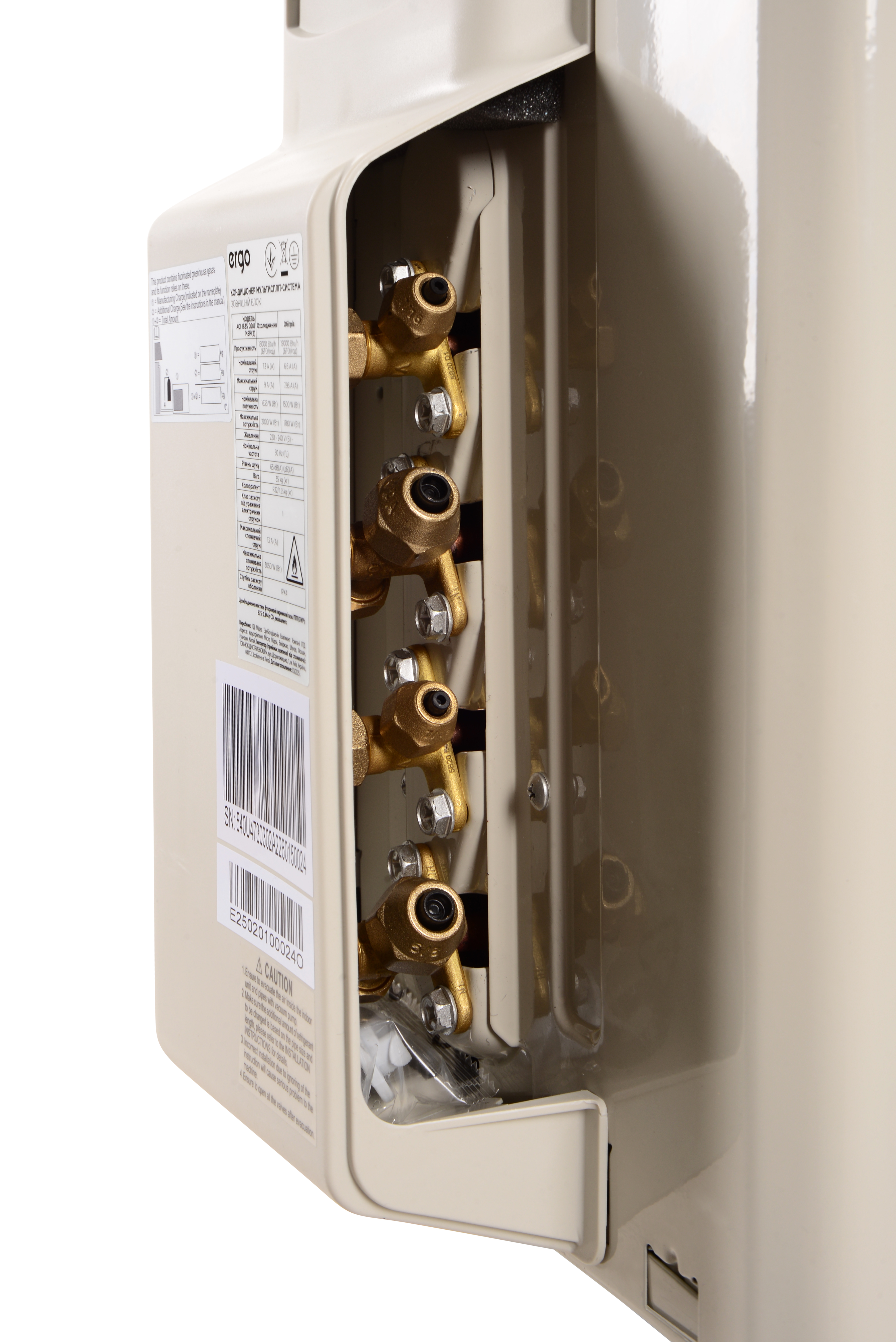

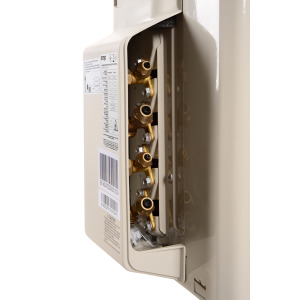

Gas pipe, mm (inch) 2 х 9.52 (3/8)
Liquid pipe, mm (inch) 2 х 6.35 (1/4)
Drainage Pipe, mm (inch) 16,0
Electrical interconnection, x mm sq 5 × 1.5 (х2)
Maximum line length, m 40m (for 2 blocks) / 25m (for one block)
Maximum line height difference, m 15m (between indoor and outdoor units) / 10m (between indoor units)
3604051.pdf (5.17 мб) User manual ERGO ERGO ACI 1835 ODU MSH(2) + ACI 0935 IDU MSW W х 2
