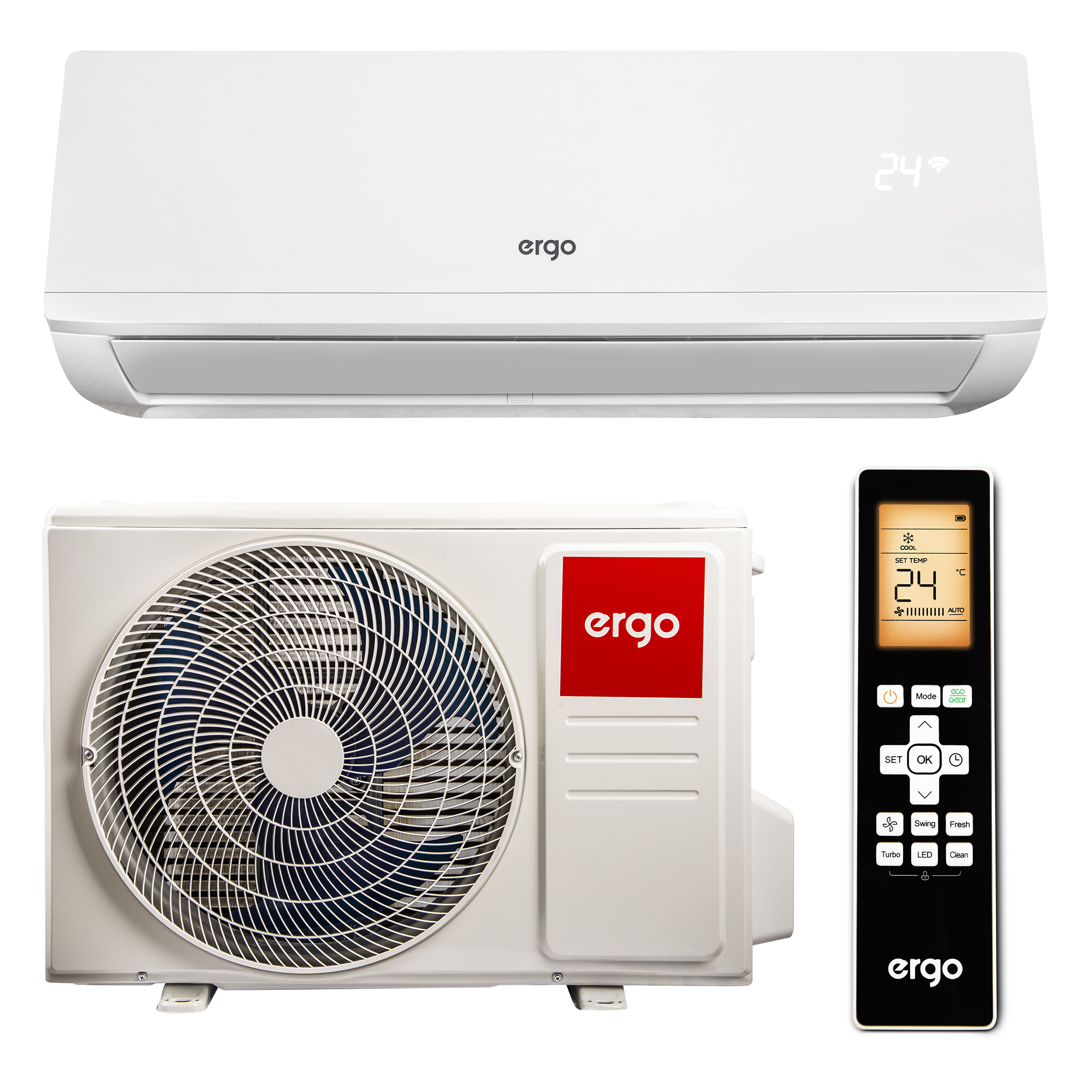

Air conditioner type |
Split-system |
|

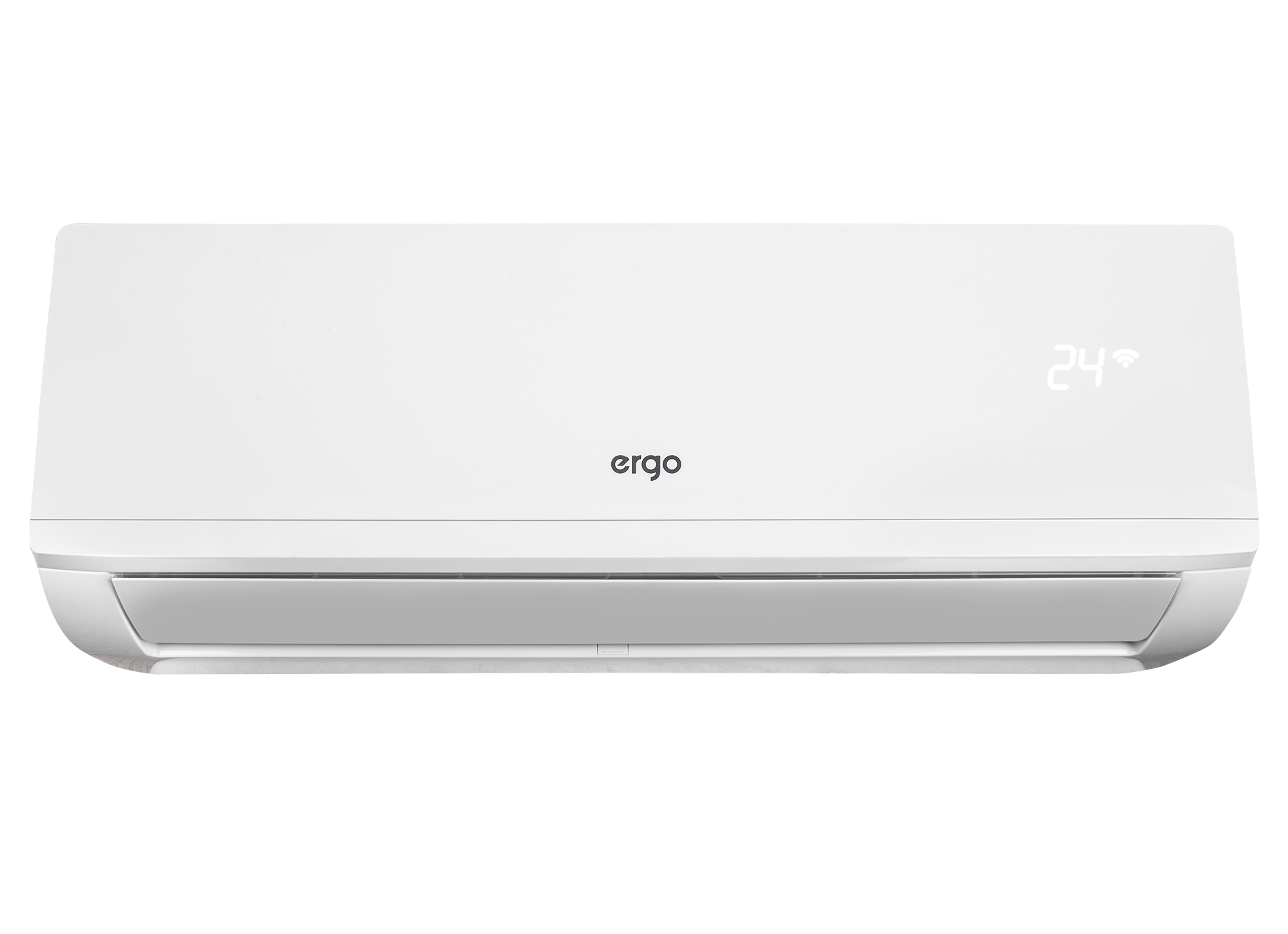

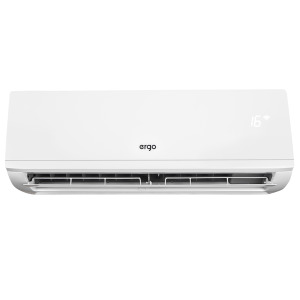

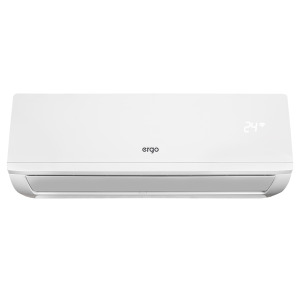

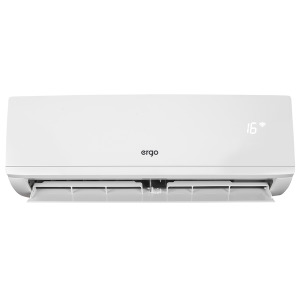

Indoor units type |
Wall |
|
TM |
ERGO |
|
Series |
ADVANCE plus |
|
Model |
ERGO ACI 1255 SWН W |
|
Productivity (cooling/heating), BTU/h |
12000 / 13000 |
|
Compressor control |
INVERTER |
|
Recommended room area (for cooling mode) |
26...35 |
|
Cooling power, W |
3500 |
|
Heater power, W |
2800 |
|
Energy efficiency class (cooling) |
A++ |
|
Energy efficiency class (heating) |
A+ |
|
Cooling energy efficiency ratio SEER |
6,4 |
|
Heating energy efficiency ratio S.C.O.P |
4.1 |
|
Cooling energy efficiency ratio EER |
3.0 |
|
Heating energy efficiency ratio COP |
3.6 |
|
Annual energy consumption (cooling), kwh/year |
182 |
|
Annual energy consumption (heating), kwh / year |
1123 |
|
Indoor sound power (max / w / min / silent), dB(A) |
56 |
|
Outdoor sound power, (max), dB(A) |
64 |
|
Indoor block noise level (max / w / min / silent), dB(A) |
40.5/37.5/24/20 |
|
Sound pressure, outdoor unit, (max), dB(A) |
54.5 |
|
Dehydration, l/h |
1.2 |
|
Air flow, indoor unit (max / avg / min) |
570 / 490 / 450 |
|
Indoor fan speed, cooling, rpm |
1100 / 950 / 700 |
|
Indoor fan speed, heating, rpm |
1100 / 950 / 700 |
|
Operating temperature range for indoor unit (cooling / heating), °C |
+16…+32 / 0…+30 |
|
Operating temperature range for outdoor unit (cooling / heating), °C |
-15…+50 / -20…+24 |
|
Voltage supply |
187-265 В / 50 Гц /1 ф |
|
Rated cooling capacity, W |
1168 |
|
Rated power consumption heating, W |
1058 |
|
Rated current cooling, A |
5.8 |
|
Rated current heating, A |
4.8 |
|
Maximum power consumption, W |
2150 |
|
Maximal current consumption, A |
9.6 |
|
Degree of housing protection indoor unit |
IPХ0 |
|
Degree of housing protection outdoor unit |
IP24 |
|
Control via the Internet |
Yes |
|
TURBO cooling / heating mode |
Yes |
|
Ventilation |
Yes |
|
Heating |
Yes |
|
Air dryer |
Yes |
|
Automatic mode |
Yes |
|
Night mode |
Yes |
|
Auto restart function |
Yes |
|
Defrost system |
Yes |
|
The function of memorizing the angle of inclination of the louver |
Yes |
|
Self-diagnosis function |
Yes |
|
The function of monitoring the set temperature using the temperature sensor in the remote control |
FOLLOW ME |
|
Self-cleaning function |
Yes |
|

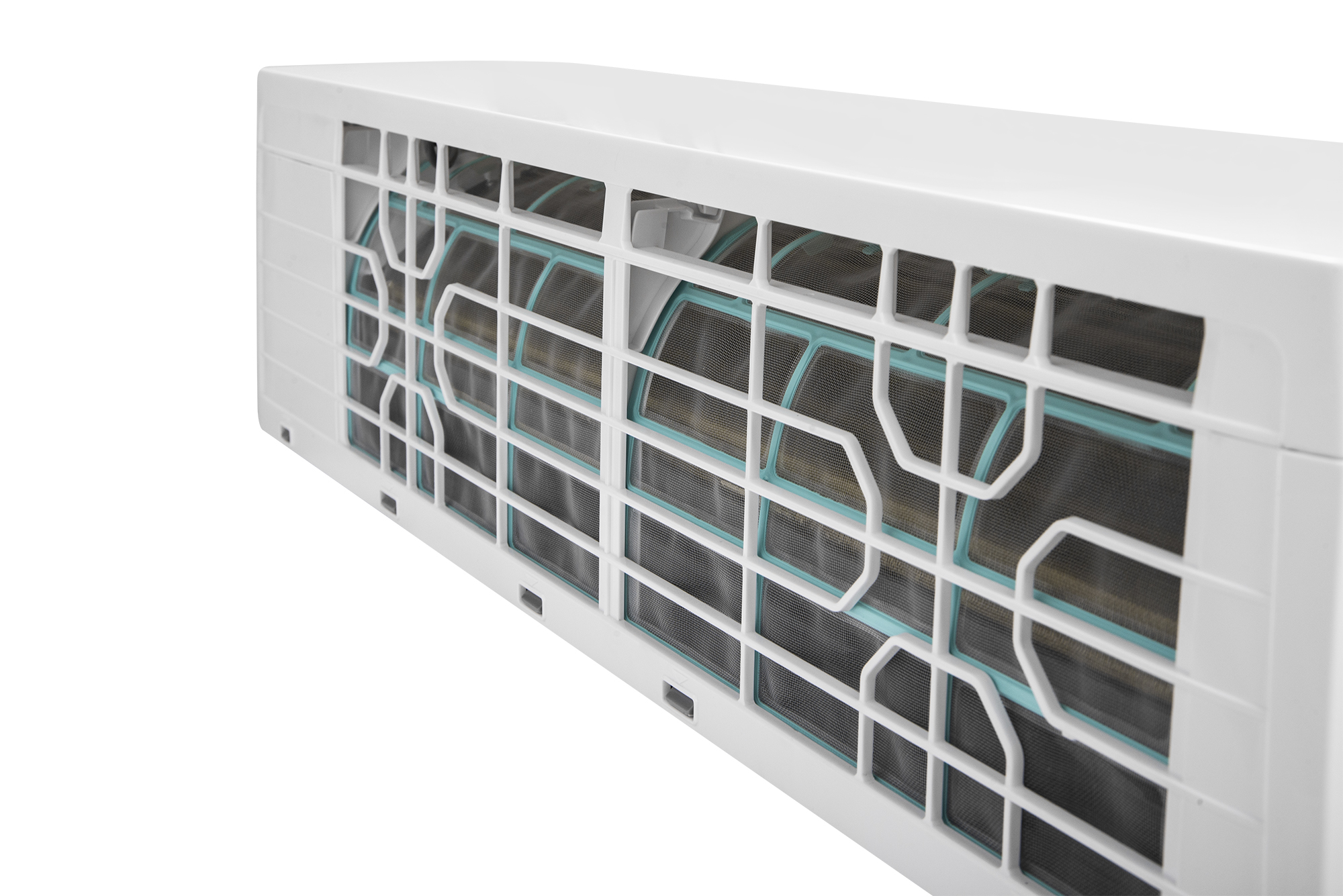

Anti-dust washable filter |
Yes |
|
Ionizer |
Yes |
|
Hydrophilic coating of heat exchanger plates |
Golden Fin coating |
|
On / Off timer |
24 h |
|

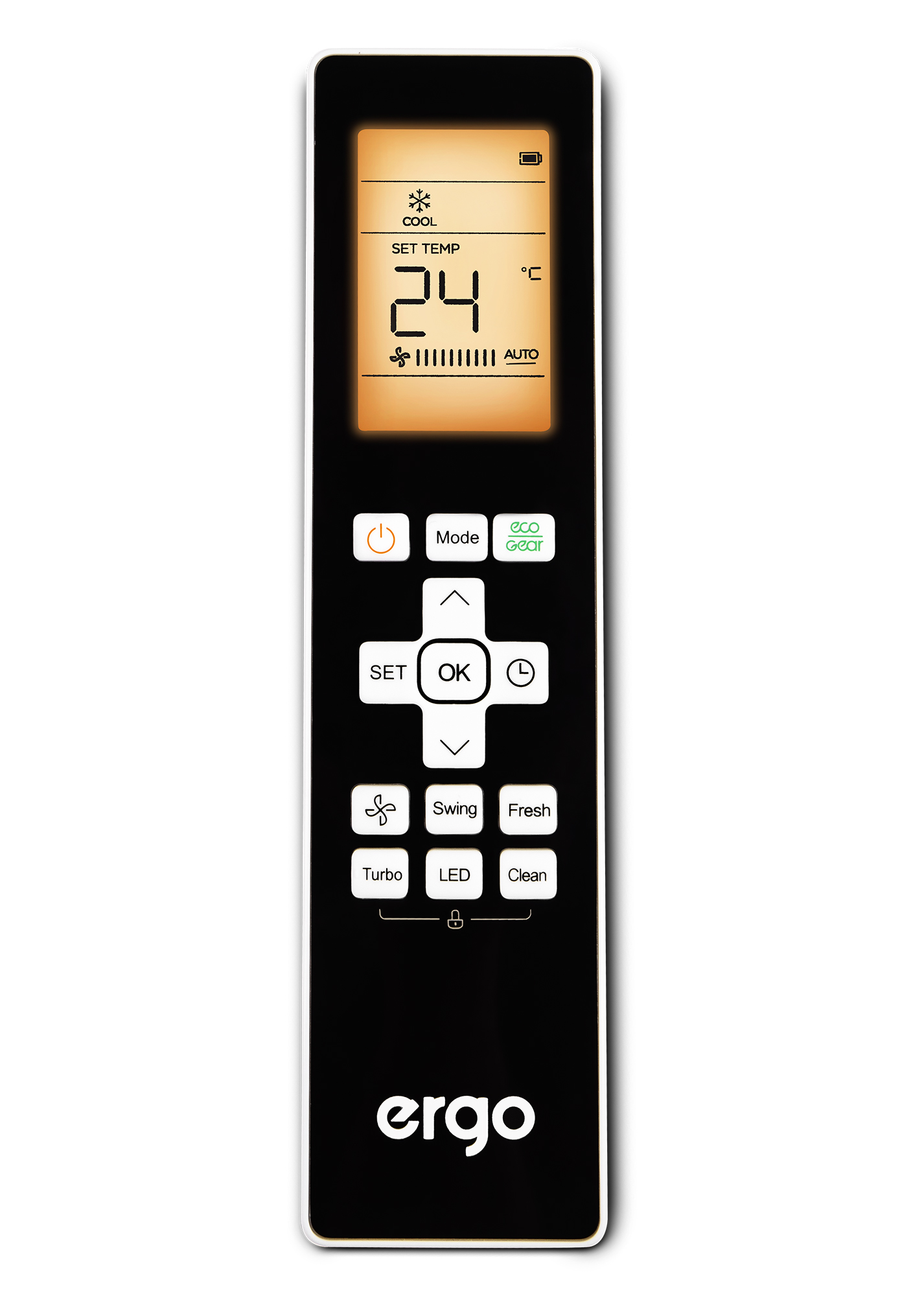

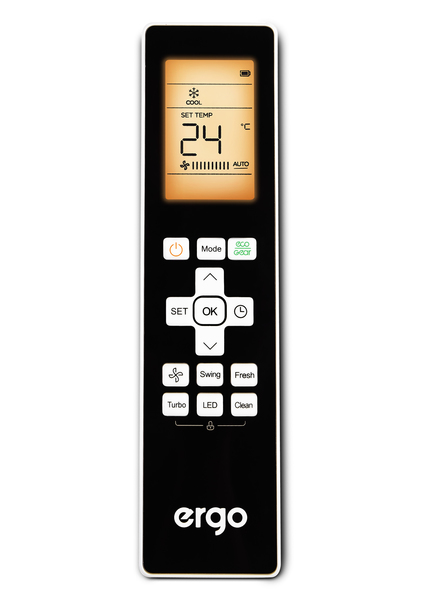

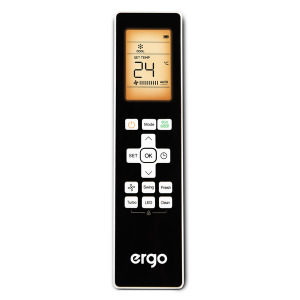

Remote control |
IR remote control with LCD |
|
Control of the air supply direction (up / down) |
from the remote control |
|
Control of the air supply direction (left / right) |
manual |
|
Temperature range setting, °C |
16 ... 30 |
|
Work at low external temperatures, °C |
до -20 |
|
Display of operating modes |
hidden LED |
|

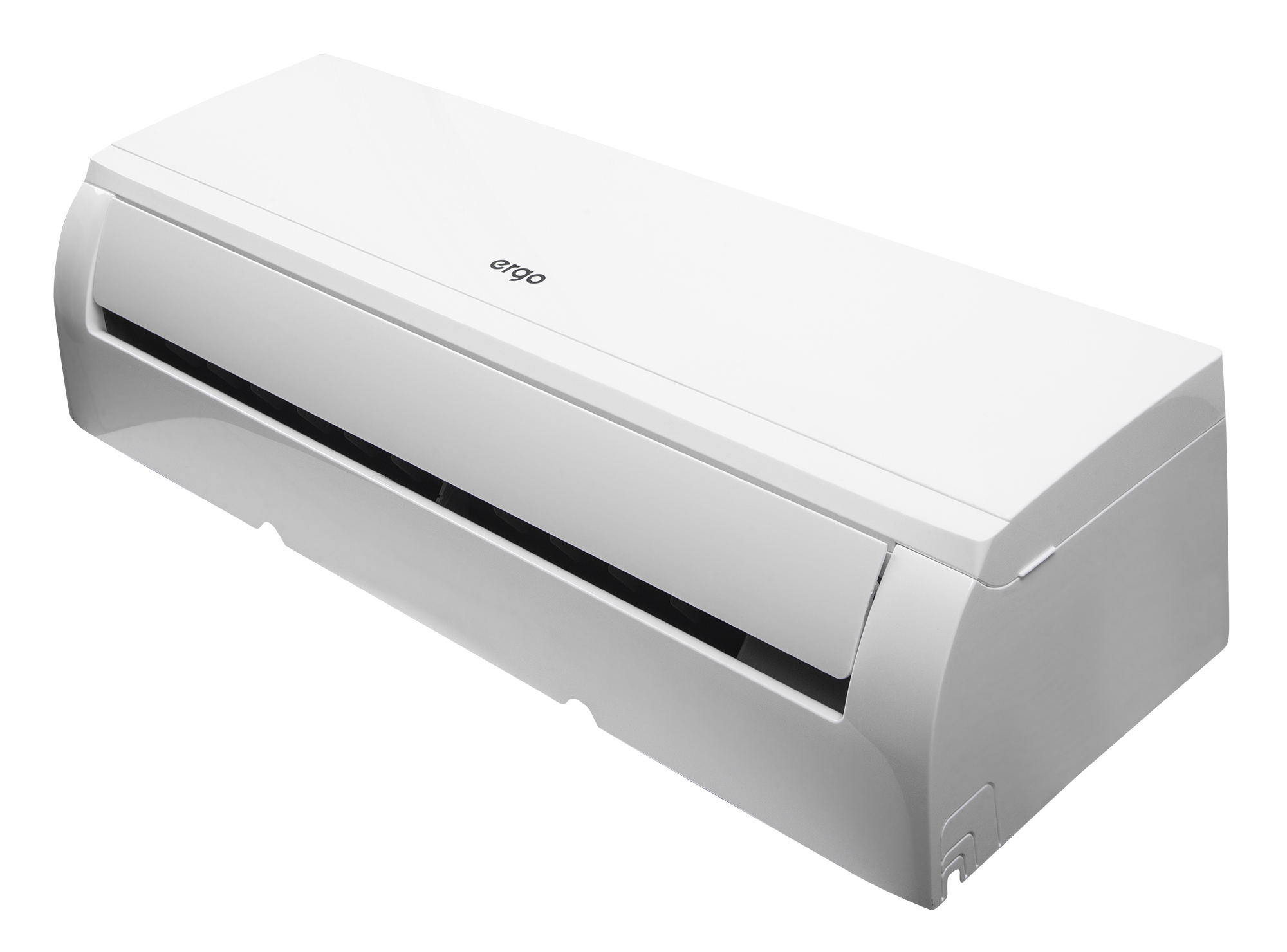

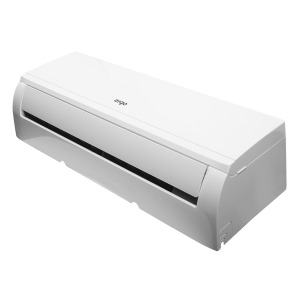

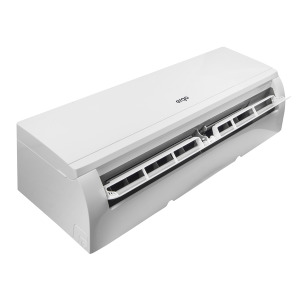

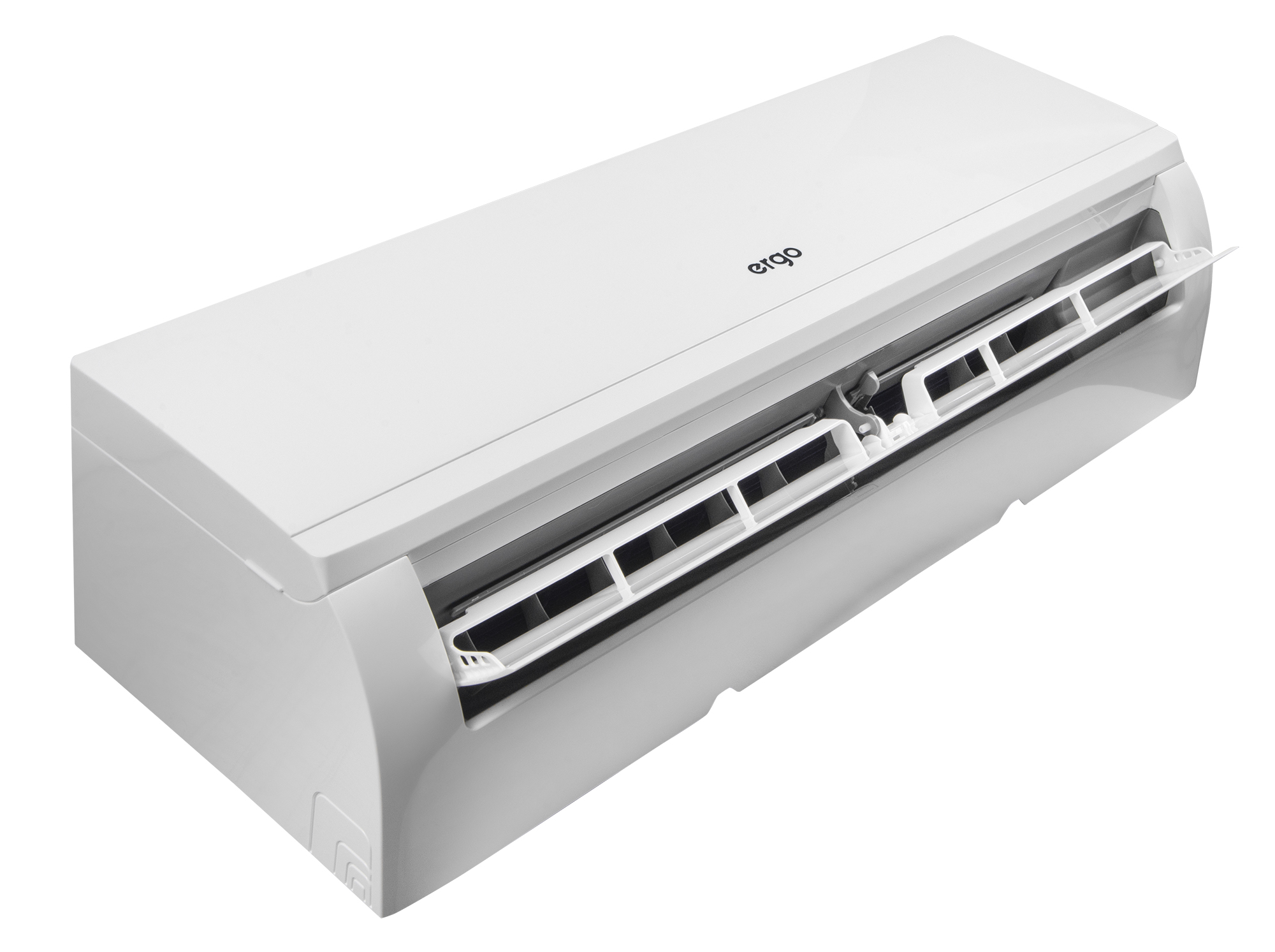

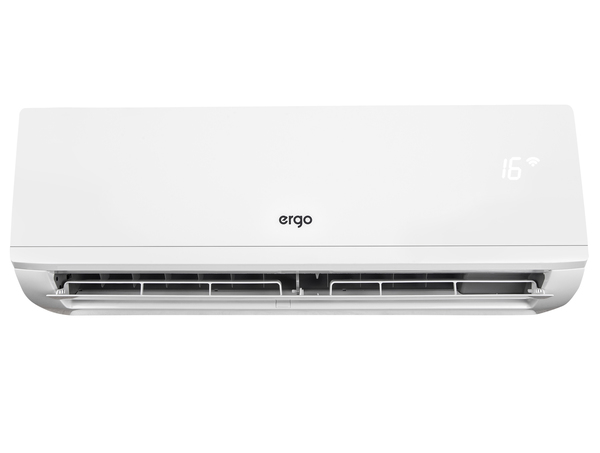

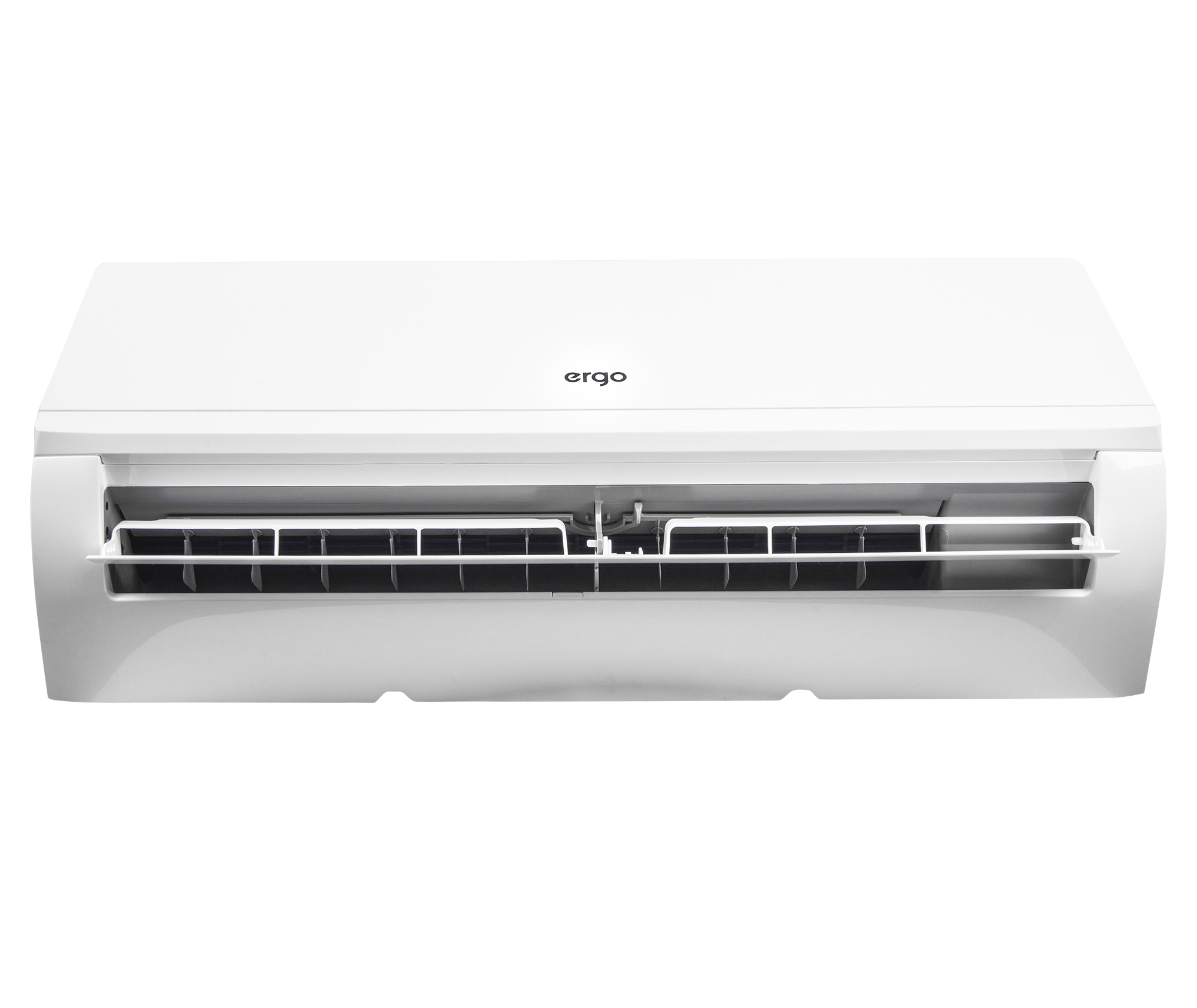

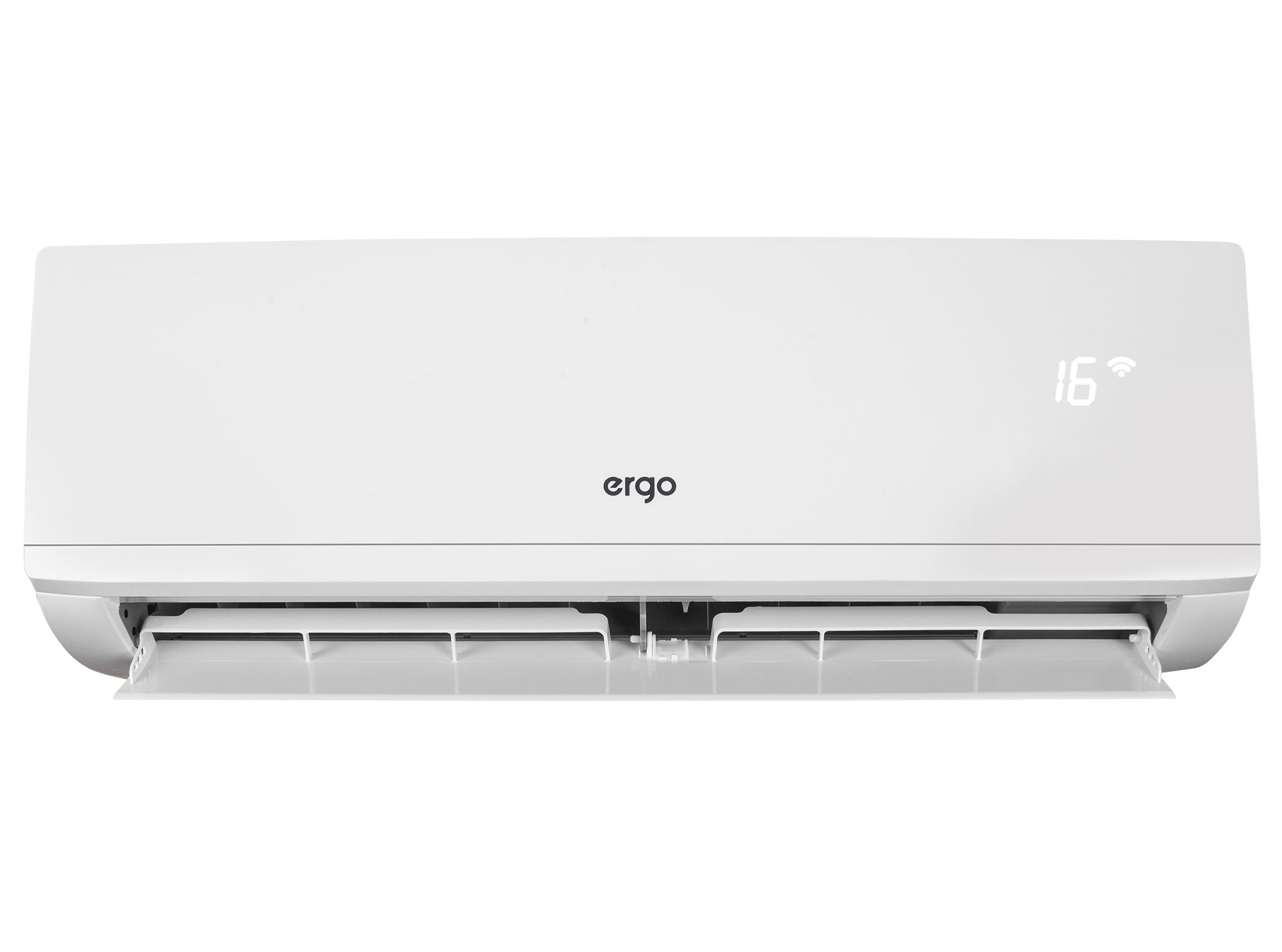

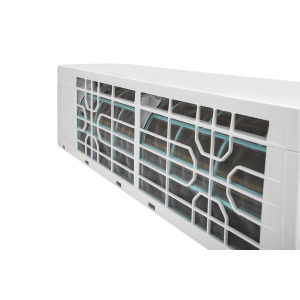

Indoor block dimensions (H x W x D), mm |
835x208x295 |
|
Indoor unit in packing (W x D x H), мм |
905x355x290 |
|

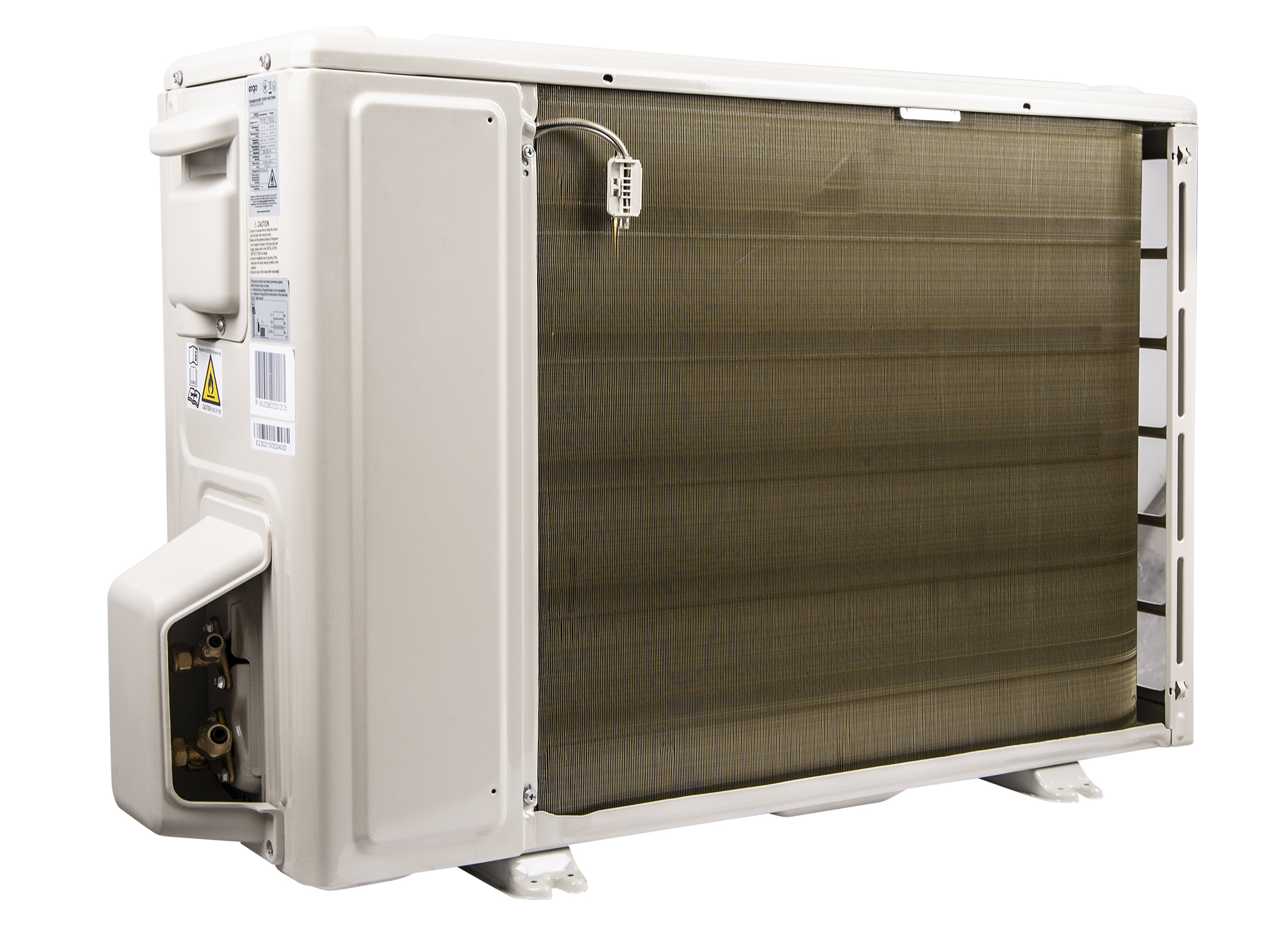

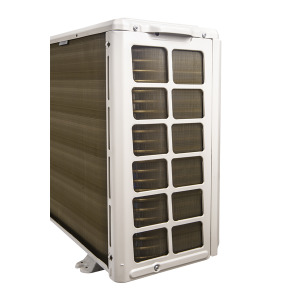

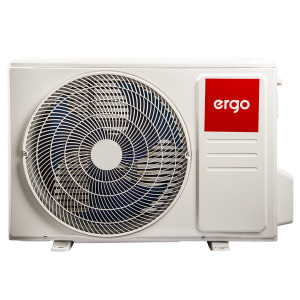

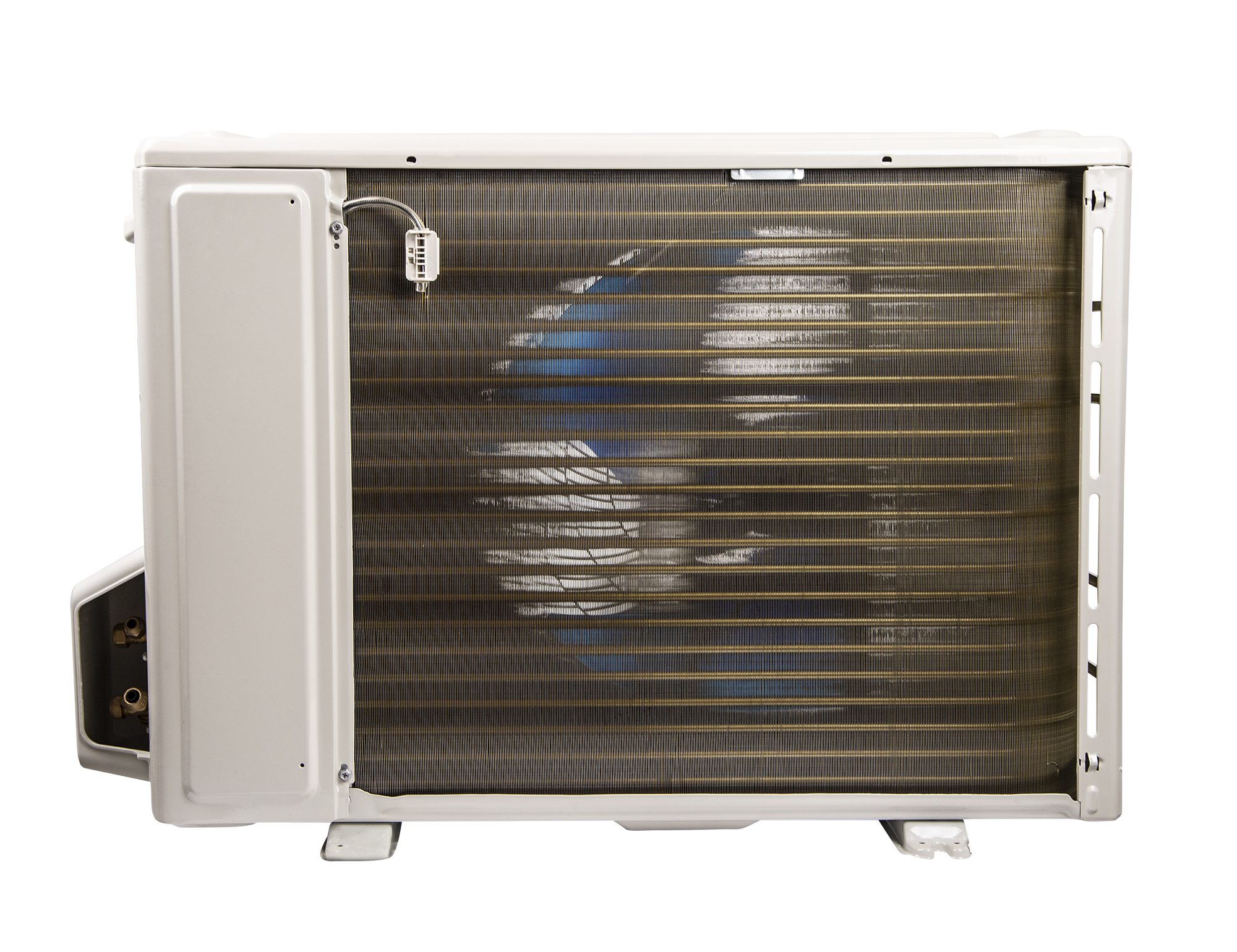

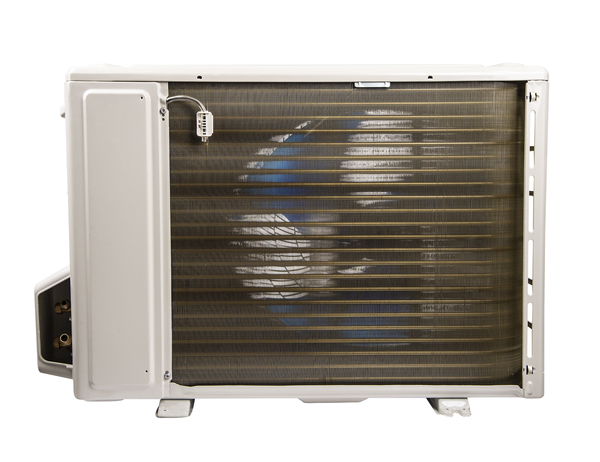

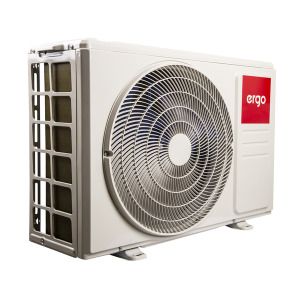

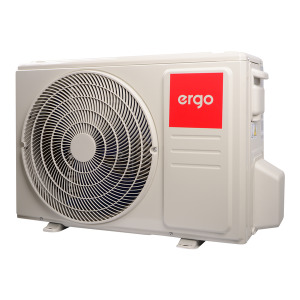

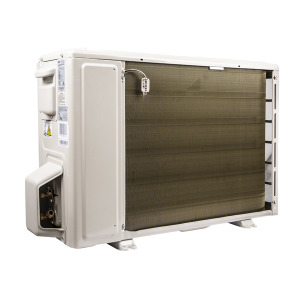

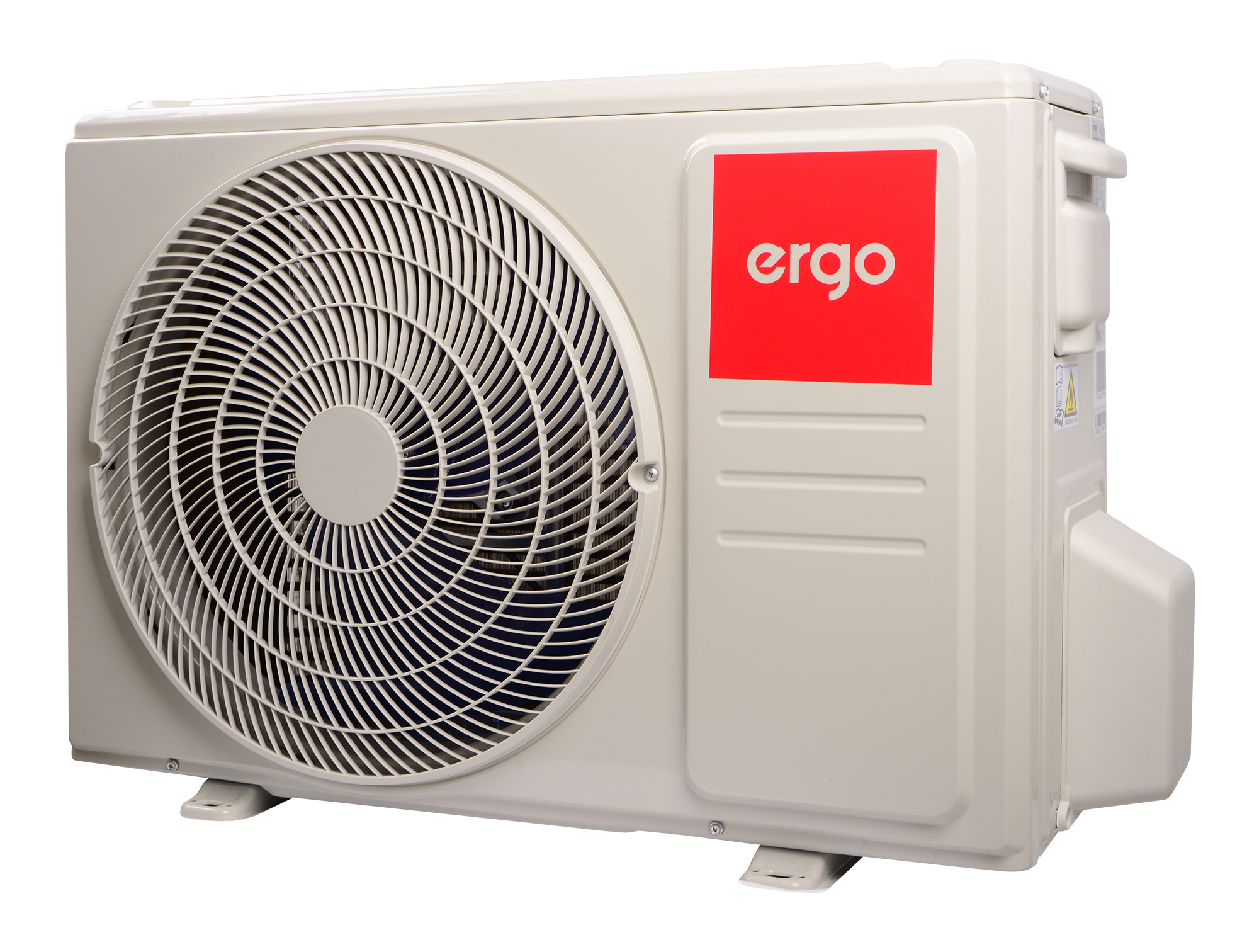

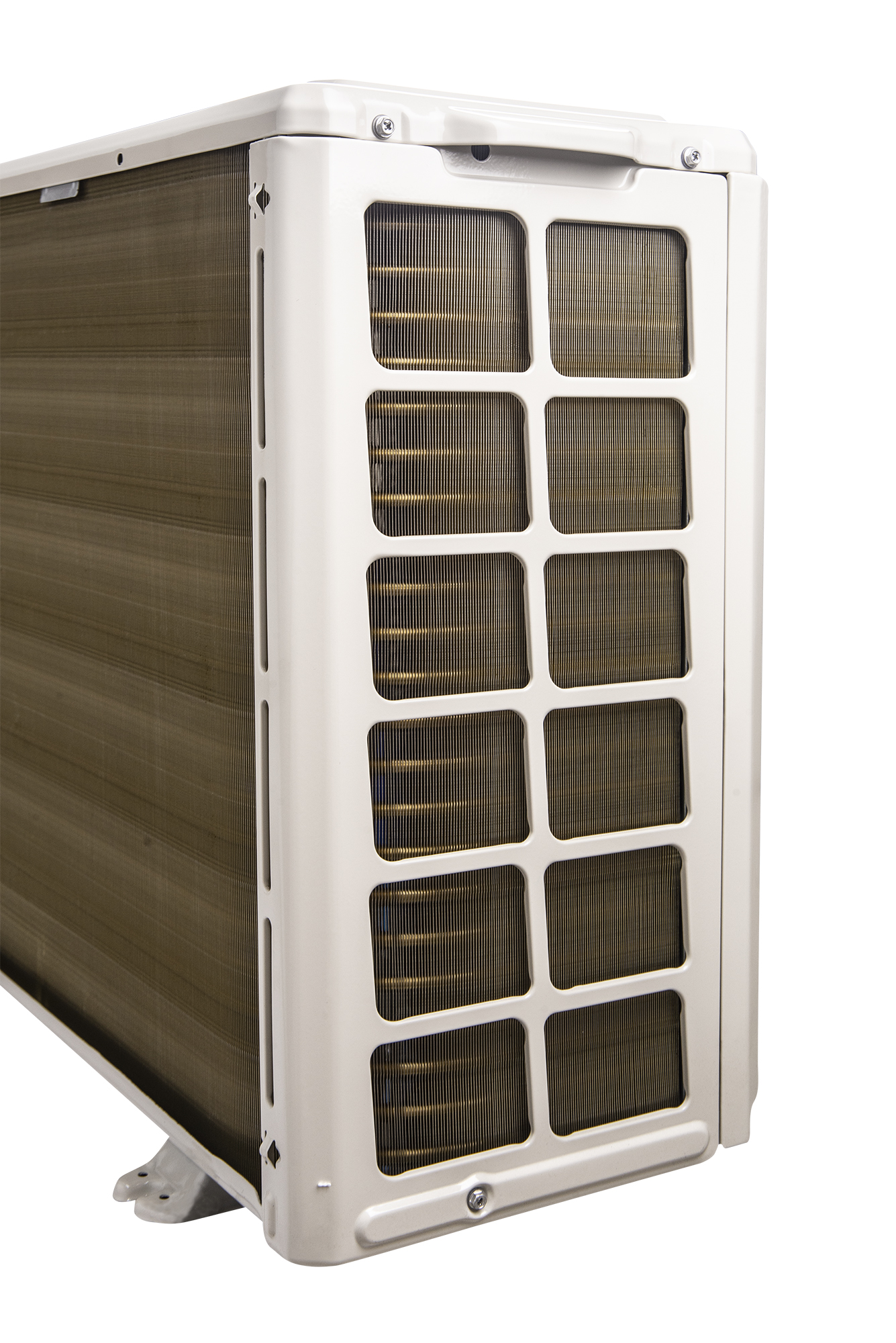

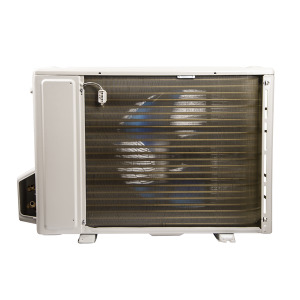

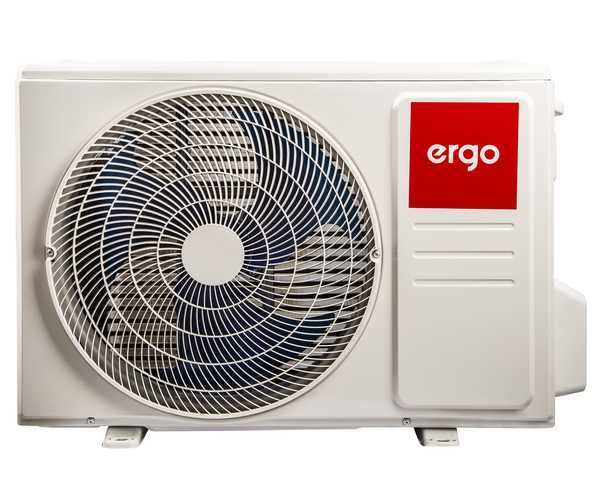

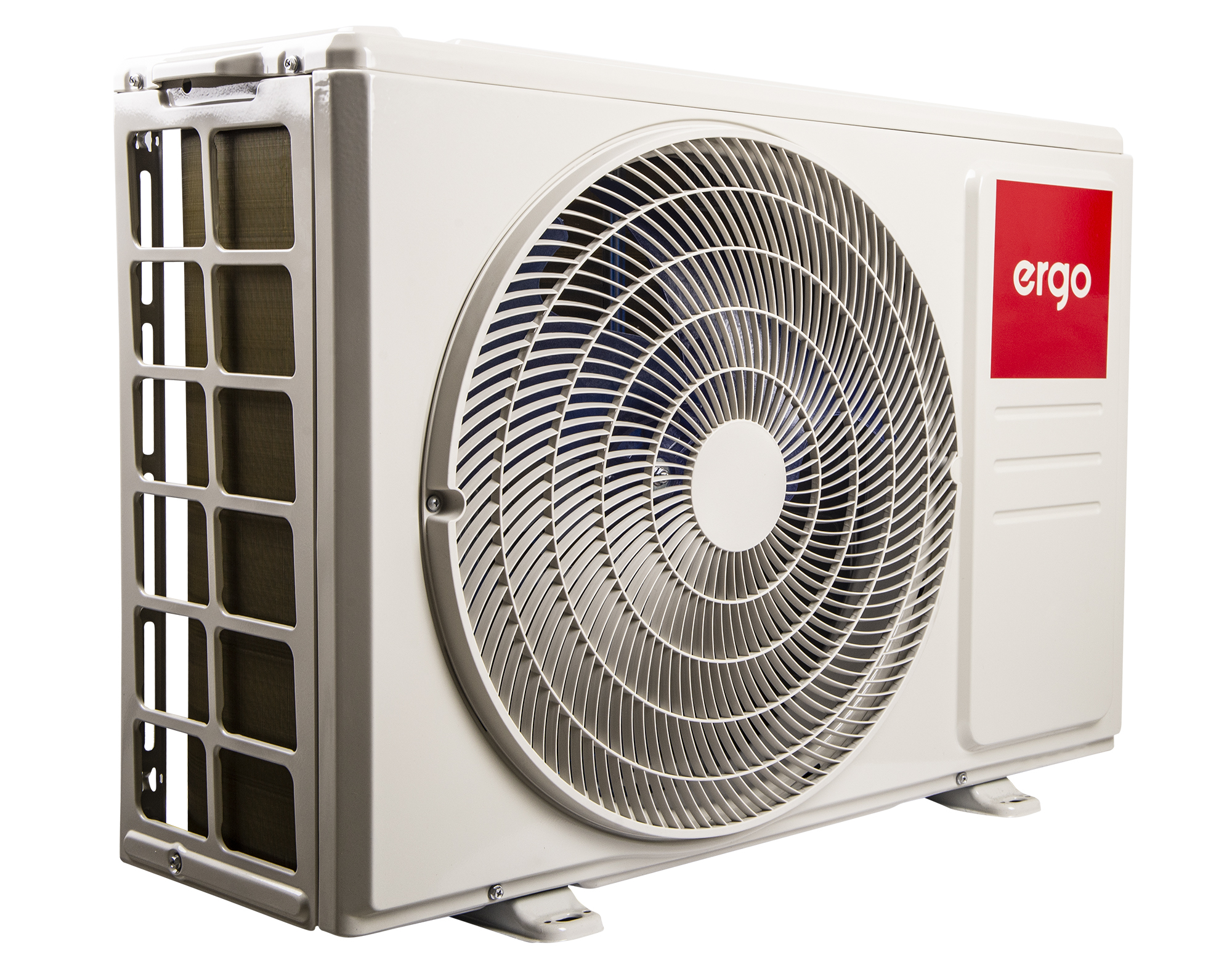

External unit (W x D x H), mm |
720x270x495 |
|
External unit in the package (W x D x H), mm |
835x300x540 |
|
Weight of the indoor unit NETTO, kg |
8.2 |
|
Weight of the indoor unit GROSS, kg |
10.9 |
|
Weight of the external unit NETTO, kg |
21 |
|
Weight of the external unit GROSS, kg |
22.8 |
|
Equipment |
Remote control, set of 2xAAA batteries, charcoal filter x1, operating instructions, warranty card, mounting plate (fixed on the indoor unit), a set of fasteners, drainage nozzle for the crankcase of the outdoor unit. |
|
Manufacturer country |
China |
|
Warranty |
36 months |
|
Barcode |
6900070617082 |
|
Connecting the air conditioner to the electrical supply |
From the side of the external unit |
|
TM of the compressor manufacturer |
GMCC |
|
Type of refrigerant |
R32 |
|
Refueling with refrigerant, g |
520 |
|
Design pressure (inlet / outlet) |
1.7 / 4.5 |
|
Gas pipe, mm (inch) |
9.52 (3/8) |
|
Liquid pipe, mm (inch) |
6.35 (1/4) |
|
Drainage Pipe, mm (inch) |
16,0 |
|
Electrical interconnection, x mm sq |
5×1.5 |
|
Maximum line length, m |
25 |
|
Maximum line height difference, m |
10 |
